100tpd To 3000tpd Rotary Kiln Cement Plant Making Machinery

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

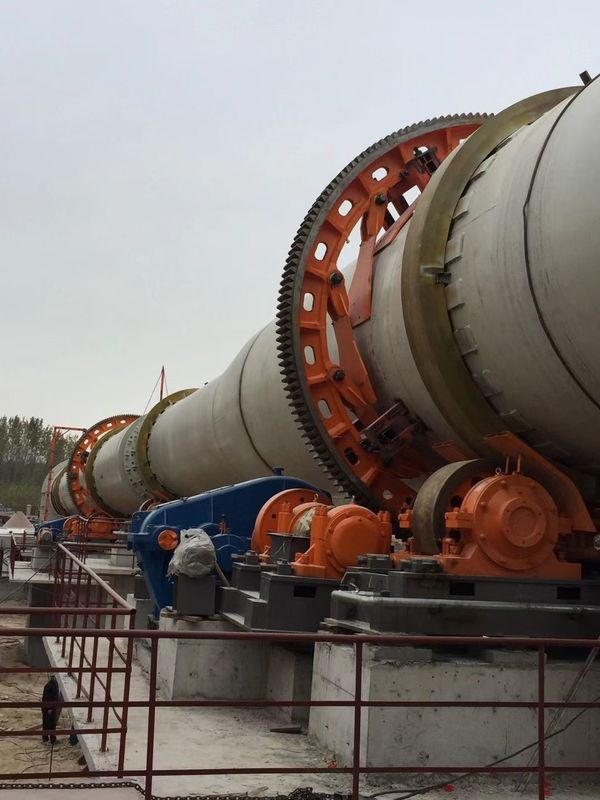

100tpd To 3000tpd Rotary Kiln Cement Plant Making Machinery

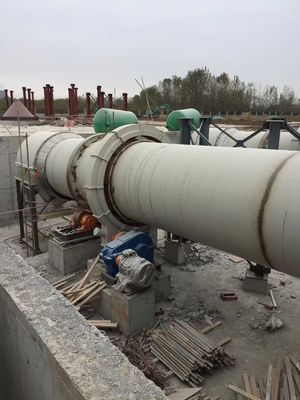

100tpd To 3000tpd Rotary Kiln Cement Plant Making Machinery

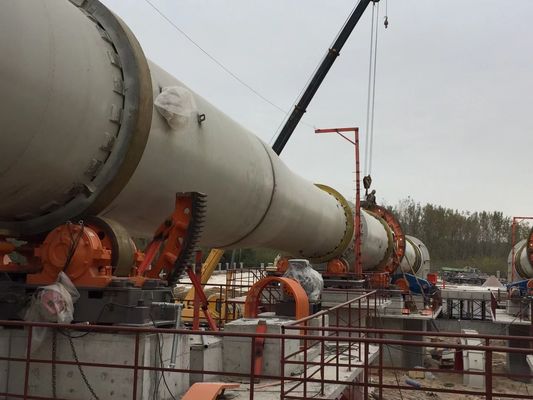

100tpd To 3000tpd Rotary Kiln Cement Plant Making Machinery
video play

Large Image :  100tpd To 3000tpd Rotary Kiln Cement Plant Making Machinery

Product Details:
Place of Origin: Henan, China
Brand Name: CITIC LK
Certification: ISO/CE
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $1,000,000.00
Packaging Details: Standard packing or according to customer's requirement
Delivery Time: 2-3 months
Payment Terms: T/T, L/C,
Supply Ability: 500 Set/Sets per Year
Detailed Product Description
Product Name: Laterite Nickel Calcination Rotary Kiln Warranty: 1 YEAR
Condition: New Power(W): 55-950x2 KW
Weight: 150-1659 T Model: 2.5x40-6.0x95 M
Output: 180~12000t/d Rotary Kiln 2.5x40m: 180 Tpd Rotary Kiln
2.5x54m: 204tpd Rotary Kiln 3.0x45m: 500 Tpd Rotary Kiln
3.2x50m: 1000 Tpd Rotary Kiln 3.5x54m: 1500 Tpd Rotary Kiln
6.0x95m: 10000 Tpd Rotary Kiln Port: QingDao,TianJian,ShangHai
High Light:

3000tpd Rotary Kiln Cement Plant

,

100tpd Rotary Kiln Cement Plant

,

100tpd rotary kiln in cement industry

100tpd to 3000tpd rotary kiln cement plant kiln cement making machinery

Product Descriptio
Rotary Kiln belongs to building material equipment, according to different materials, which can be divided into cement kiln, metallurgy chemical kiln, and lime kiln. Cement kiln is used for making cement clinker and there are dry and wet methods to make cement clinker. Metallurgy chemical kiln is widely used for magnetic roasting of poor iron ore and oxidizing roasting of chrome and nickel in the steel factory; backing high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminum factory and baking chrome ore and chrome powder in the chemical plant. The Lime Kiln is used for roasting active lime in steelworks and ferroalloy plants and light roasting dolomite.

ZTIC Rotary Kiln technical characteristics:
● Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding;
● Tyre,Support Roller,
Open gear adopts alloy cast steel;
●
Sliding bearing with large gap not scraping tile bearing;
● Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor;
● Adopts hydraulic gear wheel;
●
Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal;
●
A slow drive device.

Technological Parameters of Φ5.2×118m Y52118 Series Rotary Kiln:
1. Application: Roasting of 1950-2200t/d ores
2. Specification: Φ5.2×118m (inner diameter of cylinder×length)
3. Type: Double-driving, double hydraulic thrust rollers
4. Kiln supporting: 5
5. Slope: 3.5%
6. Rotating speed: main driving: 0.2 ~1.233r/min; auxiliary driving: 7.82r/h
7. Sealing mode: Flexible sealing
8. Kiln head cooling: air cooling
9. Main driving motor:
Amount: 2 sets
Model: YSNP450L1-6
Power: 355×2 kW
Voltage: 380V
Rotating speed: 980r/min
10. Main speed reducer:
Model: P320-90Ⅴ/Ⅵ
Width between centers: 1650
Velocity ratio: 90/92.273
11. Auxiliary driving motor:
Amount: 2 sets
Model: Y225S-4
Power: 37 kW
Voltage: 380V AC
Rotating speed: 1480r/min
12. Auxiliary driving reducer:
Amount: 2 sets
Model: YNL305-14Ⅰ/Ⅱ
Width between centers: 305 mm
Speed ratio: 14/14.291

Technical Parameters ofΦ5.5×115m Lateritic Nickel Rotary Kiln:

Name Description Unit
Equipment name Rotary kiln
Specification Φ5.5×115m
Application                                            Ores
Amount 1 Set
Output 80-100(roasted sand) t/h
Driving mode Double driving
Type of thrust roller Hydraulic thrust roller
No. of support 4
Slope ( sine) 3.0%
Rotating speed
Driving mode Bilateral double-driving
Main driving 0.2~1.2 r/min
Auxiliary driving 6.7 r/h
Sealing mode of kiln head Sheet steel (provisional)
Sealing mode of kiln end Air cylinder
Cooling of kiln head Air cooling
Rotating direction Clockwise (from discharging end)
Total weight 1648 ( excluding feed and discharge cover) t
Temperature of discharged materials 750~850
Temperature of waste gases 200~400
Thickness of refractory bricks 230 mm



100tpd To 3000tpd Rotary Kiln Cement Plant Making Machinery 0
