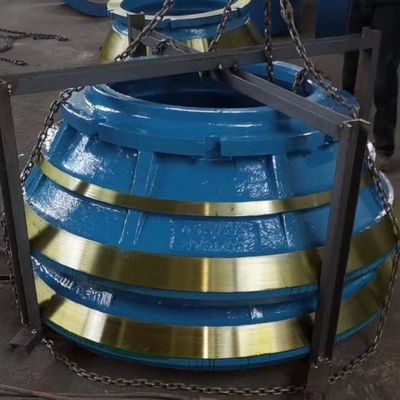

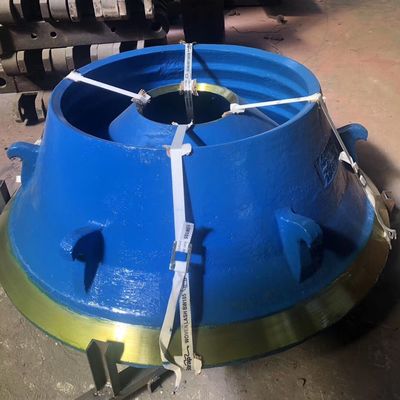

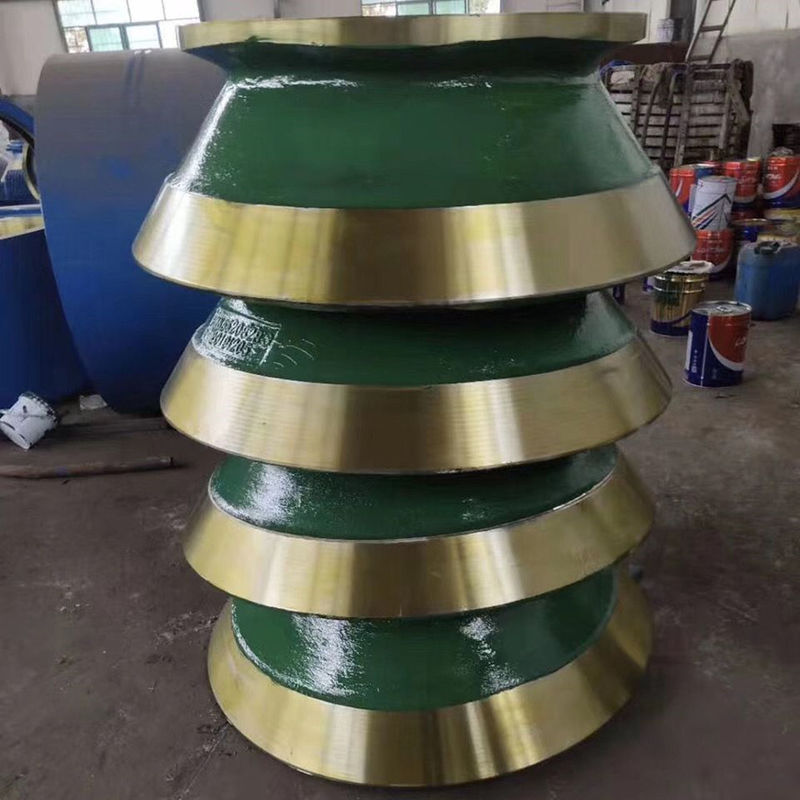

Cone Crusher CH420 Casting Bowl Liner Concave And Mantle

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

Cone Crusher CH420 Casting Bowl Liner Concave And Mantle

Cone Crusher CH420 Casting Bowl Liner Concave And Mantle
Cone Crusher CH420 Casting Bowl Liner Concave And Mantle Cone Crusher CH420 Casting Bowl Liner Concave And Mantle Cone Crusher CH420 Casting Bowl Liner Concave And Mantle

Large Image :  Cone Crusher CH420 Casting Bowl Liner Concave And Mantle

Product Details:
Place of Origin: Henan, China
Brand Name: CITIC ZT
Certification: AISI, ISO9001:2008/CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $1,000.00 - $100,000.00 / Set
Packaging Details: Simple packaging for cone crusher spare parts mantle and concave
Supply Ability: 100000 Ton/Tons per Year
Detailed Product Description
Type: Cone Crusher Mantle And Concave Machine Type: Cone Crusher
Material: High Manganese Steel, Mn14Cr2, Mn18Cr Processing Type: Casting
Use: Ore Mining Brinell Hardness: 500-540 HBTensile
Tensile Strength: 190-220MPa Port: QingDao,ShangHai,TianJin
High Light:

CH420 Concave And Mantle

,

Bowl Liner Concave And Mantle

,

CH420 Crusher mantle concave

Cone Crusher CH420 High Manganese Steel Casting Bowl Liner Concave And Mantle

Product Description



Materials: Mn13Cr2, Mn18Cr2, etc.
Application: spare parts for cone crusher used in the mining, metallurgy, construction, road building, etc.
Advantages: The production process, especially the heat treatment, is strictly controlled , thus improving the service life even for crushing of hard rocks with high abrasiveness.

Cone crusher spare parts mantle and concave

Product Name Cone Crusher Concave/Mantle/Bowl Liner
Material Mn13Cr2/Mn18Cr2/13%Mn/18%Mn
Hardness HB 179 - 230
Standard ASTM A128/A532 AS2074 H1A/-H1B
BS 3100/ BS4844 GX 130 MnCr
SABS 407 Type 1 & 2 SCMnH1
GB/T 5680-2010
Production Capacity Produce Parts of Unit Weight from 100KG -20,000KGS PER PIECE.
Inspection Support Dimension, Chemcial Composition, Metallographic, Mechanical Character, PT/MT/UT/RT...


Cone Crusher CH420 Casting Bowl Liner Concave And Mantle 0



cone crusher spare parts mantle and concave  Overview

The cone crusher spares mainly have concaves and mantles and so on. CITICIC can manufacture numerous models of concave and mantles for cone crusher. The materials of mantle, CITICIC use the High Manganese, like Mn14Cr2, Mn18Cr2, Mn20Cr2, Mn22Cr2, to ensure the wear resistance.

cone crusher spare parts mantle and concave  Advantages and Features:

1. Sophisticated processing equipment and completed inspection facility

2. Ensure every machine and spare parts being inspected

3. CITICIC  will provide with full-range service , and ensure every customer will be followed in real time

4. Japan Advanced LOBF Direct-reading Spectrometer

5. Brinell hardness: 500-540 HBTensile Strength: 190-220MPa

6. Tensile Strength: 190-220MPa

GENERAL DESCRIPTION
Wear components for crushing processes are subjected to severe impact and high abrasion, requiring components made from impact resistant and abrasion resistant alloys.
We increase crusher availability through:
• Increased wear life
• Less on-going wear part maintenance
• Designs and tools for quicker change out

cone crusher spare parts mantle and concave

Concave, Mantle, Mill liners, Points materials plate, locknut

CH Series - CH420, QH330, CH430, CH440, CH660, CH780, CH880

1800 Series - H2800, H3800, H4800, H6800, H7800, H8800

 1000 Series - H2000, H3000, H4000, H6000, H7000, H8000

Superior® CS Series - CS420, CS430, CS440, CS660

Superior® 1800 Series - S2800,S3800, S4800, S6800

Superior® 1000 Series - S2000, S3000, S4000, S6000

Gyratory crusher wearparts:


CITICIC through-hardened alloy concaves for maximum gyratory crusher up-time:
Our metallurgists were the first to successfully develop through-hardened alloy steel to replace traditional Hadfield manganese. We also worked with major crusher manufactures to develop safer lifting techniques for concaves
• Concaves
• Mantles
• Under crusher parts
• Rim liners
• Spider caps and arm guards
• Epoxy backing material
• Chamber optimization
• Oversize mantles design
• Installation and removal optimization
• Change-out forecast




 Cone Crusher Wearparts:




CITICIC supplies replacement wear parts to fit all major cone crusher models, including the new high-horsepower crushers. CITICIC cone crusher wear parts are engineered to maximize production by retaining the feed opening throughout the part’s lifespan, and balancing the mantle and bowl liner wear. Cone parts can be custom fit to match any application.
CITICIC’s cone crusher wear parts give you:
  • Custom configuration ensures consistent production
  • Long-lasting manganese steel and durable parts increase crusher uptime
  • Precise fitting distributes stresses across the frame for less wear and tear on the equipmentMantles, Bowl Liner, Wear Plates, Main Shaft Sleeves, Socket Sealing Rings



Jaw Crusher Wearparts:


Jaw Crusher Wearparts
CITICIC replacement crusher jaws are engineered to last longer and crush more efficiently, while reducing wear and tear on the crusher.
The crusher jaws produce better quality rock more consistently than standard original equipment jaws, while reducing the need for re-screening and re-crushing. CITGIC offers a full range of options for all popular jaw crushers, including various tooth designs, curves and alloys.
CITICIC's crusher jaws give you:
  • Machined surfaces for a consistent fit with less hassle and downtime
  • Large selection of tooth and curve configurations for optimum performance in any application
  • Unsurpassed alloys for extended wear life and lower cost per ton
  • Toggle Plate
  • Cheek Plate
  • Jaw Wedges
  • Jaw Plate



 Hammer crusher wearparts:


Hammer crusher wearparts.
We produce Hammers in One and Two-Piece styles, Grates, Breaker Blocks, Side Liners, Breaker Bar Sleeves, Rotor Hubs, Complete Rotor Assemblies, Top Cover Liners and Throat Collars.
•Grates
• Breaker Blocks
• Side Liners
• Breaker Bar Sleeves
• Rotor Hubs
• Complete Rotor Assemblies
• Top Cover Liners
• Throat Collars
Impact Crusher wearparts:
Impact Crusher wearparts

Columbia offers Long Life VSI Anvils and Shoes designed to put more metal in high abrasion areas for longer life between changeouts. Other parts which are available include Feed Tubes, Feed Disks, Table Liners, Outer Table Liners, Upper Tub Liners, Lower Tub Liners, and Pedestal Skirt Liners.We also make long-lasting wear parts for horizontal shaft impactors, including Standard and Heavy Duty Impeller Bars, Curtain Liners and Liner Plates.

  • Blow bar
  • hammer plate
  • liner plates


Roll Crusher Wearparts

Roll Crusher Wearparts

CITICIC produces Standard Roll Shells, although most customers choose our Oversize and Heavy Center Roll Shells because of the their longer life and resistance to caving. Smooth, Cleated and Corrugated surfaces are offered. Our standard manganese steel offers toughness and wear resistance with good weldability. We also produce Side Plates.



Our Services



Aftersales service
CITIC Heavy Industries is your business partner in the After Market.

CITICIC  able to provide:

1.    ENGINEERED SPARES -  DESIGN AND MANUFACTURING

2.    LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3.    HUGE MACHINE SHOP CAPABILITIES

4.    TRAINING PROGRAMMES

5.    PREVENTATIVE MAINTENANCE PROGRAMS

6.    PREVETATIVE MAINTENANCE SERVICES

7.    COMPREHENSIVE MAINTENANCE PROGRAMS

 CITIC’s Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.

 Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

 CITICIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
