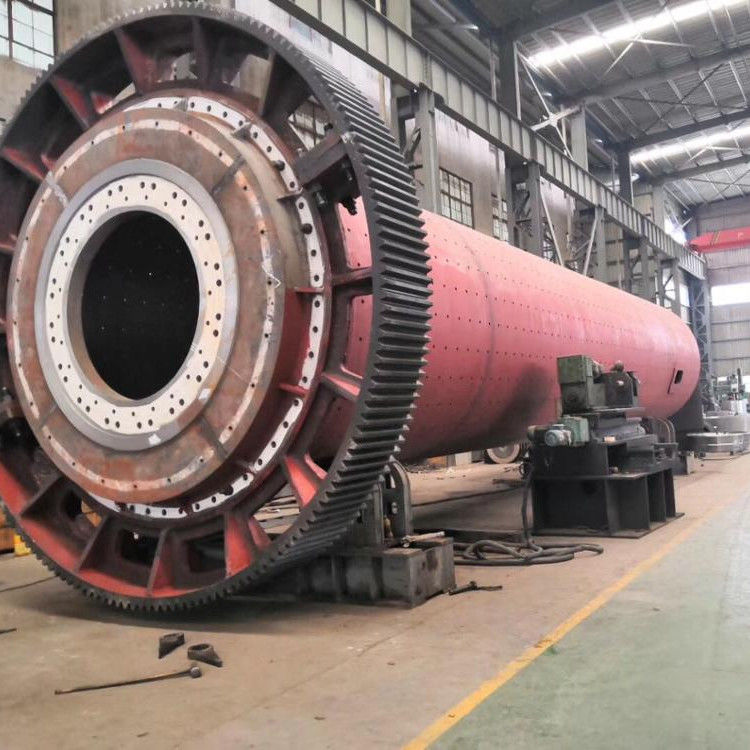

Cylindrical PLC Control Ore Wet Stone Grinding Mining Ball Mill

Product name

Factory sales quality mining ore wet stone grinding ball mill for salel

Ball Mill Type

 Mine ball mill & Mining ball mill

Cylinder diameter

 1500-8000 mm

Overflow Ball Mill

 1.5x3.0~ 8x12m

Application

 grinds ores and other materials

Mine Ball Mill Application:
A ball mill grinds ores and other materials to a typical product size of 35 mesh or finer.
The feed to a ball mill is prepared by...
· Single or multistage crushing and screening
· Crushing, screening, and/or rod milling
· Primary crushing and autogenous/semiautogenous grinding
Mine Ball Mill Normal feed sizes:
· 80% passing 1/4" (6 mm or finer) for hard ores
· 80% passing 1" (25 mm or finer) for softer ores
(Larger feed sizes can be tolerated depending
The length to diameter ratio of cylindrical mills range from 1 to 1 through 3 to 1. When the L/D ratio is 2 to 1 or greater, werefer to the mill as a Tube Mill.
The two most popular types of ball mills are…
Grate or Diaphragm Discharge Ball Mill
In the discharge end of this mill, a slotted full diameter or partial diameter grate with discharge lifter assembly conveys the material to the discharge trunnion opening. The grate serves to retain balls, tramp, and coarse material. A gradient created between the feed opening and the discharge slots eases the flow of material.
Trunnion Overflow Discharge Ball mill
A trunnion overflow mill has an open discharge end. Material flows through the trunnion as a result of the pulp gradient between the feed and discharge openings. A reverse helix in the discharge trunnion liner retains balls in the mill.
LUOYANG ZHONGTAI Ball Mill Feature
The cylindrical mill adopts the driving type edge-driving, center-driving, edge-driving with multi-point meshing, etc; driven by asynchronous motor +reducer +pinion and gear as well as synchronous motor +
air lclutch + pinion and gear.
Generally supported by static-dynamic pressure bearing on both ends. Fuuly closed self-aligning 120º osculation rocker bearing is used. Also single or double slipper staic- dynamic bearings can be used. The bush is made by NC machine.

The large open gear is designed using AGMA standard, Equipped with reliably sealed gear housing and grease ahtomatic spraying lubrication system.
The shell is key part of a mill. Carry out finite element analysis on it with computer to ensure the reliable operation;
The shell is automatically welded, ultrasonic inspected, wholly annealed and machined by large special machine tools on one chucking; there special seal on static-dynamic connection parts , ch as feed and discharge hoper, trunnion, etc, to prevent oil and slurry leakage;
The liner is of wear-resistance material mad by our company, wich has been specially heat-treated, with high hardness and long service life. Also other wear-resistance casting or rubber liner can be used;
There are slow speed drive for medium and large mill;
The high and low pressure lubricating station is equipped for medium and large mill;
The control and protection system is controlled by PLC.
