Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Energy & Mining | Local Service Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea |
|---|---|---|---|
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge | Condition: | New |
| Type: | Cone Crusher, Secondary Crushing | Application: | Oro Crushing |
| Motor Type: | AC Motor | Capacity(t/h): | 9-2000 TPH |
| Dimension(L*W*H): | 4613x3302x4638 Mm | Weight: | Symons Cone Crusher |
| Cone Crusher: | Symons Cone Crusher | Model: | PSG Symons Cone Crusher |
| Input Size: | 83-369MM | Diameter Of Cone (mm): | 600/900/1295/ |
| Adjusting Range Of Discharge Opening: | 3-64(mm) | Output Size (mm): | 35-460 |
| Max Feed Size (mm): | 30-391 | Capacity (t/h): | 9-1941 |
| Main Motor Power (kw): | 22-400 | Warranty: | 12 Month |
| Port: | QingDao,ShangHai,TianJin | ||
| High Light: | Symons Spring Mining Ore Cone Crusher,2000 TPH Stone Crusher Machine,Secondary Crushing Symons Cone Crusher |
||

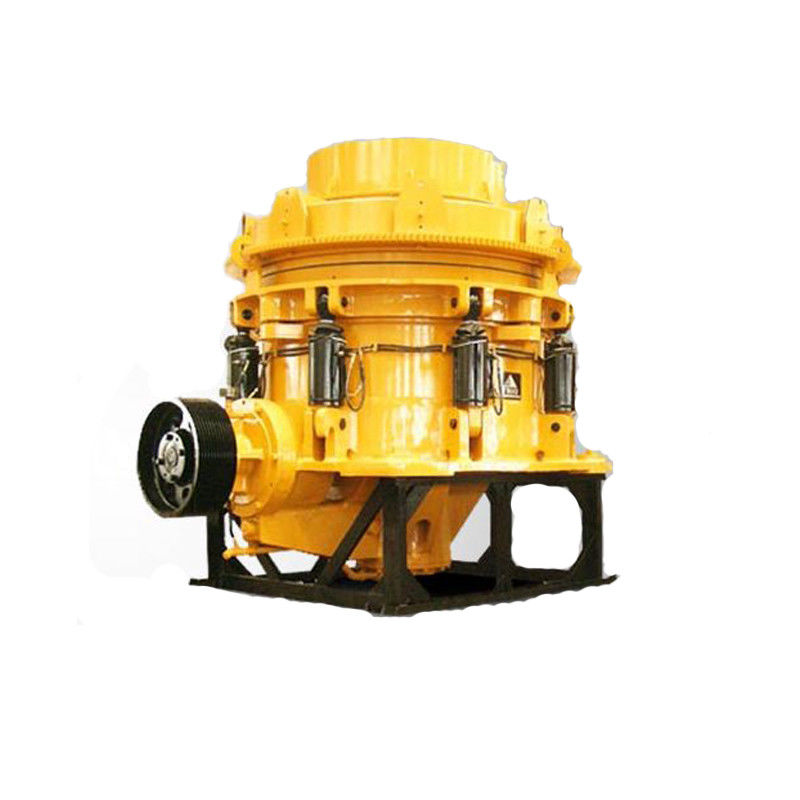

Symons Spring Mining Ore Cone Crusher
Type: Secondary Crushing
Input Size: 83-369MM
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, mine ore, quartz,diabase,etc. (for hard stone)
Applications:
Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.
CS Series cone crushers were built for decades of reliable service. The design was as simple as possible with features that were user friendly, and craftsmen with many years of experience built the frames and components for ruggedness and durability with American steel and pride in their work. Because of this, CS Series cone crushers enjoy a worldwide reputation as rugged, durable, easy to maintain, and reliable. Now there is a conversion kit to combine all the features that made them so rugged and reliable, with more modern features to increase production and automation.
Technical Data
| Type | Model | Cavity Type | Diameter of cone (mm) | Adjusting Range of Discharge Opening (mm) |
Recommend feeding size when the minimum output size (mm) | Max feed size (mm) |
Capacity (t/h) | Main Motor Power (kw) |
Weight (kg) | Overall Dimension (L×W×H) (mm) |
| 2’FT | PSGB- 0607 | Standard fine | 600 | 6-38 | 70 | 60 | 16-50 | 22 | 4500 | 2195×1158×1651 |
| PSGB- 0609 | Standard medium | 10-38 | 95 | 80 | 18-65 | |||||
| PSGB- 0611 | Standard coarse | 13-38 | 110 | 90 | 22-70 | |||||
| PSGD- 0603 | Short head fine | 3-13 | 35 | 30 | 9-35 | |||||
| PSGD- 0605 | Short head coarse | 5-16 | 50 | 40 | 22-70 | |||||
| 3’FT | PSGB- 0910 | Standard fine | 900 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
| PSGB- 0917 | Standard coarse | 13-38 | 175 | 150 | 59-163 | |||||
| PSGB- 0918 | Standard super coarse | 25-38 | 178 | 150 | 118-163 | |||||
| PSGD-0904 | Short head fine | 3-13 | 41 | 35 | 27-90 | 10530 | ||||
| PSGD-0906 | Short head medium | 3-16 | 76 | 65 | 27-100 | |||||
| PSGD-0907 | Short head coarse | 6-19 | 102 | 85 | 59-129 | |||||
| 4.25’FT | PSGB- 1313 | Standard fine | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
| PSGB- 1321 | Standard medium | 16-38 | 210 | 178 | 132-253 | |||||
| PSGB- 1324 | Standard coarse | 19-51 | 241 | 205 | 172-349 | |||||
| PSGB- 1325 | Standard super coarse | 25-51 | 259 | 220 | 236-358 | |||||
| PSGD-1306 | Short head fine | 3-16 | 64 | 54 | 36-163 | 22590 | ||||
| PSGD-1308 | Short head medium | 6-16 | 89 | 76 | 82-163 | |||||
| PSGD-1310 | Short head coarse | 8-25 | 105 | 89 | 109-227 | |||||
| PSGD-1313 | Short head super coarse | 16-25 | 133 | 113 | 209-236 | |||||
| 5.5’FT | PSGB- 1620 | Standard fine | 1676 | 16-38 | 209 | 178 | 181-327 | 220 | 43270 | 3941×2954×3771 |
| PSGB- 1624 | Standard medium | 22-51 | 241 | 205 | 258-417 | |||||
| PSGB- 1626 | Standard coarse | 25-64 | 269 | 228 | 299-635 | |||||
| PSGB- 1636 | Standard super coarse | 38-64 | 368 | 313 | 431-630 | |||||
| PSGD-1607 | Short head fine | 5-13 | 70 | 60 | 90-209 | 43870 | ||||
| PSGD-1608 | Short head medium | 6-19 | 89 | 76 | 136-281 | |||||
| PSGD-1613 | short head coarse | 10-25 | 133 | 113 | 190-336 | |||||
| PSGD-1614 | Short head super coarse | 13-25 | 133 | 113 | 253-336 | |||||
| 7’FT | PSGB- 2127 | Standard fine | 2134 | 19-38 | 278 | 236 | 544-1034 | 400 | 86730 | 4613×3302×4638 |
| PSGB- 2133 | Standard medium | 25-51 | 334 | 284 | 862-1424 | |||||
| PSGB- 2136 | Standard coarse | 31-64 | 369 | 314 | 1125-1814 | |||||
| PSGB- 2146 | Standard super coarse | 38-64 | 460 | 391 | 1252-1941 | |||||
| PSGD-2110 | Short head fine | 5-16 | 105 | 89 | 218-463 | 89500 | ||||
| PSGD-2113 | Short head medium | 10-19 | 133 | 113 | 404-580 | |||||
| PSGD-2117 | Short head coarse | 13-25 | 178 | 151 | 517-680 | |||||
| PSGD-2120 | Short head super coarse | 16-25 | 203 | 172 | 580-744 |
Aftersales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
