Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining | Local Service Location: | Viet Nam, Indonesia, Australia, Argentina |
|---|---|---|---|
| Showroom Location: | None | Condition: | New |
| Type: | Jaw Crusher | Application: | Rock Crusher And Stone Crusher |
| Motor Type: | AC Motor | Capacity(t/h): | 5-21T/h |
| Dimension(L*W*H): | PE Jaw Crusher | Weight: | 2.6T |
| Feeding Size: | 250*400mm | Maximum Feed Size: | 210mm |
| Adjusting Range Of Dischaiging Opening: | 20-80mm | Rotation Speed Of Eccentric Shaft: | 300r/min |
| Power: | 150kw | Boundary Dimension: | 1450*1315*1296mm |
| Warranty: | 12 Month | Port: | QingDao,ShangHai,TianJian |
| High Light: | Metallurgy Stone Crusher Machine,2.6T Powerful Jaw Crusher,320MPa Stone Crusher Machine |
||

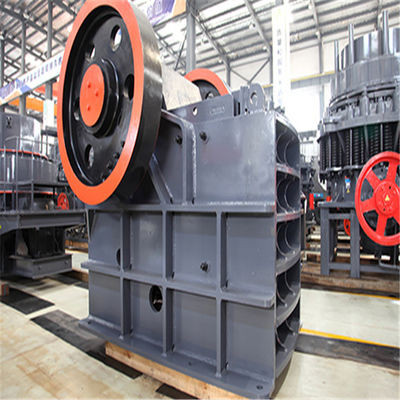

Jaw Crusher : PE Series Jaw Crusher
Jaw crusher is a crushing machine that is researched and developed very early. With simple and solid structure, reliable work, easy maintenance and repair and low production and construction fees, it has long been widely used for the coarse, medium and fine crushing of various kinds of ores and rocks whose compression strength is 147~245MPa in many industrial departments such as metallurgy, chemistry, building material, power plant and transportation. In recent years, to satisfy the requirement of crushing micro-carbon ferro chrome with high strength and high hardness in the industrial departments of metallurgy, mine and building, our company has specially researched and manufactured powerful jaw crusher.
Jaw crusher is mainly used for the medium-granularity crushing of all kinds of ores and large materials in mine, metallurgy, building material, highway, railway, water conservancy and chemistry. The maximum compression strength of the materials to be crushed is 320MPa.
PE Series Jaw Crusher technical parameters
| Model | Feeding size(mm) | Max feeding size(mm) | Discharging Range size(mm) | Capacity (t/h) | Motor power(kw) | Weight (t) |
| PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 |
| PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 30 | 6.5 |
| PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 55 | 10.6 |
| PE-600*900 | 600*900 | 500 | 65-180 | 80-180 | 55-75 | 15.5 |
| PE-750*1060 | 750*1060 | 630 | 80-180 | 110-320 | 90-110 | 28 |
| PE-800*1060 | 800*1060 | 680 | 100-200 | 140-340 | 90-110 | 30 |
| PE-870*1060 | 870*1060 | 750 | 170-270 | 180-360 | 90-110 | 30.5 |
| PE-900*1060 | 900*1060 | 780 | 200-290 | 200-380 | 90-110 | 31 |
| PE-900*1200 | 900*1200 | 780 | 95-225 | 220-450 | 110-132 | 49 |
| PE-1000*1200 | 1000*1200 | 850 | 195-280 | 280-550 | 110-132 | 51 |
| PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 160 | 100.9 |
| PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 15 | 3.5 |
| PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 22 | 4.9 |
| PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 |
| PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 37 | 7.7 |
| PEX-300*1300 | 300*1300 | 250 | 20-90 | 25-95 | 75 | 11 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
