| Product Name: | Soil Compactor | Model: | SEM510 Soil Compactor |
|---|---|---|---|
| Rated Speed: | 2200r/min | Weight On Rear Alex: | 4100kg |
| Static Linear Load: | 217n/cm | Travel Speed Low Range: | 0-5.5km/h |
| Travel Speed Hjgh Range: | 0-12km/h | Compaction Width: | 2130mm |
| High Light: | SEM510 Soil Compactor Machine,97.5kw Soil Compactor Machine,SEM510 vibratory soil compactor |
||
High Reliability High Productivity High Efficiency SEM510 Soil Compactor
High Efficiency
Load sensing vibration hydraulic, propel system reduce system heat and fuel consumption
Dual frequency and amplitude with close-center vibration hydraulic system, easy to operate and improve productivity
Optimized travel speed with the vibration frequency
Rear axle equipped with Limited Slip Differential (LSD) for better maneuverability

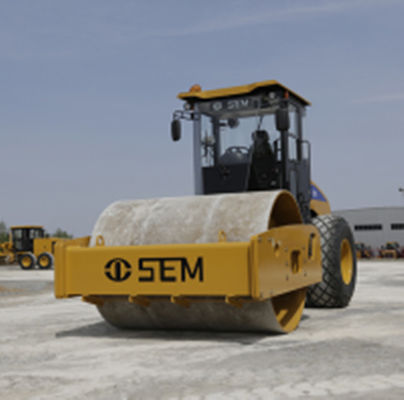

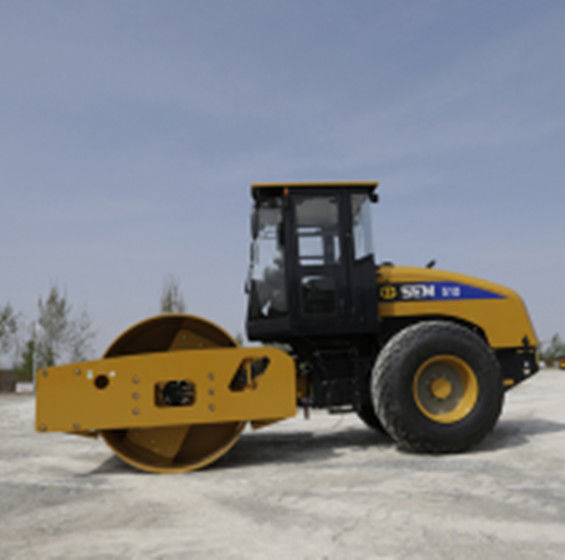

SEM510 Soil Compactor
Safety
New dashboard with 3 stage alarm monitoring
Automatic Parking brake
Neutral start protection
Reliability
Advanced vibration system, full sealed housing to extend bearing life
World class piston pump and motor for vibration and propel hydraulic system
Anti dust adopt and switch for electric system capacity IP67
Advantages
High Reliability: Hydrostatic drive system with world class variable displacement piston pump and motors delivers leading in class reliability
High Productivity: Dual amplitude and frequency vibration system enable the operator to achieve better compaction result
High Efficiency: Up to 45% grade ability allows the machine to work efficiently on slop and uneven terrains
