| Model: | GS Series | Product Name: | High-efficiency Probability Screen |
|---|---|---|---|
| Keyword: | Ore Dressing Equipment | Screen Material: | Dry Material |
| Capacity: | 60-350tph | Product Keywords: | Screen |
| Usage: | Multi-stage Screening And Dry Material Operation | Screen Size(m): | 1.0*1.4-3.0*2.5 |
| Installed Power(kw): | 2.25-30 | Number Of Layers: | 2-6 |
| High Light: | 350tph Probability Screen,Multi Stage Probability Screen,350tph Probability rotary vibrating screen |
||
GS series of high-efficiency probability screen multi-stage screening and dry material operation
1. Product overview of probability screens for Ore Dressing Equipment
The GS series of high-efficiency probability screens are developed and manufactured by multi-disciplinary comprehensive technology principles such as probability, physics, statistics, etc. It is a new type of green environmental protection screening equipment, widely used in refractory materials, building materials, metallurgy, abrasives, chemicals, and food The fine screening of medium and fine materials in industries such as, medicine and other industries is especially suitable for multi-stage screening and dry material operations in refractory materials, machine-made sand, dry mortar, coal, chemical industries and other industries. Probability screens for Ore Dressing Equipment
2. Structural features of probability screens for Ore Dressing Equipment

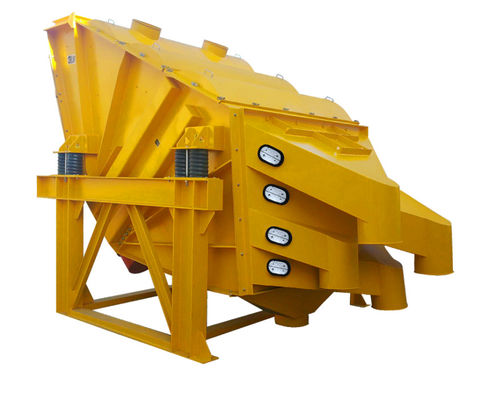

The probability screen uses a screen with a larger size than the screening size to classify the material. It consists of a closed frame, a set of multiple layers overlapping each other, the slope increases from top to bottom, the screen with decreasing screen size, inlet and outlet hoppers and more It consists of a high-efficiency vibration motor.
Probability screens for Ore Dressing Equipment
3.Technical parameters of probability screens for Ore Dressing Equipment
| Model | Number of layers | Screen size(m) | Screening size range(mm) | Installed power(kw) | Processing capacity(t/h) | Max. size(m) |
| GS1015 | 2-6 | 1.0*1.4 | 0.075-20 | 2.25-3.7 | 60 | 2.5*1.6*2.0 |
| GS1025 | 2-6 | 1.0*2.5 | 0.15-30 | 7.4-9 | 100 | 4.6*1.8*3.8 |
| GS1625 | 2-6 | 1.5*2.5 | 0.2-50 | 9-14 | 160 | 4.7*2.2*3.8 |
| GS2125 | 2-6 | 2.0*2.5 | 0.2-50 | 9-14 | 210 | 4.8*2.8*3.8 |
| GS2625 | 2-6 | 2.5*2.5 | 0.3-50 | 22-30 | 260 | 4.9*3.5*3.8 |
| GS3125 | 2-6 | 3.0*2.5 | 0.3-50 | 24-30 | 350 | 5.0*3.7*3.8 |
(1) The processing capacity varies with factors such as the type of screening material, particle size, gradation, moisture content, density and other factors;
(2) The typical processing capacity in the table is the reference value of limestone with a particle size of 13mm, a density of 1.6t/m³, and a moisture content of less than 2%;
(3) Under the same conditions, the time required for screening materials with probability screens is only 1/3~1/6 of that of ordinary vibrating linear screens, and the processing capacity per unit area of the screen is 5-10 times larger than that of ordinary vibrating linear screens ；
(4) The manufacturer reserves the right to revise the technical parameters, please contact our company for details.
Probability screens for Ore Dressing Equipment
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
