Product Details:
Payment & Shipping Terms:
|
| Name: | Bucket Elevator | Condition: | New |
|---|---|---|---|
| Material: | Carbon Steel | Structure: | Conveyor System |
| Voltage: | 220/380V | Power(W): | 0.4kW - 22kW |
| Warranty: | 1 YEAR | Width Or Diameter: | 500mm |
| Core Components: | Motor, Engine | Model: | NE/TGH/HL Series Bucket Elevator: |
| NE Bucket Elevator Lifting Capacity: | 15-800 M3/h | TGH Bucket Elevator Lifting Capacity: | 36.6-365 M3/h |
| HL Series Bucket Elevator Output: | 8-145 TPH | Width(mm): | 500-2500 |
| Length(mm): | 2000-19000 | Speed(m/s): | 0.006-0.02 |
| Feed Size(mm): | 500-1800 | Capacity(t/h): | 20-1000 Th |
| Port: | QingDao,ShangHai,Tianjin | ||
| High Light: | 800m3/H Conveying Hoisting Machine,800m3/H chain bucket elevator,15m3/H chain bucket elevator |
||
Description:
Elevate a large space. This type of equipment have little requirement on size, type and feature.
Widely applied to elevate powder, granular and lump materials, also for the milled material. Elevate tempreture below 250 Degrees Celsius materials.
Large transmission capacity. Elevate the capacity up to 15-800 cubic meters / hour.
Easy to operate, advanced design principle, less repairing, less wearing parts.
Reliable work performance.
Advanced design principle, make sure the machine work reliable.
|

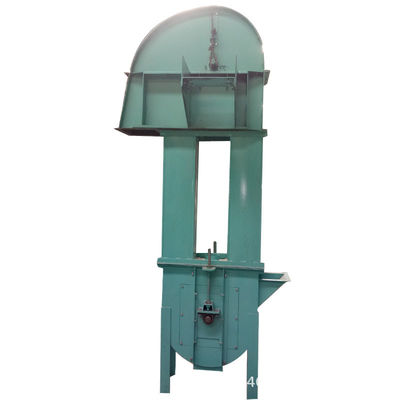

Bucket elevator is a continuous conveying machine for vertically lifting materials. It can adjust the conveying speed according to the conveying capacity, select the hoisting height as needed, and make the hopper and size according to the actual needs. It is suitable for the hoisting and feeding of food, medicine, chemical industry products, nuts and other products. |
Product Type:
1.Ring chain bucket elevator
2.Plate chain bucket elevator
3.Belt bucket elevator
Advantages:
Large transmission capacity. Elevate the capacity up to 15-800 cubic meters / hour.
Low energy consumption. This machine used for the flowing feed method, Gravity induced discharging the material. And use the Intensive large capacity hopper conveyor.
Low chain speed, but big transmission capacity, nearly no material flow back, so small drive power, Theoretical calculation Shaft power is 25%-45% for the Cycle chain elevator
Long use life. This kind of elevator used for the flowing feed mathod, between the material and hit, during the feed and elevating, seldom material will flow back, so this Prevent abrasive cost. Strengthed wear-resistant chain enlarge the use life of the chain and hopper. Actual use shows that: transport chain use life more than 5 years.
Lifting height high. with low speed of the chain speed, stable working, and used the strengthed wear-resistant chain, so the lifting height is higher.
Good sealing, reduce environmental pollution.
Technical Parameters of NE Series Bucket Elevator:
| Model | Lifting capacity | Bucket | Weight of operation parts | Max. size of materials | ||||||
| (m3/h) | Volume (L) |
Bucket gap (mm) | Bucket speed (m/min) |
Percentage (%) | ||||||
| 10 | 25 | 50 | 75 | 100 | ||||||
| NE15 | 15 | 2.5 | 203.2 | 29.8 | 28 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 32 | 7.8 | 304.8 | 30.1 | 35 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 14.7 | 304.8 | 30.1 | 64 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 35 | 400 | 31 | 89 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 52.5 | 400 | 31 | 112 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 84.6 | 500 | 30 | 134 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 127.5 | 500 | 30 | 188 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 182.5 | 600 | 30 | 205 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 260.9 | 700 | 30 | 223 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 300.2 | 700 | 30 | 274 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 501.8 | 800 | 30 | 313 | 275 | 220 | 165 | 135 | 110 |
Aftersales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
