Product Details:
Payment & Shipping Terms:
|
Name: | Cone Crusher Eccentric Sleeve | Material: | Copper |
---|---|---|---|
Bush Types: | Tube | Lubricating: | Carbon |
Application: | Used For Cone Crusher Eccentric Sleeve | Port: | Qingdao Tianjin Shanghai |
High Light: | C83600 Copper Eccentric Bush,C93200 Copper Eccentric Bush,C83600 Crusher eccentric sleeve |

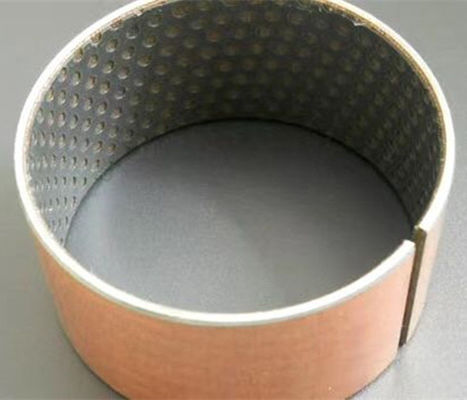

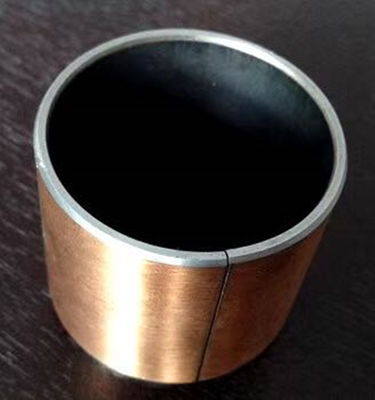

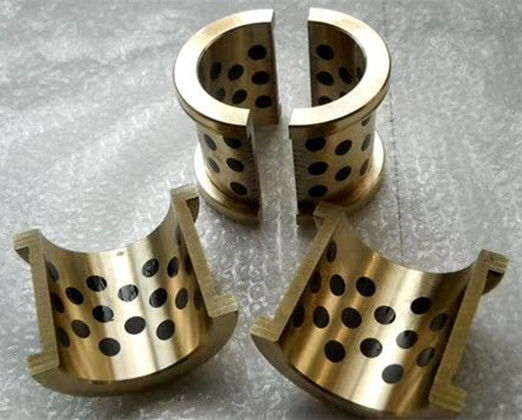

Special wear-resistant inner eccentric copper bush for spring cone crusher |
Cone Crusher eccentric sleeve Description:
Except the mantle and concave, we can also supply most others spare parts for the crusher, such as : Main frame assembly , main shaft assembly, adjustment ring assembly, head assembly, bowl assembly, movable jaw assembly, wear plate assembly, eccentric bushing,main frame bushing, protection bushing, upper bushing, all kinds of seal ring, wedges, we get these original parts from the same OEM factory, that’s why we can promise the 100% original quality.
Cone Crusher eccentric sleeve Feature:
1. Precise dimension
2. Excellent surface finish and detail handling
3. High wear resistance and long working life
4. Low friction
5. Low moisture absorption
6. OEM available
Cone Crusher eccentric sleeve Features
1, High wear-resistant
2, Corrosion resistant
3, Excellent compression capaility
Cone Crusher eccentric sleeve Material grades:
1, Tin bronze series: 6-6-3 5-5-5 10-2 10-5 8-4
2, Phosphor bronze series: 10-1 6.5-0.1 7-0.2 8-0.3
3, Lead bronze series: 10-10 12-8 17-4-4 20-5 25-5 ZCuPb30
4, Silicon bronze series: ZCuSi3Mn1 ZCuSi1Mn3
5, Brass series: H62.H65.H68 59-1 58-2 16-4 40-2 58-2-2 66-6-3-2
Product name | Inner eccentric sleeve bush |
Material
|
Tin bronze (C83600/C93200/CuSn12/CuSn7Zn4Pb7); Copper Alloy; Lead Bronze; Aluminum Bronze (C62900/C95400/C95500/CuAl10Fe5Ni5) |
Model |
2ft,3ft,4 1/4 ft,5 1/2 ft,7ft,Φ1300,Φ1600,Cs240 etc. Cone crusher complete cast copper parts |
ID | 20-1000mm |
OD | 25-1500mm |
Standard | ASTM/ JIS/ ASME/ AISI/ EN/ BS |
Production process | Sand casting,metal mold casing,centrifugal casting |
Other accessories | Eccentric bush,socket liner,main shaft sleeve,frame bushing,thrust bearing plate,driving shaft sleeve |
