Product Details:
Payment & Shipping Terms:
|
| Impact Crusher: | PF Series Impact Crusher | Installation: | Engineer Guide |
|---|---|---|---|
| Usage: | Mining Crushing | Output Size: | 20-350mm |
| Max Feeding Size: | 200-1020mm | Processed Materials: | Stone Ore |
| High Light: | 800Tph Vertical Impact Crusher,30Tph Vertical Impact Crusher,30Tph pf impact crusher |
||

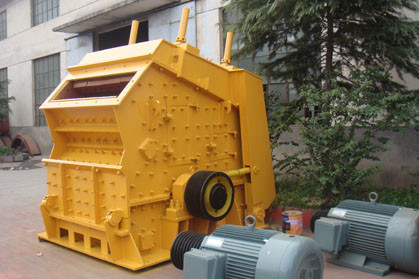

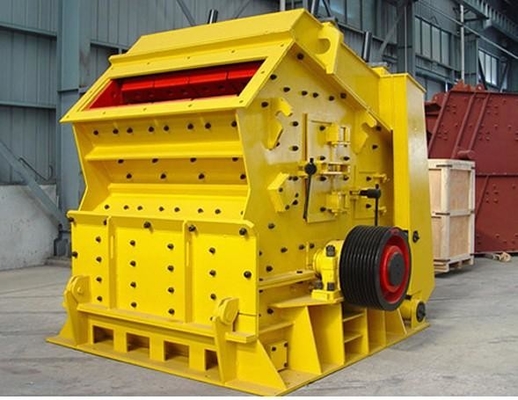

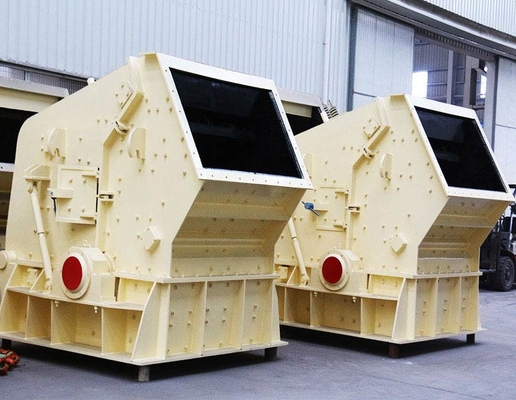

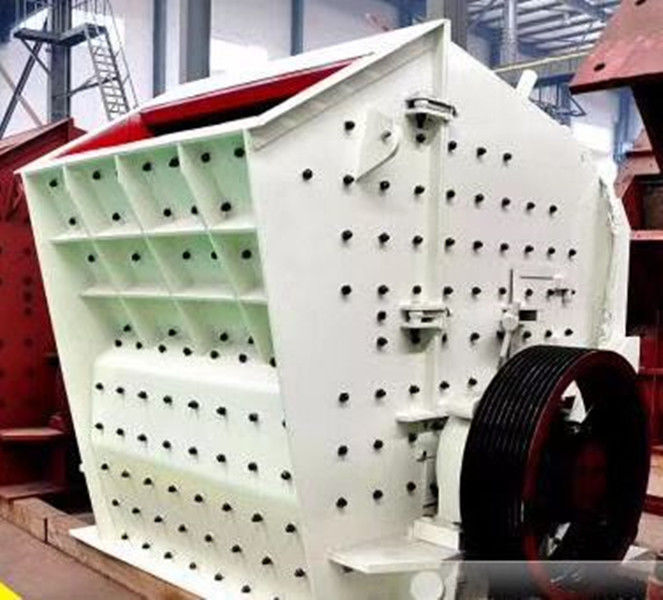

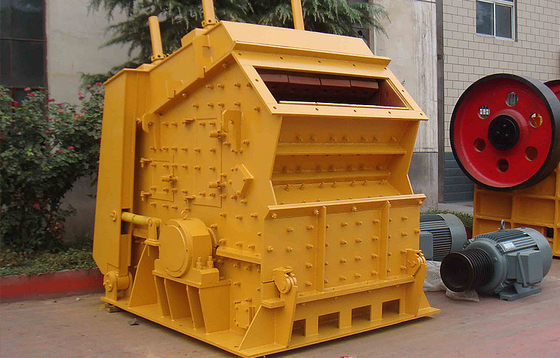

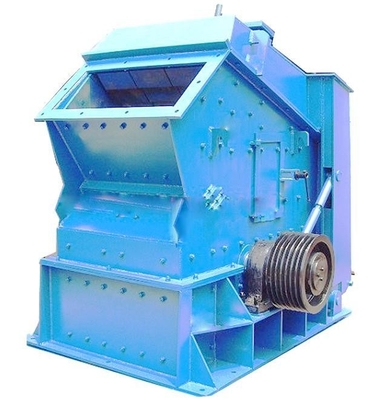

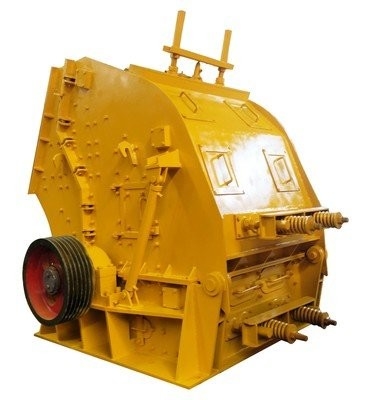

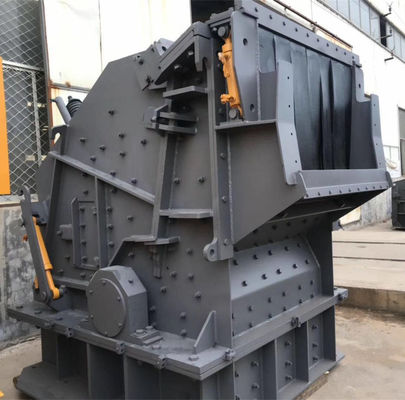

Impact crusher is a new type of high-efficiency crushing machine with the features of small size, simple structure, large crushing ratio.
| Model | Specifications (mm) |
Feed opening (mm) |
Max.feeding side length (mm) |
Capacity (t/h) |
Power (kw) |
Total weight (t) |
Dimensions (L×W×H) (mm) |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 37-45 | 12 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 45-55 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 300-550 | 315-400 | 50.6 | 3959×3564×3330 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 700 | 600-800 | 630-710 | 83.21 | 4400×3866×4009 |
Impact crusher can adjust the discharge particle size in a variety of ways, such as adjusting the rotor speed, adjusting the gap between the impact plate and the grinding chamber.Clearance adjustment can be mechanically or hydraulically adjusted, and clearance adjustment can be easily accomplished by local operation of the button or the range control system with the hydraulic adjustment system.
Four, wearing parts of small wear, high metal utilization rate
The wear of the plate hammer of the impact stone breaker only appears on the side facing the material.When the rotor speed is normal, the feed will fall to the plate hammer surface (hitting surface), and the back and side of the plate hammer will not be worn.There is very little wear even on the material side.And the bottom grinding rod is easy to replace.The metal utilization rate of plate hammer of impact crusher can be as high as 45%-48%.
Five, impact crusher spare parts replacement is simple, maintenance costs are reduced
