| Name: | Small Pinion Gear | Material: | Steel |
|---|---|---|---|
| Processing Type: | Casting | Condition: | New |
| Machine Type: | Rotary Kiln And Ball Mill | Certificate: | ISO9001:2015 |
| Surface Treatment: | Painting | Key Words: | Pinion,pinion Gear,small Gear |
| Module Of Gea: | 8-120 | OD For Gear Wheel:: | MAX.13 000 Mm |
| Height For Gear Wheel: | MAX. 1200 Mm | Port: | QingDao,ShangHai,TianJin |
| High Light: | 4140 Forged Mill Pinion Gears,Surface Hardening Ball Mill Pinion Gears,4140 spur gear pinion gear |
||
China OEM Surface Hardening 4140 Ball Mill Big Forged Spur Gear Wheel Pinion Gear
Forged Spur Gear Wheel Pinion Gear
Pinion gear material
42CRMO STEEL DATA
CHEMICAL LIST
C : 0.38-0.45%
Si: 0.17-0.37%
Mn: 0.50-0.80%
S : Allow residual content <0.035%
P : Allow residual content <0.035%
Cr: 0.90-1.20%
Ni: Allow residual content <0.030% Cu: Allow residual content <0.030%
Mo: 0.15-0.25%
MECHANICAL DATA
Tensile Strength σb (MPa): >1080(110)
Yield point σs (MPa): >930(95)
Elongation σ5 (%): >12
Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy Akv(J): >63
Impact toughness value αkv (J/cm2): >78(8)
Hardness: <217HB
Sample size: The blank size of the sample is 25mm
PHYSICAL DATA
Critical point temperature (approximate value): Ac1=730℃, Ac3=800℃, Ms=310℃
Linear expansion coefficient: temperature: 20~100℃/20~200℃/20~300℃ /20 ~400℃/20~500℃ /20~600℃
linear expansivity: 11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K
Modulus of elasticity: temperature 20℃/300℃/400℃/500℃/600℃,
Elastic modulus 210000MPa/185000MPa/ 175000MPa/165000MPa/15500oMPa

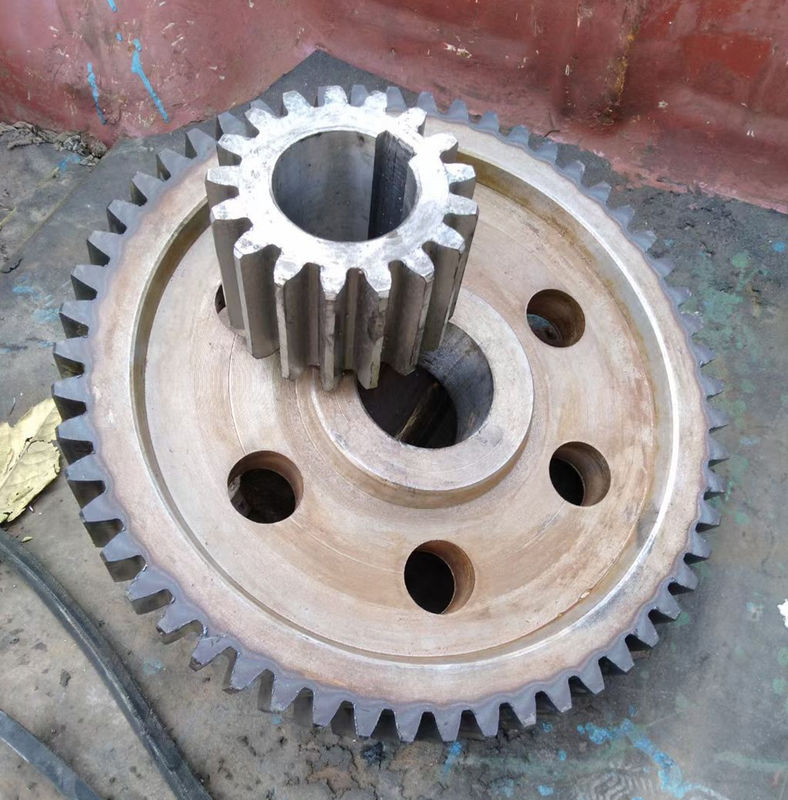

Forged Spur Gear Wheel Pinion Gear

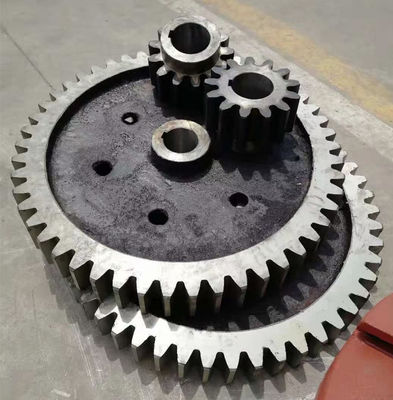

Forged Spur Gear Wheel Pinion Gear
| item | remark |
| normal materials for pinion gear | 35simn, 42crmo |
| better materials for pinion gear | 17crnimo6, 20crmoA |

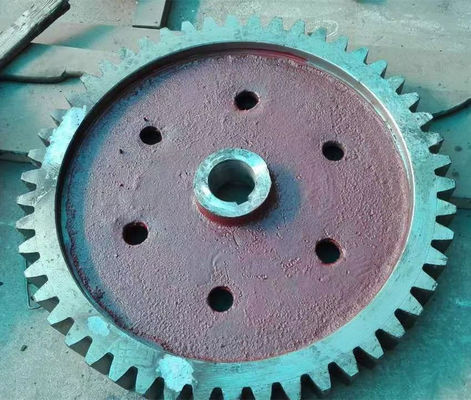

BALL MILL GEAR PICTURES
company show
Forged Spur Gear Wheel Pinion Gear
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
