Product Details:
Payment & Shipping Terms:
|
| Color: | Black Or Customized | Size: | Customized |
|---|---|---|---|
| Packing: | Wooden Box Or Rquest | Material: | Steel |
| Product Inspection: | 100% Quality Control | Delivery Time: | 15-30 Days |
| Application: | Cement,coal Dressing, Etc., Rock,quarry,ore,stone,mining,coal | Usage: | Hammer Crusher |
| Weight: | 5-20KG | Key Selling Points: | Long Service Life |
| High Light: | Hammer Head CITIC HIC Machine Parts,High Mn Crusher Hammer Head,ZG120Mn13Cr2 Crusher Hammer Head |
||

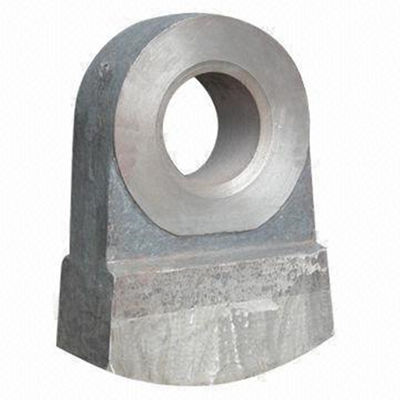

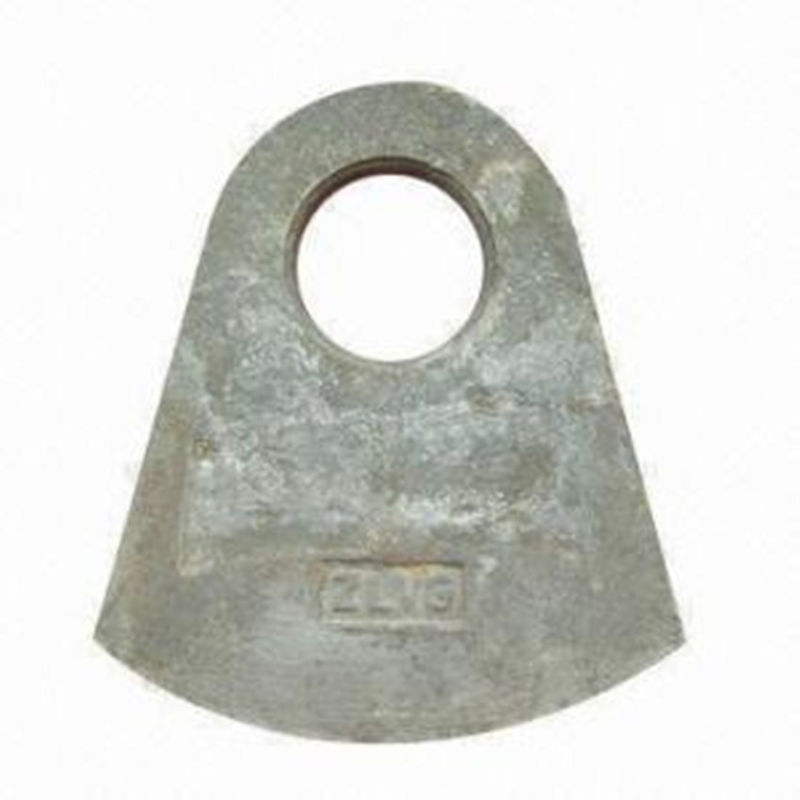

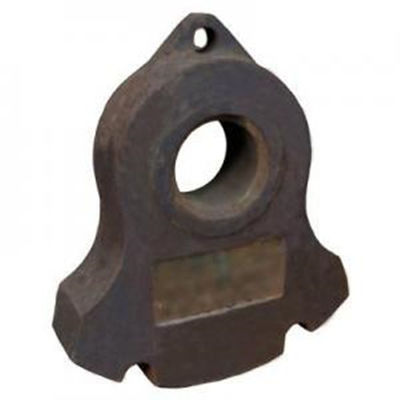

high Mn long service life hammer crusher apare parts hammer head
GENERAL DESCRIPTION
Wear components for crushing processes are subjected to severe impact and high abrasion, requiring components made from impact resistant and abrasion resistant alloys.
We increase crusher availability through:
• Increased wear life
• Less on-going wear part maintenance
• Designs and tools for quicker change out
Details:
| High Mn Imbedding Cemented Carbide Hammer | |
| Alloy steel material | High Mn with Tungsten Titanium Alloy Rod |
| Contral | Spectrometer chemical analysis and control while producing |
| Moulding process | Water-glass sand casting or lost form mould casting |
| Melting facility | Medium frequency electric furnace |
| Heat treatment | Anneal, quenching, tempering |
| Quality Guarantee | One year against manufacturing defeat |
| Testing | Hardness, flaw detector test |
| Suit Filed | Cement, mining,quarry,electricity and metallurgy companies |
| Certificate | ISO9001:2000/ BV/ China Patent No. 200810049101.2 |
Specifications:
| Standard | Chemical component % | |||||
| C | Mn | Si | Cr | S | P | |
| ZG120Mn13Cr2 | 1.05~1.35 | 11~14 | 0.3~0.9 | 1.5~2.5 | ≤0.04 | ≤0.04 |
| ZG120Mn17Cr2 | 1.05~1.35 | 16~19 | 0.3~0.9 | 1.5~2.5 | ||
| Notes:Allowed to join trace V,Ti,Ba and RE and so on. | ||||||
The mechanical properties of the matrix:
| Standard | Lower yield strength Rel MPa |
Tensile strength Rm Mpa |
The section elongation A% | Shock absorption KU2 J |
Hardness HBW |
| ZG120Mn13Cr2 | ≥390 | ≥735 | ≥20 | — | ≤300 |

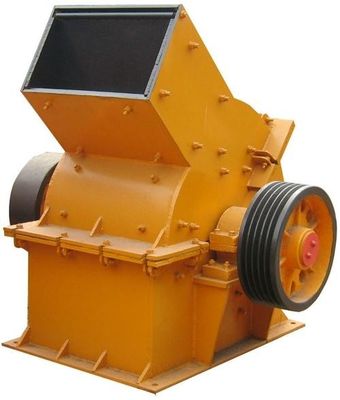

crusher wear parts hammer crusher & crusher hammers

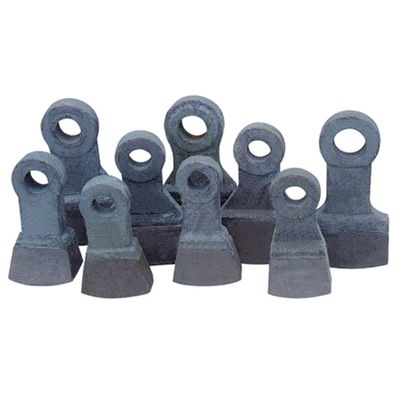

We produce Hammers in One and Two-Piece styles, Grates, Breaker Blocks, Side Liners, Breaker Bar Sleeves, Rotor Hubs, Complete Rotor Assemblies, Top Cover Liners and Throat Collars.
• Grates
• Breaker Blocks
• Side Liners
• Breaker Bar Sleeves
• Rotor Hubs
• Complete Rotor Assemblies
• Top Cover Liners
• Throat Collars
CITICIC is the leader in offering wear solutions to crusher operators in China. We provide wear parts with designs and alloys specifically developed for each application and specific location within each crusher.In addition to the crusher components listed above, we also make cast components for the crusher itself such as the pitman arm, side plates, cheek plates, etc.
