Product Details:
Payment & Shipping Terms:
|
| Cylindrical Gear Reducer: | JGF /MGF Cylindrical Gear Reducer | Application: | Mining |
|---|---|---|---|
| Color: | Customer Requirement | Material: | Cast Iron |
| Type: | Spare Parts | Certification: | ISO/CE |
| Input Form: | 600-750r/min | Output Form: | 20-30r/min |
| Warranty: | 1 Year | Packing: | Customers' Demand |
| High Light: | 30r/Min Worm Gear Speed Reducer,20r/Min Worm Gear Speed Reducer,30r/Min Cycloidal Gear Reducer |
||

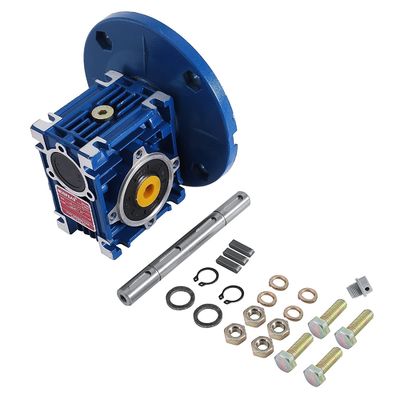

high quality Worm Gear Speed Reducer for mines Cycloidal Gear Reducer
From pumping, to lifting, crushing, harvesting, processing, general manufacturing, or distribution, WorldWide Electric has a full line shaft mount reducers, worm gear reducers, helical inline gear reducers, and helical-bevel gear reducers to keep your operation running smoothly. Featuring reliable industrial-grade designs and drop-in compatibility with major brands, our in-stock gear reducers are ready to meet the demands of almost any application.
1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)
| Models | Output Shaft Dia. | Input Shaft Dia. | Power(kW) | Ratio | Max. Torque(Nm) |
| R/RF18 | 20mm | - | 0.18~0.75 | 3.83~74.84 | 85 |
| R/RF28 | 25mm | 16mm | 0.18~3 | 3.37~135.09 | 130 |
| R/RF38 | 25mm | 16mm | 0.18~3 | 3.41~134.82 | 200 |
| R/RF48 | 30mm | 19mm | 0.18~5.5 | 3.83~176.88 | 300 |
| R/RF58 | 35mm | 19mm | 0.18~7.5 | 4.39~186.89 | 450 |
| R/RF68 | 35mm | 19mm | 0.18~7.5 | 4.29~199.81 | 600 |
| R/RF78 | 40mm | 24mm | 0.18~11 | 5.21~195.24 | 820 |
| R/RF88 | 50mm | 28mm | 0.55~22 | 5.36~246.54 | 1550 |
| R/RF98 | 60mm | 38mm | 0.55~30 | 4.49~289.6 | 3000 |
| R/RF108 | 70mm | 42mm | 2.2~45 | 5.06~245.5 | 4300 |
| R/RF138 | 90mm | 55mm | 5.5~55 | 5.51~223.34 | 8000 |
| R/RF148 | 110mm | 55mm | 11~90 | 5.00~163.46 | 13000 |
| R/RF168 | 120mm | 70mm | 11~160 | 8.77~196.41 | 18000 |
