| Product Name: | Mill Liner | Application: | Energy & Mining |
|---|---|---|---|
| Advantage: | Wear Resistant | Diameter: | Customization |
| Usage: | Grinding Equipments | Key Words: | Mill Liners |
| Weight: | Piece | Quality: | ISO/CE |
| Feature: | Longer Service Life | Process: | Casting |
| High Light: | HRA65 Ball Mill Shell Liners,17MPA Ball Mill Shell Liners,17MPA grinding mill liners |
||
Customized Wear Resistant mill liner longer service life few energy comsumption

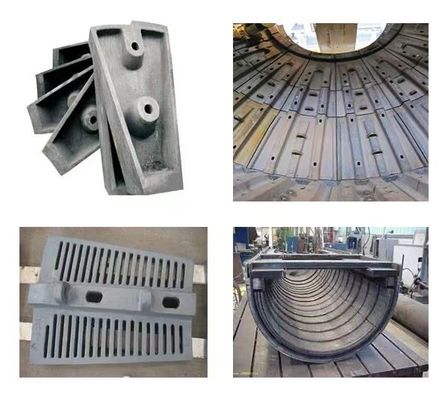

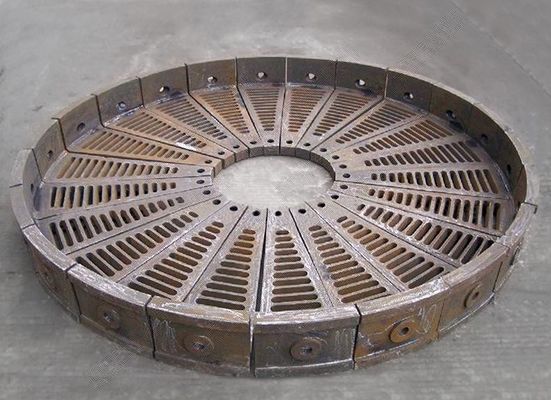

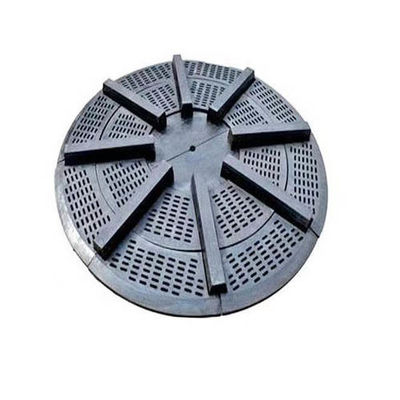

Liner is mainly used in AG Mill, SAG Mill, Ball mill, Bar mill and other grinding equipments. Customers cover mining, cement, chemical industry, building materials, metallurgy and other fields.
Product advantages
1. shock resistance, corrosion resistance, wear resistance, acid and alkali resistant,
2. light weight,
3. lower noise,
4. few energy comsumption,
5. longer service life,
6. east installation and so on.
| Indicator name | Unit | Standard |
| Tensile strength | Mpa | 17 |
| elongation | % | 420 |
| permanent deformation | % | 10 |
| 300% tensile strength | Mpa | 11 |
| Impact elasticity | % | 45 |
| Wear reduction | cm³/1.61km | 0.15 |
| Shore (a) hardness | 65±5 | |
| Aging coefficient (70℃*48h) | 0.8 |
China's current general wear resistant material series of high manganese steel series: such as high manganese steel (ZGMN13),
High manganese alloy (Zgmn13Cr2MoR), ultra-high manganese alloy (Zgmn18Cr2MoR), etc.
High manganese steel (such as ZGMN13) under severe impact or contact stress, its surface will rapidly harden, while the core still maintains a strong toughness, hard outside and tough inside both wear resistance and impact resistance.And the heavier the impact on the surface, the more full the surface hardening, the better the wear resistance.Because the hardness of high manganese steel itself is very low (HB170-230), the wear resistance is extremely limited before hardening. If the surface of high manganese steel is not enough to bear the impact force, the surface can not be fully hardened (after full hardening, the surface hardness can reach HB550 or below, otherwise), then the wear resistance will not play a role, and the wear resistance will not be shown.
Because Zgmn18Cr2 contains more manganese, the surface hardening can be more sufficient, so more wear-resistant.
Of course, ZGMN18Cr2 series (such as ZGMN18Cr2MORE) is also more expensive than ZGMN13 series.
materials list
| ITEM | REMARK |
| mine ball mill liner materials | ZGMN13CR2 |
| CEMENT BALL MILL LINER MATERIALS | MID-CHROME ALLOY |

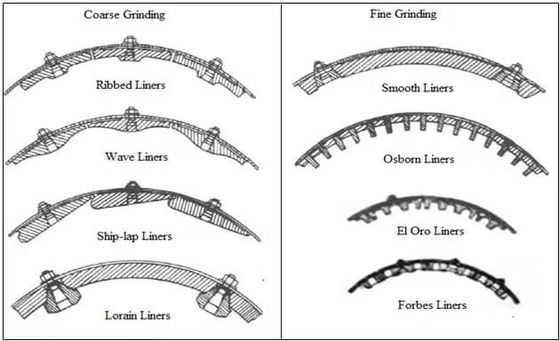

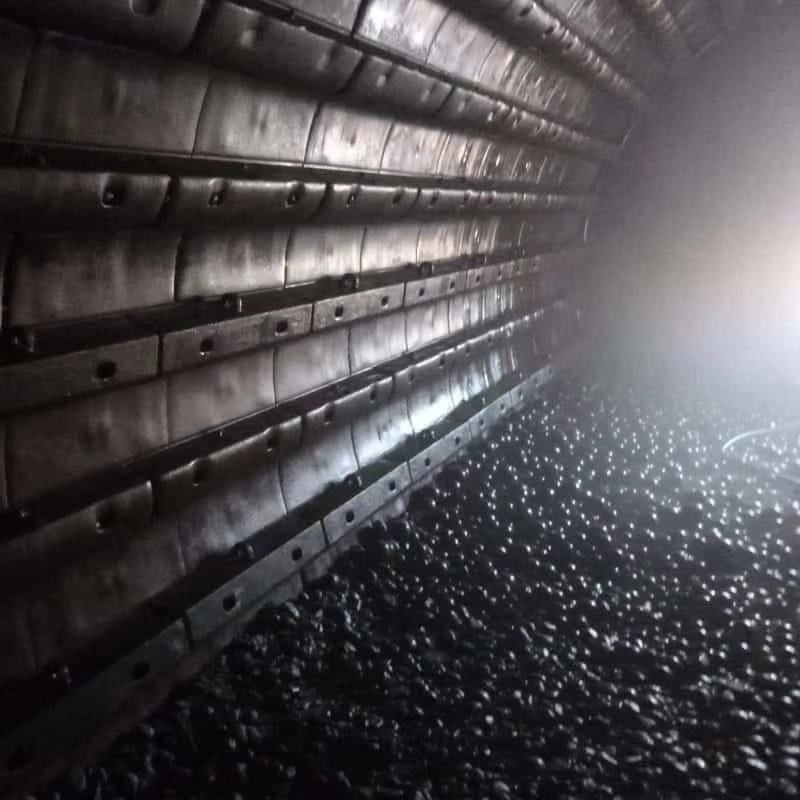

Ball mill lining plate is used to protect the cylinder body, so that the cylinder body from the direct impact and friction of the grinding body and materials, but also can use different forms of lining plate to adjust the motion state of the grinding body, to enhance the grinding effect of the grinding body on the material, help to improve the grinding efficiency of the mill, increase output, reduce metal consumption.

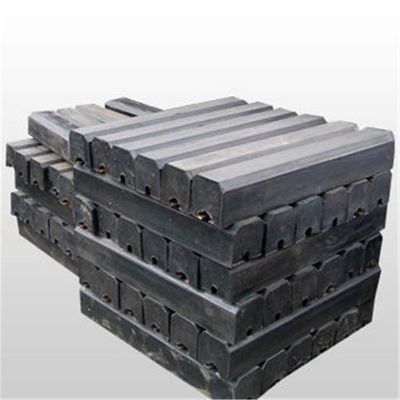

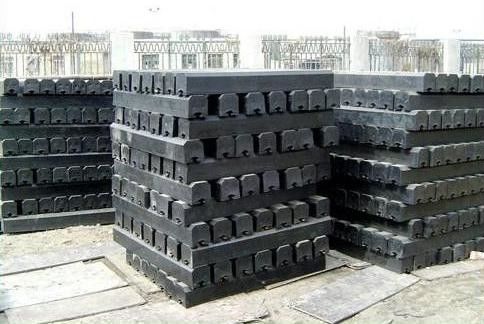

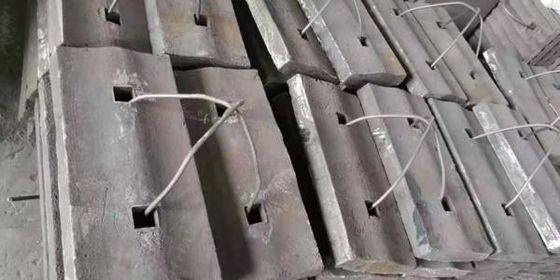

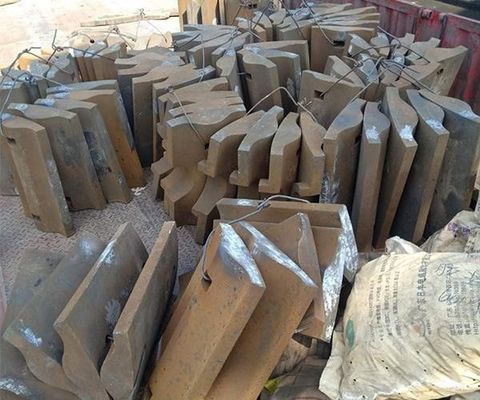

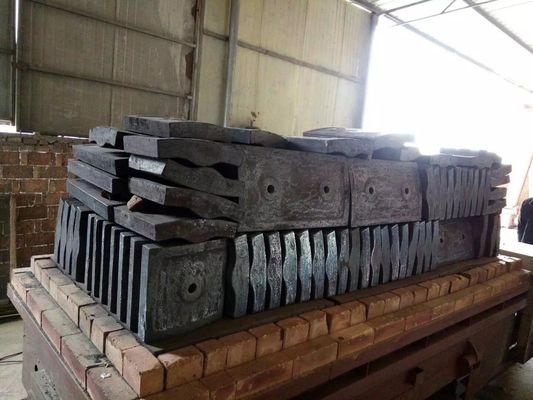

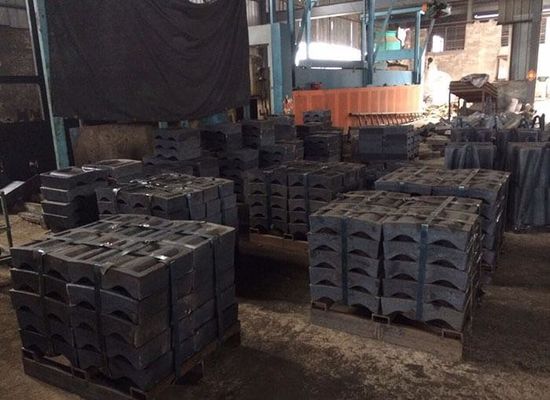

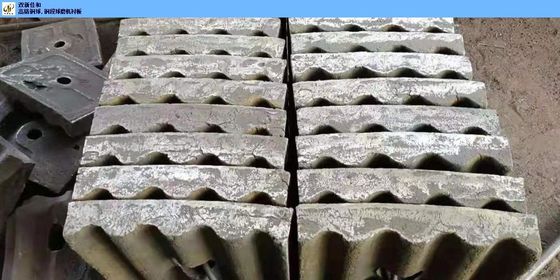

ball mill liner factory show
