High Capacity 150x250mm Stone Crusher Machine Vertical Shaft Impact Crusher

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

High Capacity 150x250mm Stone Crusher Machine Vertical Shaft Impact Crusher

High Capacity 150x250mm Stone Crusher Machine Vertical Shaft Impact Crusher
High Capacity 150x250mm Stone Crusher Machine Vertical Shaft Impact Crusher High Capacity 150x250mm Stone Crusher Machine Vertical Shaft Impact Crusher High Capacity 150x250mm Stone Crusher Machine Vertical Shaft Impact Crusher High Capacity 150x250mm Stone Crusher Machine Vertical Shaft Impact Crusher High Capacity 150x250mm Stone Crusher Machine Vertical Shaft Impact Crusher

Large Image :  High Capacity 150x250mm Stone Crusher Machine Vertical Shaft Impact Crusher

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Discharge Opening (mm): 10-400 Feed Opening (mm): 150x250-1600x2100
The Machines Classification: Crushing Equipment Max Feeding Size: 180mm
Output Size: 5-75mm Rotation Speed Of Eccentric Shaft: 160-330(r/min)
High Light:

150x250mm Stone Crusher Machine

,

150x250mm Vertical Shaft Impact Crusher

,

150x250mm stone impact crusher

good performance high capacity crushing equipment vertical shaft impact crusher

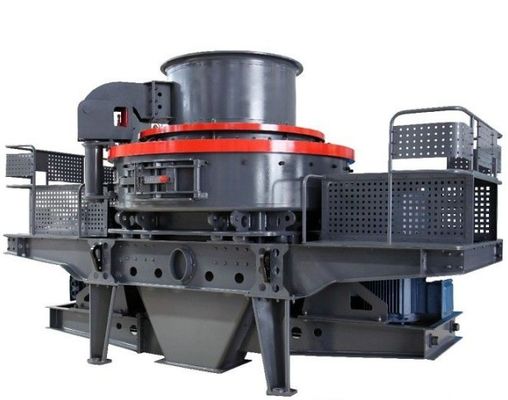

PCL vertical impact crusher:
The equipment is widely used in metal and nonmetal ore, cement, refractories, abrasives, glass raw materials, construction aggregate, artificial sand and various metallurgical slag crushing and coarse grinding, especially on the hard, hard and abrasive materials such as silicon carbide, corundum, sintered bauxite, magnesite, with more better than other types of crusher machine

crusherhammer crusher





PCL series vertical impact crusher equipment characteristics:
1, the unique design of the rotor and cavity, a large amount of processing and a high rate of sand, product grain type, needle flake content is low, pushing density
2, the material and material from the collision and self lining mechanism to reduce the contact between the material and the metal, to extend the life of the wearing parts, reducing the iron contamination of finished products
3, the unique wear-resistant structure and material to extend the service life, reduce operating costs
4, special rotation structure, so that the equipment running at high speed, can be equipped with automatic control system, electric hoist, hydraulic hoist device, vibration sensor device, the cumulative boot timing device to ensure the safe operation of equipment
5, the clever design of the internal air circulation to eliminate the dust dispersion
6, the structure is simple, easy to operate and maintain, is a new technology, new technology fully reflected



impact crusherimpact crusher

Application of PCL vertical impact crusher (sand making machine):
1 river pebbles, rocks (limestone, granite, basalt, diabase, andesite), ore tailings, artificial sand stone chips.
2 the construction of aggregate, road fabric, cushion material, asphalt concrete and cement concrete aggregate production
3 water conservancy and hydropower projects, high grade highways, highways, high-speed railway, passenger dedicated lines, bridges, airport runways, municipal engineering, the production of high - rise building machinery and stone shaping
4 mining sector grinding before the crushing process, building materials, metallurgy, chemical industry, mining, refractories, cement, abrasive and other industries, the material is broken
5 high abrasive and the disintegration of the two crushing, thermal power, metallurgical industry in addition to sulfur, steel slag, construction waste crushing and other environmental projects
6 glass, quartz sand and other high purity materials production

Specification datas:
model feeding size(mm) power(kw) Impeller speed (r/min) processing capacity(t/h) Dimension(mm) Weight (including motor)(t)
PCL-750 45 2×55 1700-2000 50-90 3300×1800×2440 7.3
PCL-800 55 2×75 1400-1620 80-150 3750×2120×2090 12.1
PCL-900 65 2×90 1300-1550 100-180 3750×2300×2660 13.6
PCL-1050 80 2×(132-160) 1200-1400 180-350 4480×2450×3906 16.9
PCL-1250 100 2×(220-250) 1000-1100 310-580 4563×2650×3716 22
PCL-1350 110 2×(250-280) 900-1000 400-650 5340×2940×3650 26
