HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring

HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring
HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring

Large Image :  HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Product Name: Roller Bearing Application: Machine Tools/mining Plant/power Plant
Feature: High Speed, Long Life Hardness: Chrome Steel HRC60-HRC65
High Light:

22308MA Roller Bearing Slewing Ring

,

HRC65 Roller Bearing Slewing Ring

,

22308MA Ball Bearing Slewing Ring

OEM Customized Services roller bearing ball bearing slewing ring

Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction. They are also extremely resistant to shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in purpose to Self-Aligning Double Row Ball Bearings, except the Spherical Roller Bearings are designed to be more robust by carry heavier loads but at lower maximum speeds. These bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. They are self-aligning because the center of curvature of the outer ring raceway surface coincides with the bearing axis. Standard Spherical Roller Bearings are produced with straight bores; however, tapered bores are available upon request and may be mounted directly on tapered shafts. Pressed steel and machined brass cages are typically used.
HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring 0
High speed :Products and machinery rotate evenly and persistently
Low noise: The product has long-lasting corrosion resistance to create a good appearance
Corrosion resistance: Products with good high temperature resistance for long-lasting operation
High temperature resistance: First of all, our craft should be precise and not a little sloppy
HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring 1
Product Paramenters

d
D
B
straight hole
tapered hole
40
90
33
22308MA
22308MAK
45
100
36
22309MA
22309MAK
50
110
40
22310MA
22310MAK
55
120
43
22311MA
22311MAK
60
130
46
22312MA
22312MAK
65
140
48
22313MA
22313MAK
70
150
51
22314MA
22314MAK
75
160
55
22315MA
22315MAK
80
170
58
22316MA
22316MAK
85
180
60
22317MA
22317MAK
90
190
64
22318MA
22318MAK
95
200
67
22319MA
22319MAK
100
215
73
22320MA
22320MAK
110
240
80
22322MA
22322MAK
120
260
86
22324MA
22324MAK
130
280
93
22326MA
22326MAK
140
300
102
22328MA
22328MAK
150
320
108
22330MA
22330MAK
160
340
114
22332MA
22332MAK
170
360
120
22334MA
22334MAK

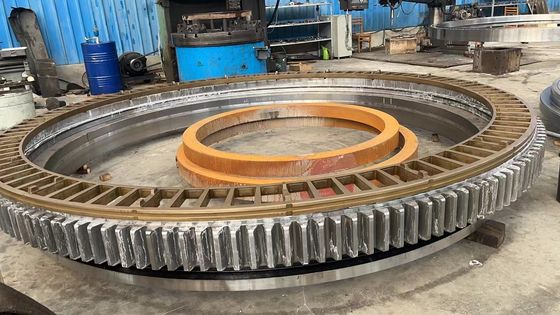

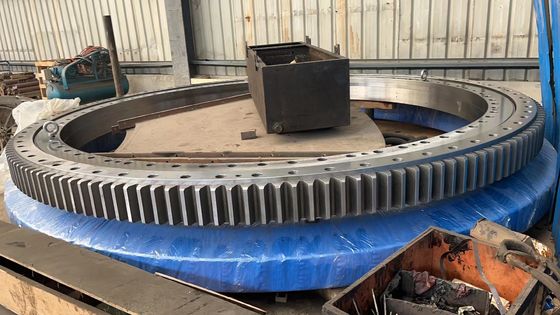

HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring 2HRC65 22308MA Roller Bearing Slewing Ring Ball Bearing Slewing Ring 3
