Product Details:
Payment & Shipping Terms:
|
| Product Name: | Lateritic Nickel Kiln | Applicable Industry: | Lateritic Nickel Ores |
|---|---|---|---|
| Key Words: | Rotary Kiln | Model: | Y52118 |

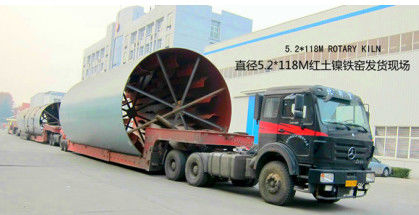

| Specification: | 5.2*118m | Type: | Double-driving |
| Kiln Supporting: | 5 | Slope: | 3.5% |
| Rotating Speed: | 0.2 ~1.233r/min | Sealing Mode: | Flexible Sealing |
| High Light: | 1.233r/Min Cement Rotary Kiln,5.5×115m Cement Rotary Kiln,5.5×115m Lateritic Nickel Rotary Kiln |
||
ZTIC professional Φ5.5×115m Lateritic Nickel Rotary Kiln Rotary kiln
Description of Lateritic Nickel Rotary Kiln:

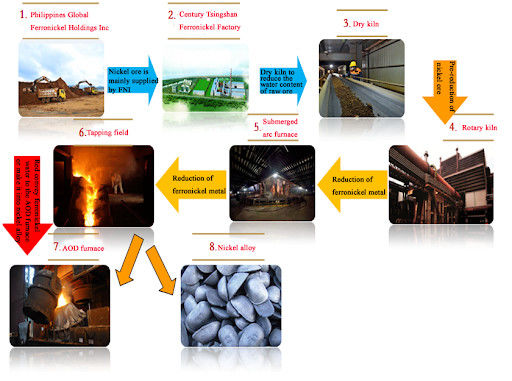

Our lateritic nickel rotary kiln is mainly used to smelt lateritic nickel ores so as so get nickel pig iron. So far ZTIC has successfully carried out many projects in China, such as Guangqing in Guangdong Province, Dingxin in Fujian Province, Qingshan in Zhejiang Province, Linyi in Shandong Province, and more.
ZTIC Lateritic Nickel Rotary Kiln technical characteristics:
Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding;
Tyre,Support Roller,Open gear adopts alloy cast steel;
Sliding bearing with large gap not scraping tile bearing;
Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor;
Adopts hydraulic gear wheel;
Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal;
A slow drive device.
Technical Parameters ofΦ5.5×115m Lateritic Nickel Rotary Kiln:
| Name | Description | Unit |
| Equipment name | Rotary kiln | |
| Specification | Φ5.5×115m | |
| Application | Roasting laterite ores | |
| Amount | 1 | Set |
| Output | 80-100(roasted sand) | t/h |
| Driving mode | Double driving | |
| Type of thrust roller | Hydraulic thrust roller | |
| No. of support | 4 | |
| Slope ( sine) | 3.0% | |
| Rotating speed | ||
| Driving mode | Bilateral double-driving | |
| Main driving | 0.2~1.2 | r/min |
| Auxiliary driving | 6.7 | r/h |
| Sealing mode of kiln head | Sheet steel (provisional) | |
| Sealing mode of kiln end | Air cylinder | |
| Cooling of kiln head | Air cooling | |
| Rotating direction | Clockwise (from discharging end) | |
| Total weight | 1648 ( excluding feed and discharge cover) | t |
| Temperature of discharged materials | 750~850 | ℃ |
| Temperature of waste gases | 200~400 | ℃ |
| Thickness of refractory bricks | 230 |
Established in 1958, ZTIC Co., Ltd is a professional manufacturer of lateritic nickel rotary kiln in China. Besides lateritic nickel rotary kiln, we also provide customers worldwide with magnesium rotary kiln, titanium dioxide rotary kiln, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our lateritic nickel rotary kiln, please contact us freely.
