Product Details:
Payment & Shipping Terms:
|
Product Name: | Vibrating Feeder | Model: | GZD,ZSW Series |
---|---|---|---|
Capacity(t/h): | 15 ~ 1300 T/H | Weight: | 110 ~ 3700 Kg |
Material Size: | 120 ~ 800 Mm | Motor Speed: | 1450 R/m |
Conveying Length: | 0 ~ 9 Meter | Materials Granularity: | 10~0.1MM |
Feed Particle Size: | 10-0.7mm | Layer(s): | 2 Decks |
Screen Mesh Size: | 2-150 Mesh | ||
High Light: | 1300 T/H Linear Vibrating Screen Sieve,15T/H Linear Vibrating Screen Sieve,Clay linear motion vibrating screen |

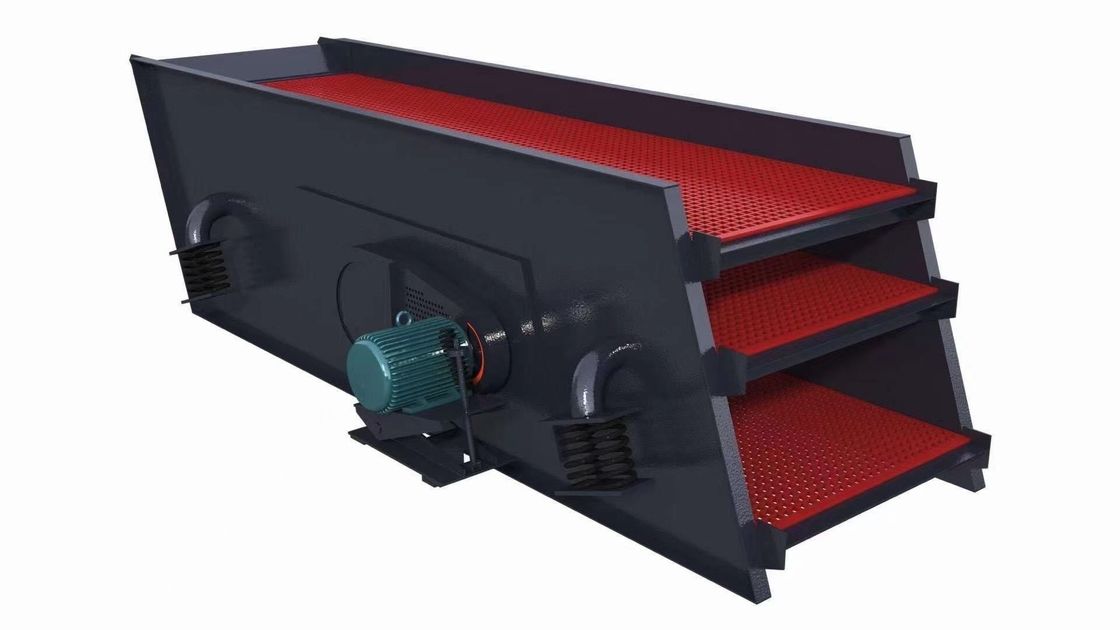

China efficiency large capacity linear vibration screen sieve for clay
Working Principle of Vibrating Feeder
The ore vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through vibration, the materials will slip and sling on the funnel, moving forward, and when the materials pass the screening part, smaller parts will fall down, thus avoiding the further crushing, and therefore, screening purpose can be reached. |
- vibration is activated by one or two vibrating motors with adjustable out-of-balance force;
- vibration develop in the horizontal and in the vertical plane and can be settled in both directions;
- vibrating motor design allows to adjust easily the counterweight and modify the vibration to find the best way to sieve a product (for gentle screening, long residence times, high throughputs or difficult-to-screen products);
- high screening efficiency both with liquid and solid products;
- vibrating motor are standard and provide reliable power;
- rectangular separators are provided with high quality suspension that virtually eliminates transmitted vibrations;
- screens are easy and fast to change and can be equipped with rubber balls cleaning system;
- built on customer request with carbon steel, stainless steel AISI 304, stainless steel AISI 316.
