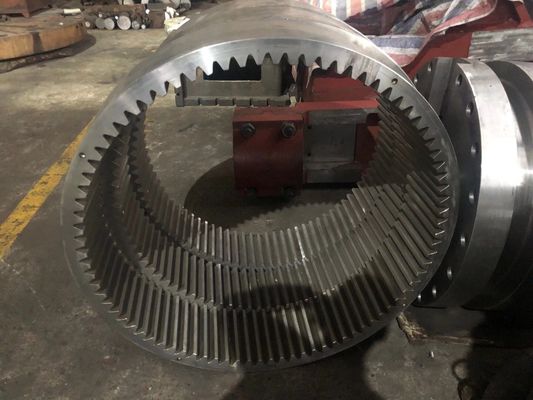

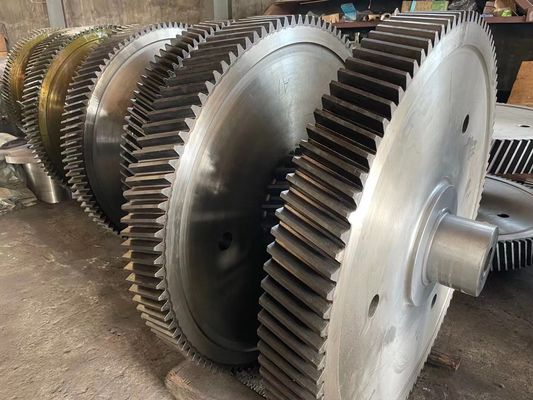

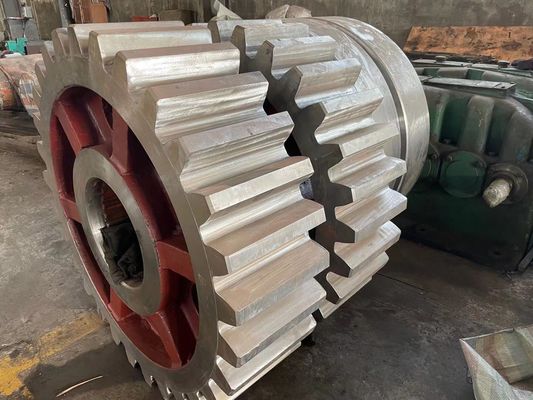

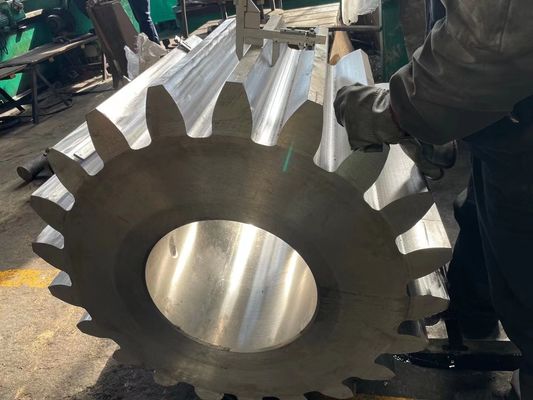

Precision Machining Steel Drive Gear And Spur Helical Pinion Gear Dia 16000mm

Precision Machining Steel Drive Gear And Spur Helical Pinion Gear Dia 16000mm
Precision Machining Steel Drive Gear And Spur Helical Pinion Gear Dia 16000mm
video play

Large Image :  Precision Machining Steel Drive Gear And Spur Helical Pinion Gear Dia 16000mm

Product Details:
Place of Origin: Henan, China
Brand Name: ZTIC
Certification: ISO,CE,RoHS
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $3,000.00
Packaging Details: Standard packing or according to customer's requirement
Delivery Time: 1month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 Set/Sets per Year
Detailed Product Description
Name: Small Pinion Gear Material: Steel
Condition: New Processing Type: Forging
Machine Type: Rotary Kiln And Ball Mill Certificate: ISO9001:2015
Surface Treatment: Painting Key Words: Pinion,pinion Gear,small Gear
Port: QingDao,ShangHai,TianJin Packing: Wooden Box
High Light:

16000mm Spur Helical Pinion Gear

,

Cnc Machining Helical Pinion Gear

,

16000mm helical rack and pinion

Factory manufacture China precision cnc machining steel drive gear and spur helical pinion gear

Product Description



ZT Pinion Gears offered find extensive application in Sponge Iron Plants that have running capacities of -50TPD, 100TPD, 300TPD, 350TPD, 500TPD. Further, these also provide functionality as integral pinion shaft for cement plants/ball mills and as pinion & pinion assemblies for Phosphate mining plants, Alumina, Kaolin-Bentonite plants and others. Further, we can also custom design these in finish specifications as demanded by the customers.

Pinion for:-

  • Sponge iron plant-50TPD, 100TPD,300TPD,350TPD,500TPD

  • Integral pinion shaft for cement plant or ball mills

  • Pinion & pinion assemblies for Alumina, kaolin-bentonite plants, phosphate mining plant

Main Type of pinion applications as given below for the all above mentioned plants:

  • Kiln Pinion

  • Cooler pinion

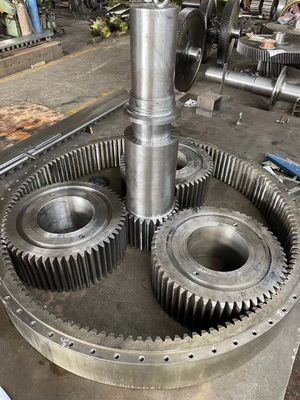

  • Pinion shaft

  • Pinion assembled with shaft, bearings, plummer blocks

  • Integral pinion shaft upto 3 mtr total lentgh.

  • Pinion gear material

    42CRMO STEEL DATA

    CHEMICAL LIST

    C : 0.38-0.45%

    Si: 0.17-0.37%

    Mn: 0.50-0.80%

    S : Allow residual content <0.035%

    P : Allow residual content <0.035%

    Cr: 0.90-1.20%

    Ni: Allow residual content <0.030% Cu: Allow residual content <0.030%

    Mo: 0.15-0.25%

    MECHANICAL DATA

    Tensile Strength σb (MPa): >1080(110)

    Yield point σs (MPa): >930(95)

    Elongation σ5 (%): >12

    Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy Akv(J): >63

    Impact toughness value αkv (J/cm2): >78(8)

    Hardness: <217HB

    Sample size: The blank size of the sample is 25mm

    PHYSICAL DATA

    Critical point temperature (approximate value): Ac1=730℃, Ac3=800℃, Ms=310℃

    Linear expansion coefficient: temperature: 20~100℃/20~200℃/20~300℃ /20 ~400℃/20~500℃ /20~600℃

    linear expansivity: 11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K

    Modulus of elasticity: temperature 20℃/300℃/400℃/500℃/600℃,

    Elastic modulus 210000MPa/185000MPa/ 175000MPa/165000MPa/15500oMPa

Product Name

High Precision steel material Custom small pinion gear

Applications

Our girth gears are applied in the cement and minerals industries

Kiln Girth Gears

We are leading supplier the Kiln Girth Gears for the various plants

ball mill Girth Gear

applied in the cement and minerals industries

Gear Cutting Machines

16m CNC Hobbing Machine

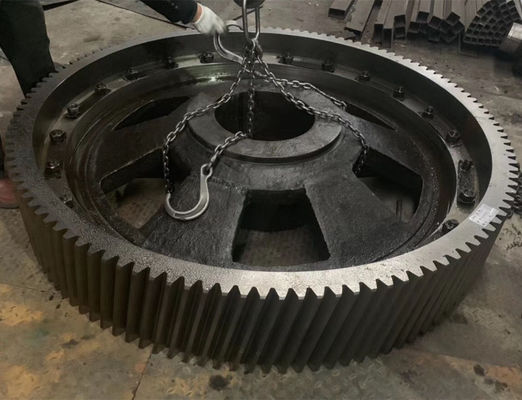

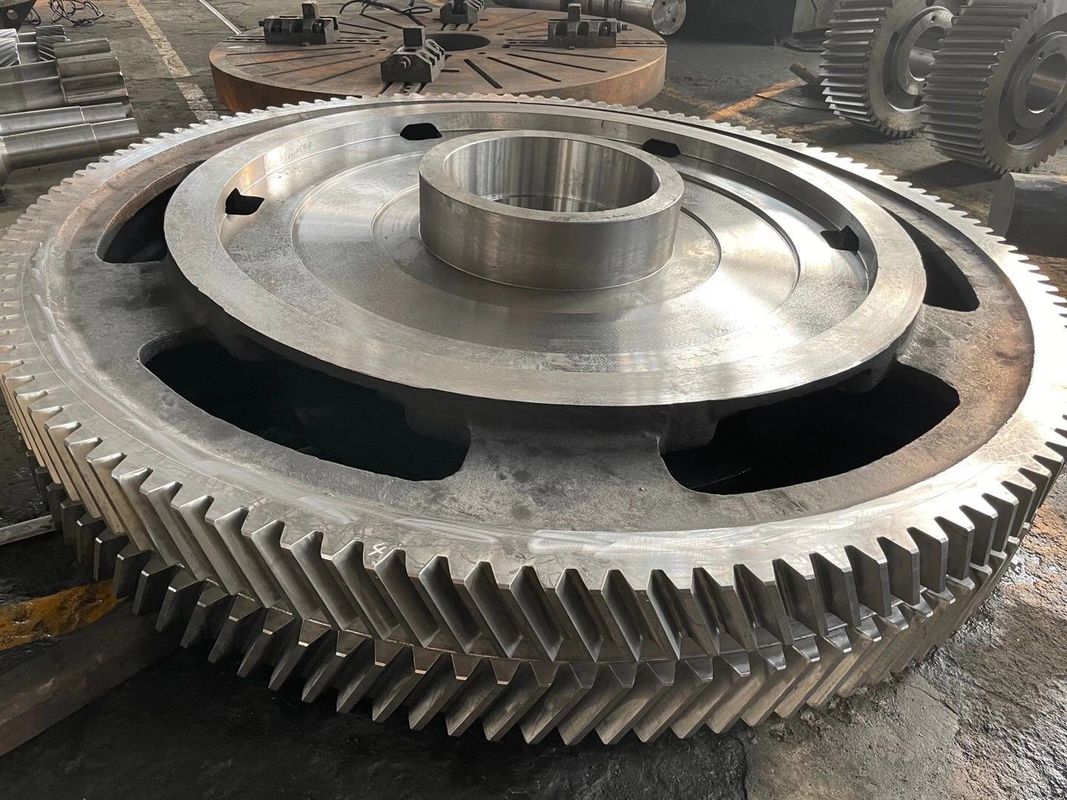

Girth gear

Rotary kiln Girth Gear and ball mill Girth Gear

Diameter

Min 100 mm to 16000 mm Girth Gear

Weight

Max 120 MT single piece

module range

10 Module to 70 Module

Standards/Certificates

ISO,CE

Maximum module

45 by hob



Gear And Spur Helical Pinion Gear



Precision Machining Steel Drive Gear And Spur Helical Pinion Gear Dia 16000mm 0

Gear And Spur Helical Pinion Gear



Precision Machining Steel Drive Gear And Spur Helical Pinion Gear Dia 16000mm 1

Gear And Spur Helical Pinion Gear
