Name: | Small Pinion Gear | Material: | Steel 42CRMO/17crnimo6 |
---|---|---|---|
Condition: | New | Processing Type: | Forging |
Machine Type: | Rotary Kiln And Ball Mill | Certificate: | ISO9001:2015 |
Surface Treatment: | Painting | Key Words: | Pinion,pinion Gear,small Gear |
Accuracy Grade Of Gear: | Up To Grade 6 | Packing: | Wooden Box |
High Light: | 70 Module Spur Gear Pinion,10 Module Spur Gear Pinion,70 Module spur rack and pinion |

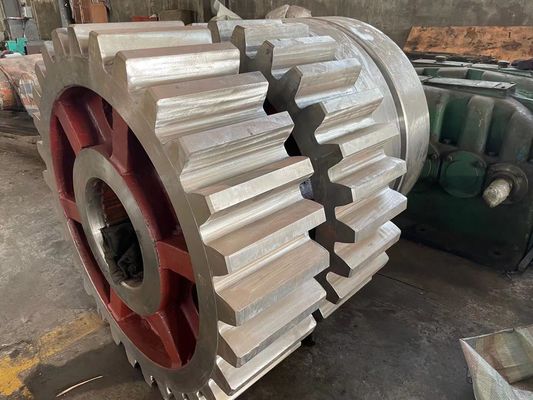

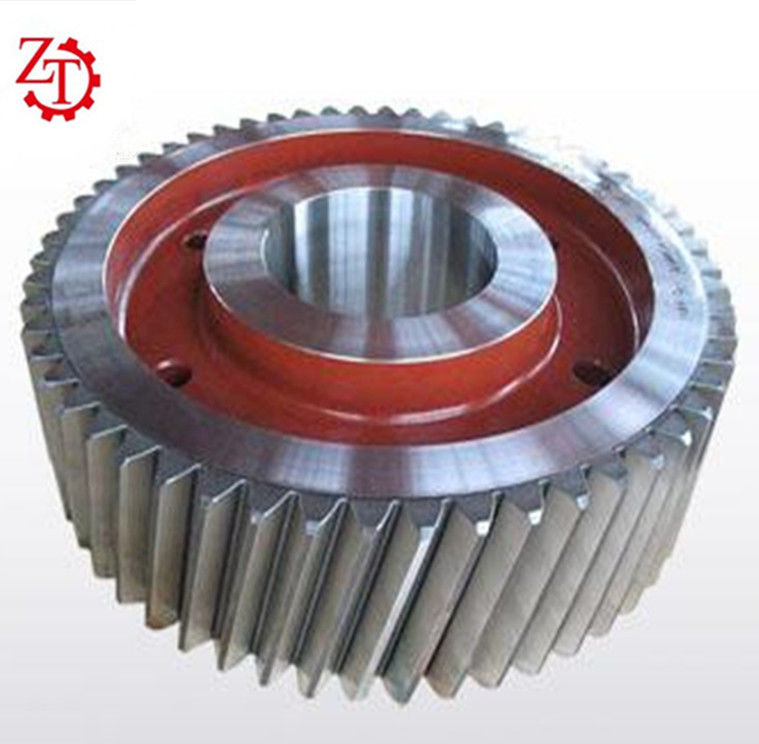

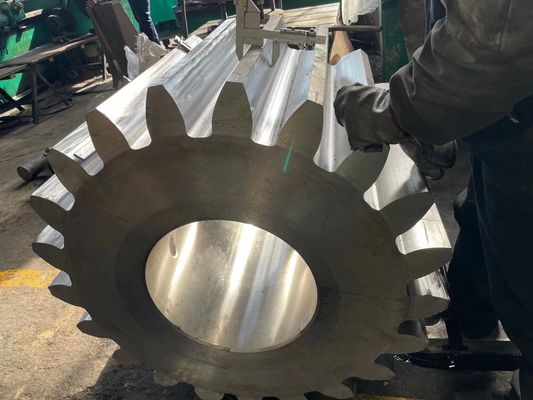

Customized OEM mill pinion gear rotary kiln pinion gear with materilas 42crmo steel
ZT Pinion Gears offered find extensive application in Sponge Iron Plants that have running capacities of -50TPD, 100TPD, 300TPD, 350TPD, 500TPD. Further, these also provide functionality as integral pinion shaft for cement plants/ball mills and as pinion & pinion assemblies for Phosphate mining plants, Alumina, Kaolin-Bentonite plants and others. Further, we can also custom design these in finish specifications as demanded by the customers.
Pinion for:-Sponge iron plant-50TPD, 100TPD,300TPD,350TPD,500TPD
Main Type of pinion applications as given below for the all above mentioned plants:
Item | Customized machined machining gears | |
Process | CNC machining,CNC milling, cnc lathe machining | |
material | steel, stainless steel, carbon steel,brass,C360 brass copper, aluminum 7075,7068 brass,C360 brass copper, aluminum Nylon, PA66, NYLON , ABS, PP,PC,PE,POM,PVC,PU,TPR,TPE,TPU,PA,PET,HDPE,PMMA etc | |
Quality Control | ISO9001 and ISO14001 | |
Dimension bore tolerances | -/+0.01mm | |
Quality standard | AGMA, JIS, DIN | |
Surface treatment | Blackening, plated, anodizing, hard anodizing etc | |
Gear hardness | 30 to 60 H.R.C | |
Size/Color | Gears and parts dimensions are according to drawings from customer, and colors are customized | |
Surface treatment | Polished or matte surface, painting, texture, vacuum aluminizing and can be stamped with logo etc. | |
Dimensions Tolerance | ±0.01mm or more precise | |
Samples confirmation and approval | samples shipped for confirmation and shipping cost paid by customers | |
Package | Inner clear plastic bag/outside carton/wooden pallets/ or any other special package as per customer's requirements. | |
Delivery Time | Total takes 2~~8weeks usually | |
Shipping |
|
Product Name |
High Precision steel material Custom small pinion gear |
Applications |
Our girth gears are applied in the cement and minerals industries |
Kiln Girth Gears |
We are leading supplier the Kiln Girth Gears for the various plants |
ball mill Girth Gear |
applied in the cement and minerals industries |
Gear Cutting Machines |
16m CNC Hobbing Machine |
Girth gear |
Rotary kiln Girth Gear and ball mill Girth Gear |
Diameter |
Min 100 mm to 16000 mm Girth Gear |
Weight |
Max 120 MT single piece |
module range |
10 Module to 70 Module |
Standards/Certificates |
ISO,CE |
Maximum module |
45 by hob |
Pinion gear material
42CRMO STEEL DATA
CHEMICAL LIST
C : 0.38-0.45%
Si: 0.17-0.37%
Mn: 0.50-0.80%
S : Allow residual content <0.035%
P : Allow residual content <0.035%
Cr: 0.90-1.20%
Ni: Allow residual content <0.030% Cu: Allow residual content <0.030%
Mo: 0.15-0.25
MECHANICAL DATA
Tensile Strength σb (MPa): >1080(110)
Yield point σs (MPa): >930(95)
Elongation σ5 (%): >12
Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy Akv(J): >63
Impact toughness value αkv (J/cm2): >78(8)
Hardness: <217HB
Sample size: The blank size of the sample is 25mm
PHYSICAL DATA
Critical point temperature (approximate value): Ac1=730℃, Ac3=800℃, Ms=310℃
Linear expansion coefficient: temperature: 20~100℃/20~200℃/20~300℃ /20 ~400℃/20~500℃ /20~600℃
linear expansivity: 11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K
item | description |
normal materials | 35simn, 42crmo steel |
better materials | 17crnimo6, 20crnimoA |
company show
Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
ZTIC's Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
ZTIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2. We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
