Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pinion Shaft | Hobbing Modulus: | 10-60 |
|---|---|---|---|
| Milling Modulus: | Up To 120 | Heat Treatment: | Quenching&Tempering, Surface Quenching |
| Spiral Modulus: | 1-15 | Accuracy Grade: | 6-8 |
| Warranty: | 12 Months | Spec: | Custom |
| High Light: | 120 Modulus Gear Pinion Shaft,Gear Pinion Shaft For Mining Mill,120 Modulus shaft pinion gear |
||

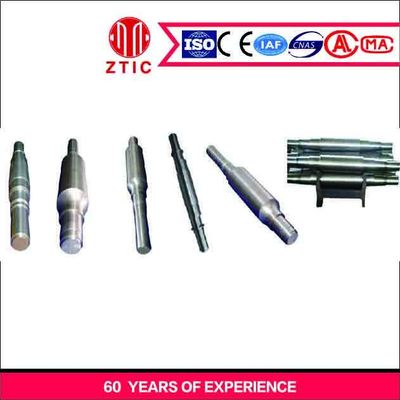

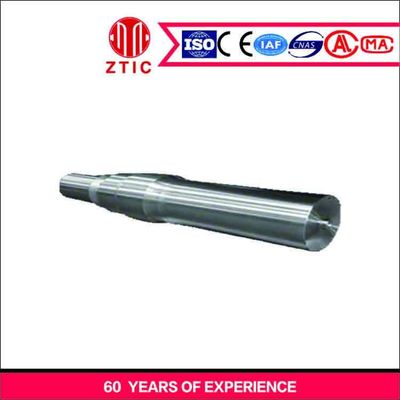

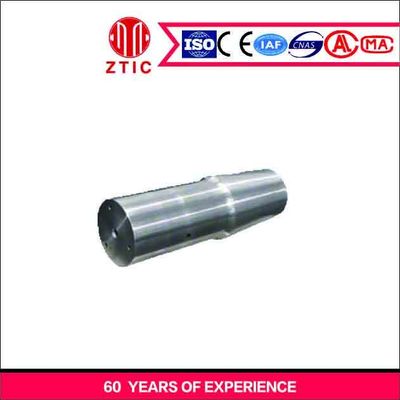

custom high quality casting steel pinion shaft for mining mill and cone crusher
ball mill is a kind of wide application of mine, pinion shaft is a very important part.
pinion shaft has three types:
(1) with the cone with cylinder with ladder shaft, such as domestic, the former Soviet union, G type crusher, simmons standard and 600 short head type crusher;
(2) with the cone cylinder with no ladder shaft, such as rotary disc crusher and simmons short head type crusher;
(3) cooperate with cone USES cone shaft, such as AC at the bottom of the single-cylinder hydraulic cone crusher, the top Japanese chestnut the blacksmith single-cylinder hydraulic cone crusher.
| Specification | Machining Scope |
| Size | OD Max 16m |
| One Piece of Gear: OD Max 13m | |
| Assemble Gear: According to drawings | |
| Hobbing Modulus | 10-60 |
| Milling Modulus | Up to 120 |
| Spiral Modulus | 1-15 |
| Accuracy Grade | Milling: 6 grade |
| Hobbing: 8 grade | |
| Material | Alloy steel: 42CrMo4, 34CrNiMo6 etc. |
| Carbon steel: C45E, 1030 | |
| Carburizing steel | |
| Quenched and tempered steel | |
| Heat treatment | Quenching&Tempering, Surface Quenching |

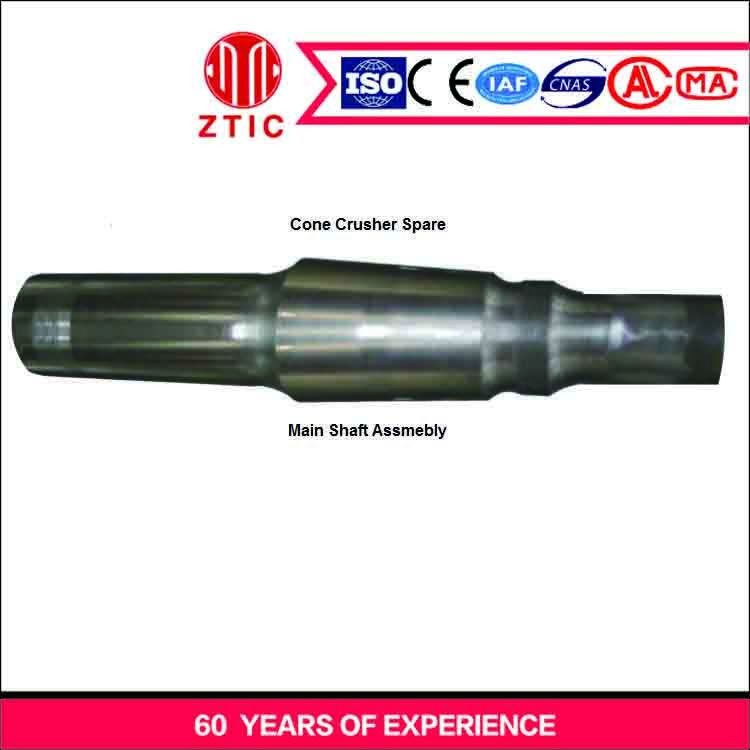

cone crusher Main shaft structure:
(1) dynamic cone plate mounted on the cone and plate between the cone and casting plastic packing, at the same time with the spindle nut from top to down tight by gas cutting ring lining board.Removing moving cone plate, to use oxygen cutting ring cut, lining board would be easy to remove.
(2) the main part of the top with beam bushing is equipped with the main shaft bushing, protect the spindle from wear and tear.
(3) the dust-proof sealing ring with ring retainer at the bottom of the cone, retaining ring by bolt is fixed on the cone.Dust-proof sealing ring can be freely along the collar on the trace of sliding surface, to ensure the consistent with dust cover.In order to prevent the ore grain accumulation on the outside of dust cover, under the collar also is equipped with a rubber scraper.
Except the main shaft, we can also supply most others spare parts for the crusher, such as : Main frame assembly , concave and mantle,adjustment ring assembly, head assembly, bowl assembly, movable jaw assembly, wear plate assembly, eccentric bushing,main frame bushing, protection bushing, upper bushing, all kinds of seal ring, wedges, we get these original parts from the same OEM factory, that’s why we can promise the 100% original quality.
Aftersales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
