| POWER: | 2*37kw | Main Reducer: | Planet Reducer |
|---|---|---|---|
| Thick Oil Pump: | Automatic | Mixer Model: | JS2000 |
| High Light: | Cement Mixer Heavy Duty Construction Machinery,ROHS Construction Cement Mixer,Automatic Heavy Duty Cement Mixer |
||

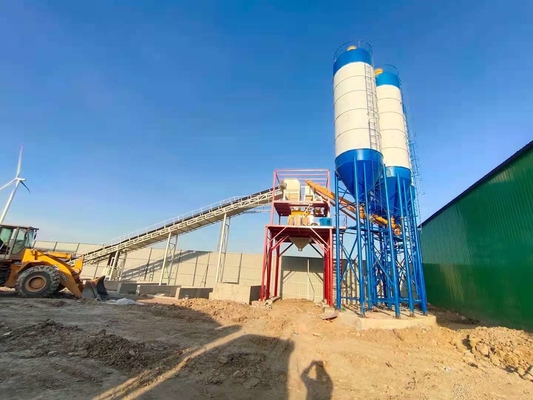

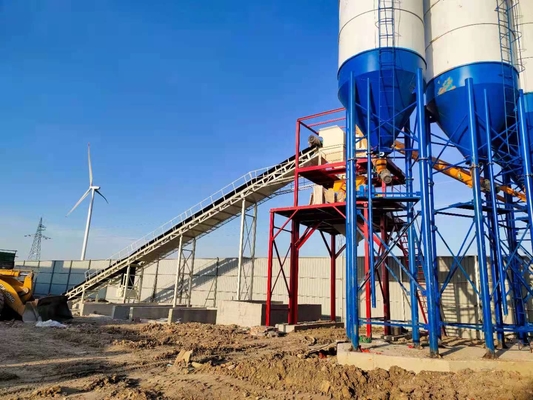

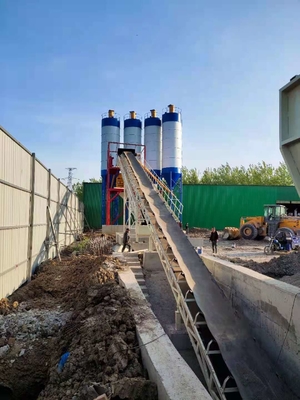

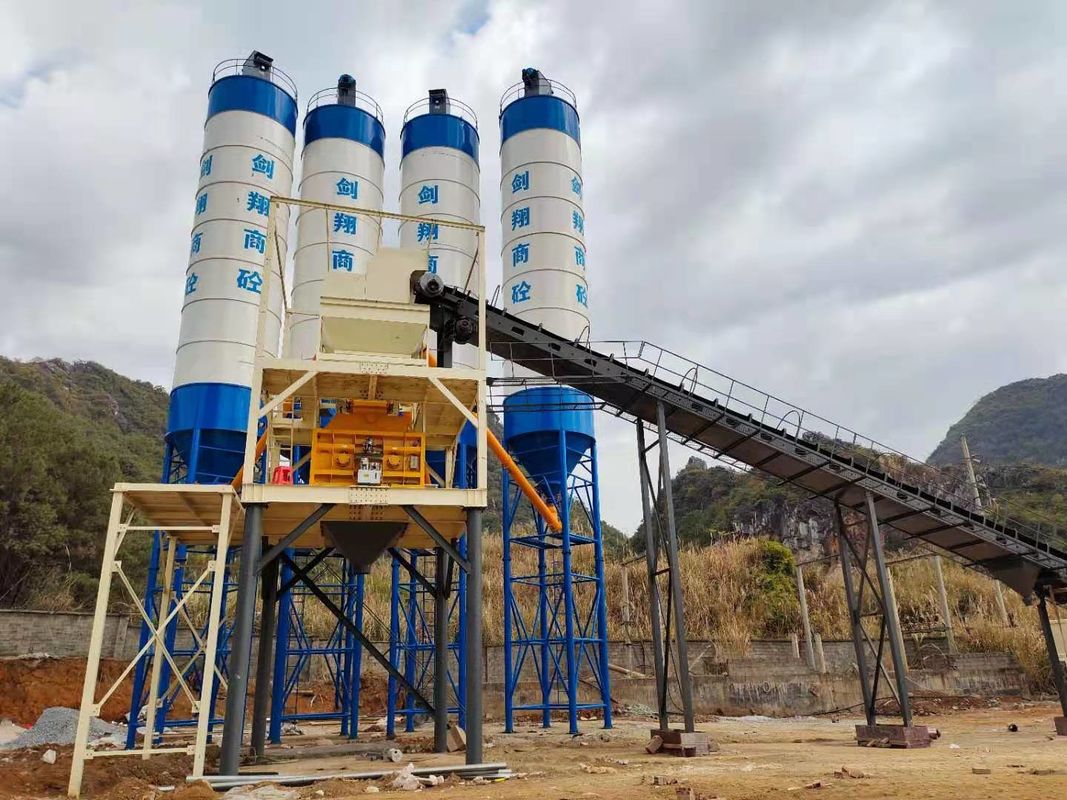

HZS120 concrete mixing plant introduction
The theoretical productivity of HZS120 concrete mixing station is 120m3/h. The main machine is JS2000 compulsory double horizontal shaft concrete mixer, the nominal capacity of the mixer is 2000L, and the battering machine is PLD3200.The whole equipment includes double horizontal shaft mixer, batching machine, cement warehouse and screw conveyor, conveyor belt, microcomputer control room.Can produce plastic, dry hard concrete and other kinds of concrete, high production efficiency, short mixing time, and beautiful appearance, widely used in large and medium-sized construction, roads and Bridges and production of concrete products in the prefabricated factory, is the production of commercial concrete equipment.
HZS120 commercial concrete mixing station system description
1, star gear reducer, small size, high efficiency, reliable.
2. The lining plate and blade are made of high chromium wear-resistant cast iron, with reasonable Angle design, good mixing effect and fast speed.
3, the four shaft end is equipped with automatic sealing oiling system.
4. Discharge door is controlled by hydraulic oil pump, with three stopping points and manual opening.
suuply list
| No. | item | spec | Brand | qty | unit | remark | |
| 1 | JS2000 mixer | Mix main machine | Model JS2000 | China brand | 1 | SET |
China brand
|
| Main reducer | Planet reducer | China brand | 2 | SET | |||
| Main motor | 2ｘ37KW | China brand | 2 | SET | |||
|
Thick oil pump |
automatic | China brand | 1 | SET | |||
|
Discharge pump station |
Manual/automatic integration | China brand | 1 | SET | |||
| Liner and blade | High wear resistant alloy | China brand | 1 | SET | |||
| 2 | Main steel structure |
Mixing platform
|
href="javascript:;" U-steel | China brand | 1 | SET | |
| Mixing column | Thick steel pipe | China brand | 1 | SET | |||
| Batching platform | U-steel | China brand | 1 | SET | |||
| Batching column | special | China brand | 1 | SET | |||
| Top | square tube | China brand | 1 | SET | |||
| Top column | special | China brand | 1 | SET | |||
| Discharge hopper | With liner | China brand | 1 | SET | |||
| Climb ladders and rails | Make at user’s site | China brand | 1 | SET | |||
| 3 |
PLD3200 type batching machine
|
Conveyor electric rollers | External motor | China brand | 1 | SET | |
| Conveyor tail frame |
Screw adjustment |
China brand | 1 | SET | |||
| Flate belt | 800mm | China brand | 1 | SET | |||
| Conveyor frame | U steel | China brand | 1 | SET | |||
| U type support device | Thickening roller | China brand | 1 | SET | |||
| scale hopper | China brand | 4 | PC | ||||
| sensor | 2000kg | China brand | 12 | PC | |||
| storage silo | China brand | 4 | PC | ||||
| air cylinder | SC100×250 | China brand | 12 | PC | |||
| 4 |
Feeding belt and waiting bin
|
electric rollers |
External mounted reducer |
China brand | 1 | Set | |
| Conveyor tail frame | Screw adjustment | China brand | 1 | Set | |||
| belt | 1000mm | China brand | 1 | PC | |||
| Conveyor frame | U steel | China brand | 1 | Set | |||
| Passive roll system | Adjustable steel roller | China brand | 1 | Set | |||
| tension device |
Screw type + gravity adjustment type |
China brand | 1 | Set | |||
| Maintenance walkways | Non-slip net | China brand | 1 | Set | |||
| All kinds of idlers | Thickened roller group | China brand | 1 | Set | |||
| landing leg | Square tube | China brand | 1 | Set | |||
| The buffer bucket | China brand | 1 | PC | ||||
|
Waiting bin |
China brand | 1 | PC | ||||
| discharge gate | Double cylinder | China brand | 1 | Set | |||
| The discharging cylinder | SC100×200 | China brand | 1 | Set | |||
| 5 | Water metering system | scale hopper | China brand | 1 | Set | ||
| support | China brand | 1 | Set | ||||
| Sensor | 压力500kg | China brand | 3 | PC | |||
| Pneumatic Butterfly Valve | 300 | China brand | 1 | PC | |||
| submersible pump | 4KW | China brand | 1 | Set | |||
| pipes | Steel pipes | China brand | 1 | Set | |||
| Discharge water booster pump | 4KW | China brand | 1 | Set | |||
| 6 |
Admixture measurement system
|
Admixture measuring tank |
Stainless steel | China brand | 1 | PC | |
| Sensor | pressure50kg | China brand | 1 | PC | |||
| Support | U steel | China brand | 1 | Set | |||
| Pneumatic Butterfly Valve | 50 | China brand | 1 | PC | |||
| Admixture water pump | Stainless steel | China brand | 1 | Set | |||
| pipes | pvc | China brand | 1 | Set | |||
| 7 |
Fly ash metering system
|
Weighing tank |
China brand | 1 | Set | ||
| tension sensor | Pressure 1000kg | China brand | 3 | PC | |||
| Pneumatic Butterfly Valve | 300 | China brand | 1 | PC | |||
| Support | U steel | China brand | 1 | Set | |||
| 8 | Cement metering system | Weighing tank | China brand | 1 | PC | ||
| tension sensor | Pressure 1000kg | China brand | 3 | PC | |||
| Pneumatic Butterfly Valve | 300 | China brand | 1 | PC | |||
| support | U steel | China brand | 1 | Set | |||
| 9 | Screw conveyor | Screw conveyor | 273 | China brand | 3 | PC | |
| Screw conveyor | 219 | China brand | 1 | PC | |||
| 10 | Cement bin | 100T | Pulse dust removal | China brand | 4 | Set | |
| 11 | Fully automatic centralized control | Control system | China brand | 1 | Set | ||
| computer | China brand | 1 | Set | ||||
| Monitor | China brand | 2 | Set | ||||
| Printer | China brand | 1 | Set | ||||
| camera | China brand | 3 | Set | ||||
| VCR | China brand | 1 | Set | ||||
| Electrical and Control | Contains line/slot | Schneider | 1 | Set | |||
| Sensor | Pulido | 1 | Set | ||||
| 12 | air circuit system | air compressor | 7.5KWscrew | China brand | 1 | Set | |
| 0.3 air storage bag | China brand | 1 | Set | ||||
| Air -type fitting | alloy | China brand | 1 | Set | |||
| 13 | control room |
Dust removal of stirring machine |
impulse type | China brand | 1 | Set | |
| 14 | control room |
Main control room site |
China brand | 1 | PC | ||
|
Steel structure of control room |
The same height as the host layer | China brand | 1 | Set | |||
