Product Details:
Payment & Shipping Terms:
|
| Product Name: | 656D Wheel Loader | Rated Load: | 5000kg |
|---|---|---|---|
| Bucket Capacity: | 2.7-4.5m3 | Wheel Base: | 3300mm |
| Dimension: | 8279*2963*3456mm | Turning Radius: | 6813mm |
| Main Drive Type: | Spiral Bevel Gear,single Stage | Engine Power: | 162 KW |
| Rated Speed: | 2000r/min | Tires Type: | Bias |
| High Light: | Underground Wheel Loader 3m3,2000r/min Underground Wheel Loader,162 KW Underground Wheel Loader |
||

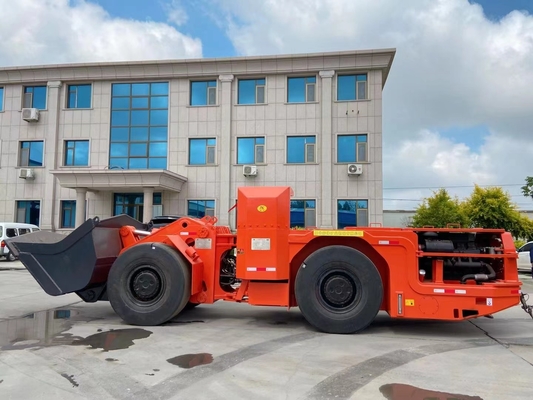

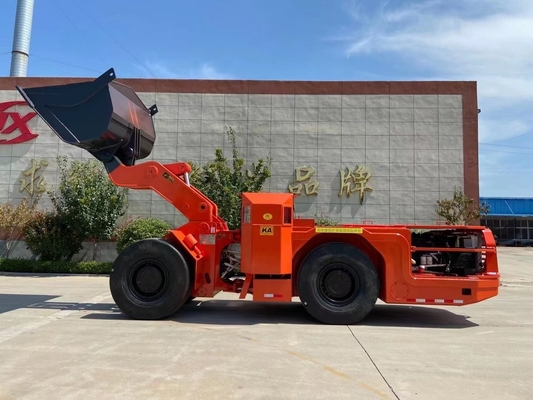

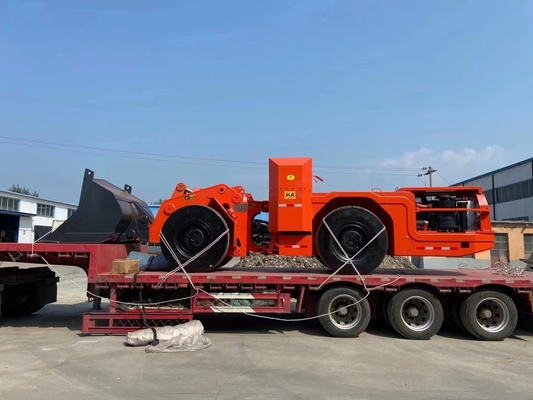

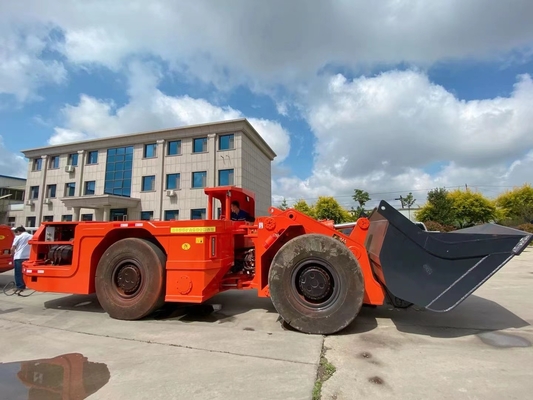

Multiple versatility productivity underground wheel loader over 5% fuel economy
1. Technical Specifications:
Driving system adopts full hydraulic control to improve agility, work efficiency and reduce failure rate
Working system adopts hydraulic pilot-operated control to make production easier, efficiently and lower the fault rate.
Adopts SAHR Brake system (spring applied hydraulic released) to make operation safer and reliable.
Adopts slewing bearing connect with rear frame to swing, to greatly reduce the failure rate.
The bucket adopts V structure and reduces the shovel penetration resistance.
2. WJ-3 diesel engine underground wheel loader supply list
| No. | Item | Spec | Original |
| 1 | Engine | BF6M1013EC | Germany DEUTZ |
| 2 | drive axle | 16D2149 | DANA |
| 3 | bivariant | C273/32366 series | DANA |
| 4 | operating valve | imported | |
| 5 | Working pilot valve | ||
| 6 | conversion valve | Imported | |
| 5 | Steering pilot valve | ||
| 6 | prefill valve | 06-463-020 | MICO |
| 7 | The foot brake valve | 03-460-433 | MICO |
| 8 | The gas cylinder etc. | Williams | |
| 9 | Working pump | PGP330C578WEAB17-7 | PARKER |
| 10 | steering pump | PGP517A0330AD1H3NB1B1D6D5 | PARKER |
| 11 | pressure switch | PMN150C/110 | Geely da |
| 12 | energy accumulator 1 | ||
| 13 | energy accumulator 2 | NXQ-0.63/10 | |
| 14 | solenoid valve | 4WE10JB20/AG24Z4(G67/01) | Huade |
| 15 | high pressure filter | GU-H63*20 | Liming |
| 16 | sequence valve | DZ6DP1-5X75YM(G502/01) | Huade |
| 17 | Oil suction filter | WU-400*100F-J | Liming |
| 18 | return oil filter | GP-A500*20Q2Y | Liming |
| 19 | Tyre | 17.5-25 | Fengshen |
| 20 | purifier | ||
3. Main technical data
Bucket volume 3.0m3
Rated load 6000kg
The length of the machine is 8600 mm
Machine width 2100 mm
Machine height (including protection ceiling) 2120 mm
Bucket full load boom lifting time 6.2s
Bucket full load boom tipping time 4.2s
Bucket full load forward time 8s
Maximum lifting height 4390mm
The maximum unloading height is 1325mm
Minimum unloading distance 1540mm
Uninstall Angle of 40 DHS
The wheelbase 3150 mm
Wheelbase 1400 mm
Minimum ground clearance 315mm
Angle of departure of 14 DHS
Rear axle swing Angle ±8º
2. Machine weight and load
The operating weight of the machine is 14500 kg
The heavy-duty weight of the machine is 20050 kg
speed 4.7 km/h 9.4 km/h 18.4 km/h
The engine
Internal combustion engine BF6M1013EC (DEUTZ)
Power 165 kw / 2300 RMP
The torque of 847 n / 1400 RMP
4. Power system
Torque converter DANA C273
Transmission DANA R32366
16 d2149 bridge DANA
Climbing capacity ≥14º
Maximum traction is 119KN
Maximum shovel capacity 111KN
Electrical system
Working voltage DC24V
Steering system
Steering Angle - 42 DHS
Minimum turning radius 3580 (inside)
6300 (outside)
