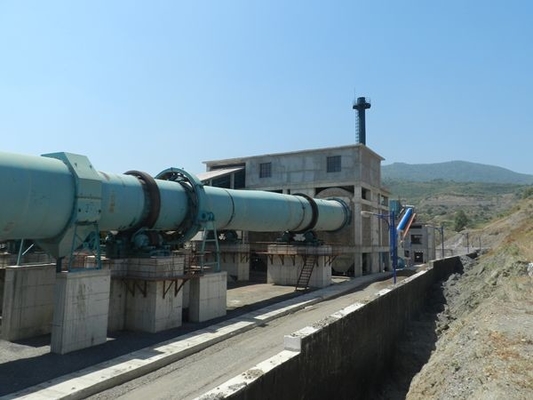

220T Φ 3.5×54m Zinc Oxide Rotary Kiln And Zinc Oxide Complete Production Line
1. Introduction
Zinc oxide rotary kiln is a kind of metallurgical rotary kiln. Metallurgical rotary kiln is mainly used for magnetization roasting of lean iron ore in steel works of metallurgical industry. Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
Zinc oxide is produced in a rotary kiln by mixing zinc charge, coal and other auxiliary materials through a series of chemical reactions. Zinc oxide, also known as zinc white, is easy to disperse in rubber and latex, natural rubber, synthetic rubber reinforcing agent, active agent and vulcanizing agent, but also white rubber colorant and filler.
| Use | unit | Used for zinc rotary kiln | |||||||
| Device name | Ф3.5×54m Rotary kiln | ||||||||
| Drawing no. | |||||||||
| 1. Performance parameters | |||||||||
| Production capacity | t/d | 600(Process to determine) | |||||||
| Slope | % | 4.0 | |||||||
| Bearing number | 3 gear | ||||||||
| Main drive speed | 0.1-1.0 | 0.1~1.0 r/min | |||||||
| Auxiliary drive speed | r/h | 6.6 | |||||||
| Transmission type | Unit weight | ||||||||
| Main drive motor model (frequency conversion speed regulating motor) | YSNP355M2-10 | ||||||||
| Power | kW | 110 | |||||||
| Rated speed | r/min | 600 | |||||||
| The rated voltage | V | 380 | |||||||
| Speed range | r/min | 60-600 | |||||||
| Auxiliary drive motor model | Y180L-4 | ||||||||
| Power | kW | 22 | |||||||
| Rated speed | r/min | 1470 | |||||||
| Rated voltage | V | 380 | |||||||
| Main drive reducer model | YNS1240-63 | ||||||||
| Drive ratio | 63 | ||||||||
| Center distance | mm | 1240 | |||||||
| Auxiliary drive reducer | |||||||||
| Model | YNS440-22.4 | ||||||||
| Drive ratio | 22.4 | ||||||||
| Center distance | mm | 440 | |||||||
| Hydraulic gear oil station (with electric control) | |||||||||
| model | YY-Ⅱ | ||||||||
| 2 Main Components | |||||||||
| Ⅰ gear belt | |||||||||
| Shape | (rectangle) | ||||||||
| Specifications | 600×φ4300 | ||||||||
| Material | ZG310-570 | ||||||||
| Hardness | HB | >170 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 17600 | |||||||
| Ⅱ gear belt | |||||||||
| Shape | (rectangle) | ||||||||
| Specifications | 700×φ4300 | ||||||||
| Material | ZG310-570 | ||||||||
| Hardness | HB | >170 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 19800 | |||||||
| Ⅲ gear belt | |||||||||
| Shape | (rectangle) | ||||||||
| Specifications | 600×φ4300 | ||||||||
| Material | ZG310-570 | ||||||||
| Hardness | HB | >170 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 17100 | |||||||
| Large gear ring specifications (module, number of teeth) | M=28,Z=198 | ||||||||
| Material | ZG35CrMo | ||||||||
| Hardness | HB | ≥185 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 12350 | |||||||
| Pinion specifications (module, number of teeth) | M=28 Z=21 | ||||||||
| Material | 35SiMn | ||||||||
| Hardness | HB | ≥220 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 1100 | |||||||
| Pinion shaft material | 35CrMo | ||||||||
| Hardness | HB | ≥220 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 980 | |||||||
| Ⅰ,Ⅲ supporting wheel | |||||||||
| Specifications | 650×φ1300 | ||||||||
| Material | ZG310-640 | ||||||||
| Hardness | HB | ≥190 | |||||||
| Quantity | 4 | ||||||||
| Unit weight | kg | 4280 | |||||||
| Ⅰ,Ⅲ supporting wheel shaft | |||||||||
| Material | 45 | ||||||||
| Quantity | 4 | ||||||||
| Hardness | HB | ≥220 | |||||||
| Unit weight | kg | 2080 | |||||||
| Ⅱ roller | |||||||||
| Specifications | 750×φ1300 | ||||||||
| Material | ZG340-640 | ||||||||
| Hardness | HB | ≥190 | |||||||
| Quantity | 2 | ||||||||
| Unit weight | kg | 5580 | |||||||
| Ⅱ supporting shaft | |||||||||
| Material | 45 | ||||||||
| Hardness | HB | ≥220 | |||||||
| Quantity | 2 | ||||||||
| Unit weight | kg | 2580 | |||||||
| Roller bearing | Wafangdian | ||||||||
| Material | ZA27-2 | ||||||||
| Quantity | 12 | ||||||||
| Cylinder part material | Q235-B | ||||||||
| Thickness | mm | 22,25,32,36,50,60 | |||||||
| Ⅰ gear under the wheel belt | |||||||||
| Material | Q235-B | ||||||||
| Thickness | mm | 60 | |||||||
| Second gear wheel belt | |||||||||
| Material | Q235-B | ||||||||
| Thickness | mm | 60 | |||||||
| Third gear under the wheel belt | |||||||||
| Material | Q235-B | ||||||||
| Thickness | mm | 60 | |||||||
| 3 Weight composition of each part of kiln | |||||||||
| Kiln end sealing device | |||||||||
| The number of | set | 1 | |||||||
| The weight of the | kg | 1320 | |||||||
| Ⅰ gear supporting device | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 25500 | |||||||
| Ⅱ grade supporting device | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 28850 | |||||||
| Grade ⅲ supporting device (with retaining wheel device) | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 34600 | |||||||
| Transmission device | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 19600 | |||||||
| Cylinder part | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 220000 | |||||||
| Kiln head seal | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 1450 | |||||||
| Hydraulic gear oil station | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 500 | |||||||
| Stopper oil station tubing system | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 25 | |||||||
| Installation tools | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 7500 | |||||||
| Total weight of rotary kiln (excluding kiln hood) | kg | 355090 | |||||||
| Manufacturing standards | |||||||||
| Motors and other electrical components: | |||||||||
| Manufacturing standards | GB755 | ||||||||
| Protection grade | IP44 | ||||||||
| Insulation grade | F | ||||||||
