Product Details:
Payment & Shipping Terms:
|
| Mixer Type: | Horizontal Strong Mixer | Condition: | New |
|---|---|---|---|
| Power: | 22-30kw | Output: | 15-400 T/h |
| Applicable Industries: | Manufacturing Plant, Construction Works, Energy , Mining | Model: | HWQ(A) Series |
| Dimension(L*W*H): | 3415*1532*1045--8588*4968*1935mm | Power (kW): | 22-450kW |
| Key Selling Points: | Competitive Price | Warranty: | 12 Months |
| Type: | Metallurgy Machine | Port: | QingDao,ShangHai,TianJin |
| High Light: | Alloy Steel Horizontal Mixer,Mining Strong Horizontal Mixer,Alloy Steel Horizontal Mixer machine |
||
Advanced Alloy Steel Horizontal Strong Mixer Metallurgy Machine Mining Machine

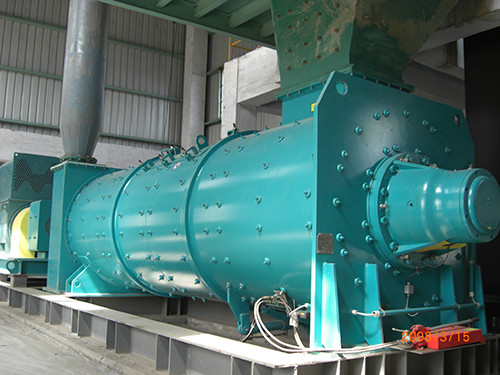

1. Horizontal strong mixer equipment structure, Metallurgy Machine:
The horizontal strong mixer is composed of frame, barrel, mixing tool, rake tooth, compound rubber lining, transmission system and control system, among which, the transmission system is composed of hydraulic coupler, triangle belt, torque sensor, explosion-proof motor, hydraulic motor and so on.
There are access holes on both sides of the horizontal strong mixer to facilitate the operator to repair and maintain the mixing tools at ordinary times. The horizontal power mixer is durable and easy to maintain.

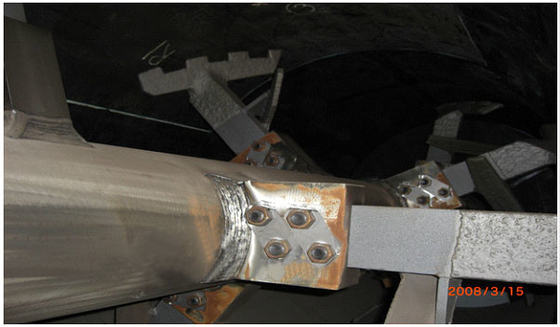

The shape of the mixing tool can be decided according to the mixed material, because the mixed material has different abrasion properties, material proportion and nature to the structural parts in contact with it, the selection of the manufacturing material of the structural parts needs to be targeted.
(1) High quality steel as structural material
(2) composite rubber lining
(3) Cemented carbide coating and cemented carbide coating
(4) Advanced alloy steel.
2. Horizontal strong mixing machine working principle, Metallurgy Machine:
Horizontal powerful mixer mixing principle is: through the arrangement in the middle of the equipment of hybrid instruments, and hybrid instruments on different directions of 13 or 26 mixed tine, mix into the equipment material, according to the form of convection, the material of strong scattering, shear, and exchange, etc., make the material in a mixed fully mixing barrel body, and is moving towards the mixing equipment discharging end.
In this way of mixing, the material to be mixed is not easy to agglomerate and agglomerate in the mixing equipment.
3. Performance characteristics of horizontal strong mixer, Metallurgy Machine:
The best uniformity of the mixed material, even if the volume ratio of the material components in 1:1000 can also get uniform mixing;
Suitable for the addition of binder and uniform mixing;
The mixture is of good quality and stable:
The structure is simple and easy to operate, and the maintenance is convenient and quick
Less wearing parts, less maintenance of structural parts;
Run continuously
4. Product parameters of horizontal strong mixer ,Metallurgy Machine
| Model | Output (t/h) | Power (kw) | Dimensions (mm) | ||
| L | W | H | |||
| HWQ(A)-0816 | 15-25 | 22-30 | 3415 | 1532 | 1045 |
| HWQ(A)-0918 | 30-40 | 30-45 | 4014 | 1777 | 1190 |
| HWQ(A)-1020 | 40-50 | 45-55 | 4341 | 1837 | 1330 |
| HWQ(A)-1120 | 70-80 | 75-90 | 4815 | 2137 | 1450 |
| HWO(A)-1220 | 90-110 | 110-132 | 5052 | 2168 | 1550 |
| HWQ(A)-1224 | 110-130 | 132-160 | 5099 | 3084 | 1550 |
| HWQ(A)-1330 | 150-180 | 160-220 | 6242 | 3282 | 1750 |
| HWQ(A)-1340 | 200-230 | 220-280 | 7503 | 3648 | 1750 |
| HWQ(A)-1540 | 280-330 | 280-355 | 7513 | 3848 | 1935 |
| HWQ(A)-1550 | 350-400 | 355-450 | 8588 | 4968 | 1935 |
