Mixer Furnace Metallurgy Machine 300T\600T\ 900T\1300T For Mining

Metallurgy Machine Mixer Furnace Of 300T600T 900T1300T For Mining

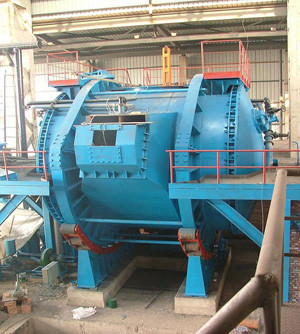

1. Structure of metallurgy machine mixing furnace:

Mixed iron furnace is generally divided into 300 tons, 600 tons, 900 tons and 1300 tons, mainly by: base, furnace body, transmission mechanism, rotary mechanism, open cover mechanism, air blast device, gas air pipe, pneumatic brake device, dry oil lubrication device, mixed iron furnace platform, electrical system and other 11 parts. The furnace body is composed of a removable side convex end cover and a cylinder with molten iron and molten iron opening. Inside the furnace body QiYou refractory materials, refractory materials filled with diatomite material packing layer between the furnace shell, so as to heat insulation lining heat expansion and buffer pressure which produces to the furnace shell, packing used for heat insulation layer to QiYou in diatomite brick, diatomaceous earth brick inside is clay brick, clay brick is the job of the direct contact with the molten iron inside layer, work layer is made of magnesium brick masonry. For 600 tons of mixed iron furnace, the total thickness of furnace lining is 650mm, including 10mm filler layer, 65mm diatomite brick layer. Clay brick layer 115mm, magnesium-carbon brick layer 460mm. The weight of the whole furnace body is transferred to the supporting base directly fixed on the foundation through the arc roller path composed of eccentric hoop rings near both ends of the cylinder body.

2. Application field of metallurgy machine mixing furnace:

Mixing furnace belongs to iron and steel metallurgy equipment, mainly used in iron and steel industry, metallurgy industry and so on.

Mixing furnace is used to store and keep hot metal smelted by blast furnace, and can mix hot metal smelted by different blast furnaces with different temperature and chemical composition to supply it to open furnace or pass furnace steelmaking. , by the oven door shaft furnace doorframe, two groups of sliding bearing and two rods weight of furnace door frame and door shaft welded together, the furnace door is a steel plate welding, the framework of its upper and around each Ann have steel seal groove, groove inlaid refractory fiber, box build by laying bricks or stones inlaid refractory brick, the oven door placed on two groups of sliding bearing on both ends of the shaft, bearing pedestal welding on both sides of taphole, A rod-shaped counterweight is installed at each end of the furnace door shaft, and there is a fixed included Angle between the rod-shaped counterweight and the furnace door frame.
