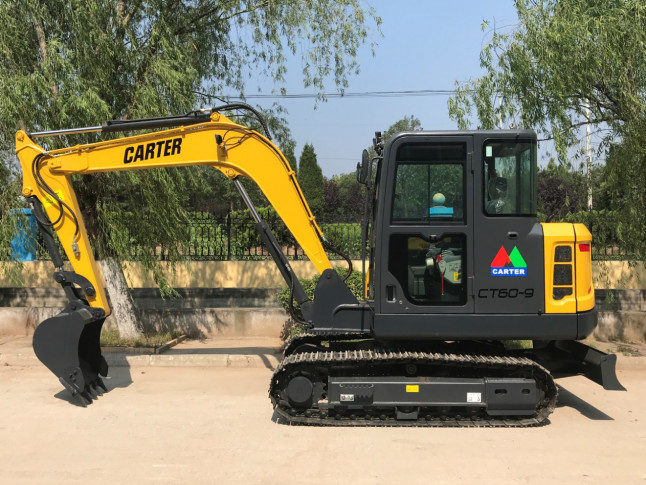

Condition:	New	Model:	CT60-9 Hydraulic Crawler Excavator
Pump:	KYB, Japan	Name:	Crawler Tractor
Max. Torque:	193.2～210.6N.m/1260±100 Rpm	Power Output:	36.2kw/2100rpm
Oil Cooler:	Air Cooled Type	Bucket Capacity:	0.22m3 (SAE)
Bucket Capacity Scope:	0.072-0.25m3	Number Of Bucket Teeth:	5
Bucket Width:	750 Mm	Type:	Heavy Duty Construction Machinery
WARRANTY:	12 Months	Port:	Qingdao/Tianjin/Shanghai
High Light:	CT60-9 Heavy Duty Construction Equipment , CT60-9 Hydraulic Crawler Excavator , Heavy Duty Hydraulic Crawler Excavator

Engine		Travel System
Model	Yanmar 4TNV94L	Travel motors	KYB, Japan;
Type	Direct injection, 4 stroke, water cooled, natural intake	Support roller quantities	2×5
Type	Direct injection, 4 stroke, water cooled, natural intake	Carrier roller quantities	2×1
No. of cylinder	4	Travel shoes	2X37
Bore and stroke	94X110(mm)	Travel speed	2.5/4.0(km/h)
Displacement	3.054L	Drawbar pulling force	50.4kN
Power output	36.2kw/2100rpm	Gradeability	70%(300)
Max. torque	193.2～210.6N.m/1260±100 rpm	Track shoes thickness	6mm

Hydraulic System				Cab & Electrical System
Pump		KYB, Japan		Cab	installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system
Type		axial piston pump+ gear pump
Max. discharge flow		160 (L/min)
Max. discharge pressure
Boom, arm and bucket		24.5 MPa		Voltage		12V
Travel circuit		18.6 MPa		Batteries		1x12V
Swing circuit		20.5 MPa		Battery capacity		80Ah
Control circuit		3.9 MPa		Boom, Arm ＆ Bucket
Pilot control pump		Gear type		Boom cylinder		Φ110xΦ65xS720-L1095
Main control valves		KYB, Japan		Arm cylinder		Φ85xΦ55xS880-L1280
Oil cooler		Air cooled type		Bucket cylinder		Φ80xΦ50xS600-L925
Swing System				Refilling Capacity & lubrication
Swing motor		KYB, Japan		Fuel tank		125 L
Swing motor type		Axial-piston motor		Cooling system		15 L
Brake		Hydraulic oil released		Engine oil		10.5 L
Parking brake		Hydraulic disc brake		Hydraulic oil tank		78 L Tank Oil Level
Swing speed		10 r/min				100 L Hydraulic System
Bucket
Type				Backhoe bucket
Bucket capacity				0.22m3 (SAE)
Bucket Capacity scope				0.072-0.25m3
Number of bucket teeth				5
Bucket width				750 mm
Working Ranges
Boom length			3050mm
A	Max. digging height		5889mm
B	Max. dumping height		4201mm
C	Max. digging depth		3812mm
D	Max. vertical digging depth		3008mm
F	Max. digging distance		6257mm
G	Max. digging reach at ground level		6102mm
H	Min swing radius of work equipment		2585mm
Digging Force (ISO6015)
Arm length			1580mm
A	Bucket digging force		36.7 KN
B	Arm digging force		26.1 KN
Overall Dimensions

Overall length	5943mm	I		Track grounding length	2000mm
Ground contact length	3375mm	J		Track length	2665mm
Overall height(to top of boom)	1995mm	K		Track gauge	1600mm
Overall width	2000mm	L		Track width	2000mm
Overall height(to top of cab)	2619mm	M		Track Shoe width	400mm
Counter weight ground clearance	740mm	O		Counter weight height	1062mm
Min Ground clearance	360mm	P		Revolving frame width	1790mm
Tail swing radius	1745mm	Q		Distance from swing center to tail	1745mm
Operating Weight and Ground Pressure
Operating weight includes basic machine;
Operating weight			5820 Kg
Ground pressure			34 KPa
