Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Operating Mass: | 770kg |
|---|---|---|---|
| Static Linear Load: | 62/62 N/cm | Type: | 0.8ton Mini Hand Road Roller |
| Vibration Amplitude: | 0.25mm | Centrifuge Force: | 12N |
| Vibration Frequency: | 48 Hz | Grade Ability: | 40% |
| Overall Dimension (LxWxH): | 2400x880x1100 Mm | Drum Width: | 600 Mm |
| Diesel Engine Power: | 5.68 KW | Warranty: | 12 Months |
| Color: | Yellow | Port: | Qingdao/Tianjin/Shanghai |
| High Light: | 0.8 Ton Heavy Duty Construction Machinery,0.8 Ton Mini Hand Road Roller,0.8 Ton Compactor Hand Road Roller |
||
0.8ton Mini Hand Road Roller Compactor Machine Of Heavy Duty Construction Machinery:
1. Our factory introduce:
(1) We produce road roler,motro grader and tractor from 1995,Have more than 22years experience.can finished 12,000 units producton every year.Ensure finish your order according your requirement.
(2) Export our machines from 2001,have export more than 150 countries now. Can offer you best documets of customs clearance according your requirements.
(3) The parts of our machines all have ISO certification.some are import from Europe,Amweica,Germany.....
(4) More professional after-sales service will solve all the problem of your machines.
2. Ship:
Our ship company have cooperate more than 15years.more specialty,safety,timely.
3. 0.8ton Mini Hand Road Roller Compactor Machine Of Heavy Duty Construction Machinery Product introduction:

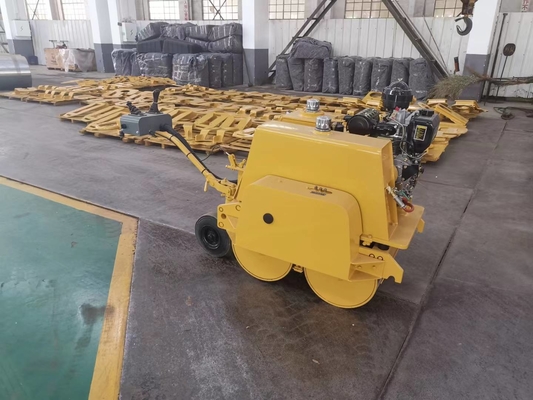

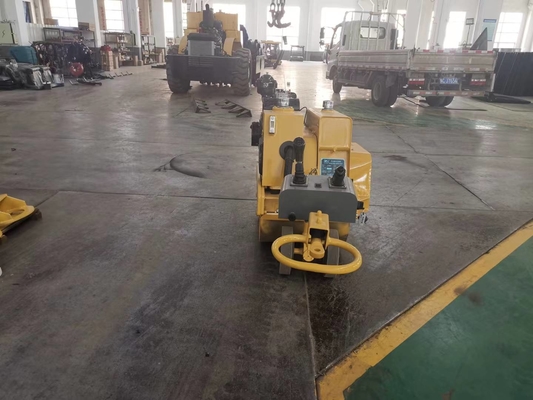

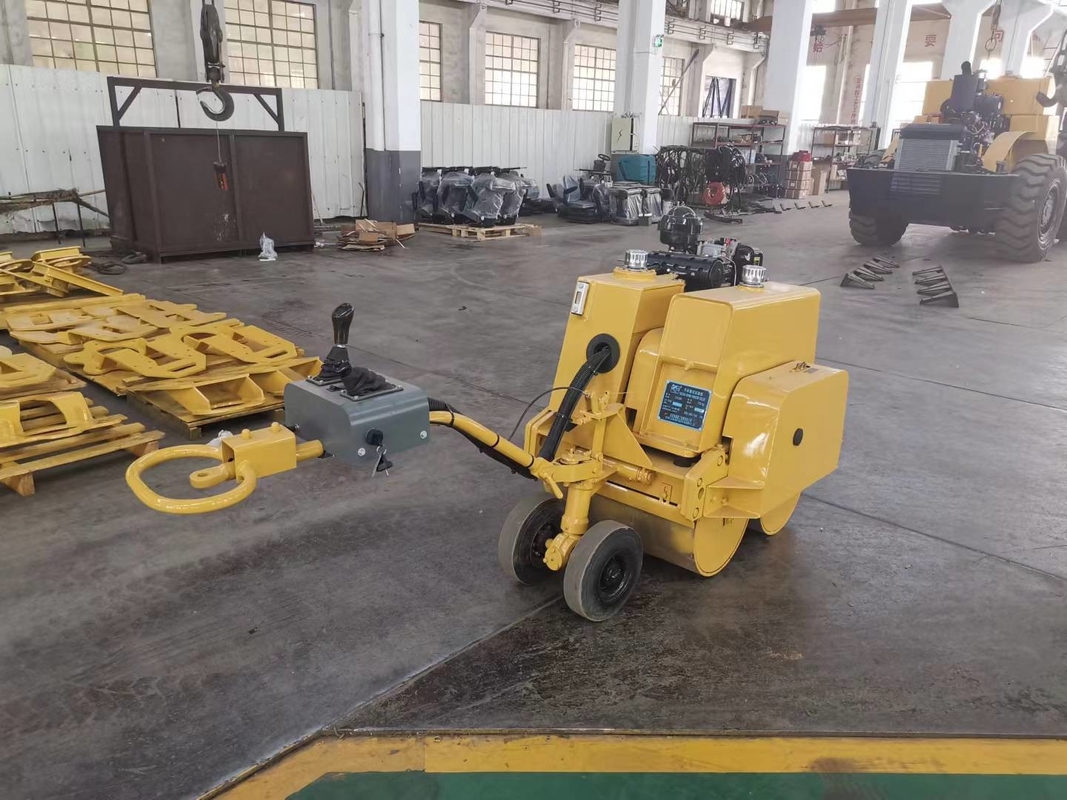

LTC08H Hydraulic walking behind vibrating road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road surface,such as foundation of groove wider than 0.8m, building construction, back filling for pipeline and gymnasium ground.
4. 0.8ton Mini Hand Road Roller Compactor Machine Of Heavy Duty Construction Machinery Main Features:
(1) The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
(2) All wheel drive, strong climbing capability;
(3) Using CFI86F vertical direct-spray air-cooled engine, with both electrical and manual start up devices;

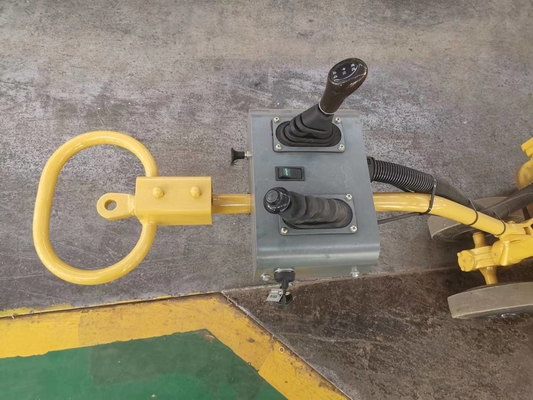

(4) Designed with guide wheel and joystick, it is labor saving and easy to control.Adopt imported pump and starting motor,CVT.
5.0.8ton Mini Hand Road Roller Compactor Machine Of Heavy Duty Construction Machinery technical data:
| Model | LTC08H | |||
| Operating mass | kg | 770 | ||
| Static linear load | N/cm | 62/62 | ||
| Vibration amplitude | mm | 0.25 | ||
| Centrifuge force | Kn | 12 | ||
| Vibration frequency | Hz | 48 | ||
| Travel speed | Km/h | 0-4 | ||
| Grade ability | % | 40 | ||
| Turning radius | mm | 2700 | ||
| Overall dimension (LxWxH) | mm | 2400x880x1100 | ||
| Vibration drum diameter | mm | 400 | ||
| Drum width | mm | 600 | ||
| Wheel base | mm | 470 | ||
| Diesel engine power | Kw | 5.68 | ||
| Diesel engine model | CF186F | |||
| Spinkler tank capacity | L | 32 | ||
| Driving pump | DANFOSS | |||
| Driving motor | Eton | |||
Our Products will be continuously improved with the progressing of the technique, So please indicate the difference between the listed parameters in the sample sheet and structure features and take material object as the standard.
