Product Details:
Payment & Shipping Terms:
|
Condition: | New | Name: | Cone Crusher Accessories |
---|---|---|---|
Model: | Cone Crusher | Application: | Metallurgy, Construction, Mining And Other Industries |
SPEC: | Customizable | Casting: | To Cast Or Forge. |
Spring Part: | Spring, Hexagon Bolt | Rack Section: | Base, Bushing, Reinforcement Lining Plate |
Type: | Castings And Forgings | Warranty: | 12 Month |
High Light: | Cone Crusher Castings And Forgings,Mining Machine Castings And Forgings,Castings Cone Crusher Accessories |
Castings And Forgings Cone Crusher Accessories For Mining Machine

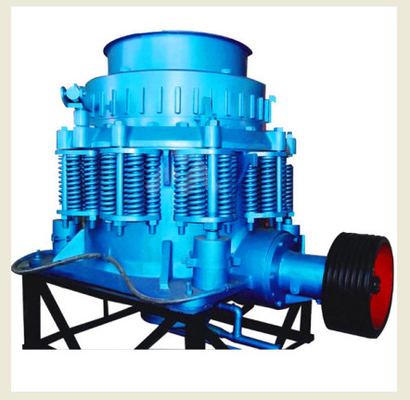

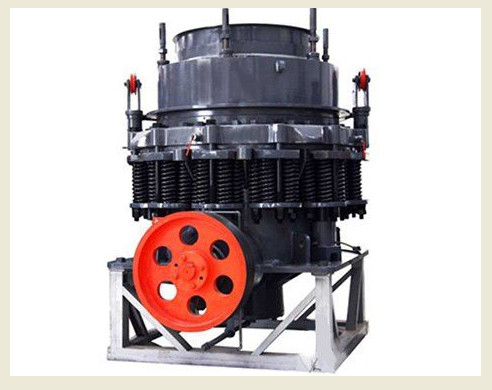

1. Introduction of cone crusher castings and forgings
Cone crusher is widely used in metallurgy, construction, mining and other industries, can be used as two crushing or three, four crushing. Hydraulic cone crusher, composite cone crusher, spring cone crusher all kinds of wearing parts collectively referred to as cone crusher accessories.
2. Introduction of accessories of cone crusher castings and forgings
(1) Broken wall
One of the main components of the cone crusher, also known as moving cone, is fixed on the cone body with a cone head. The broken wall of cone is forged by new composite material, which has the characteristics of super wear resistance, high cost performance and wide application field. The cone broken wall is fixed on the cone body by the cone head, and epoxy resin is cast between the two. After 6~8 hours of work, check the fastening condition of the newly installed or newly replaced cone broken wall, and tighten it immediately if it is found loose.
Castings And Forgings
(2) Rolling mortar wall
Rolling mortar wall and crushing wall are the main parts that work together in cone breaking to crush the material. Because it is fixed, it is also called fixed cone. When the cone is broken in operation, the broken wall will do track movement, and the distance between the mill wall and the mortar wall is sometimes close and sometimes far away, so as to squeeze the broken material, part of the material will be discharged from the open side discharge port. The mortar wall has u-shaped screw handle on the adjustment ring, and zinc alloy is injected between the two to make them closely combined. When the mortar wall is newly installed or replaced, the tightening condition should be checked and u-shaped screw tightened again after 6~8 hours of work.
Castings And Forgings

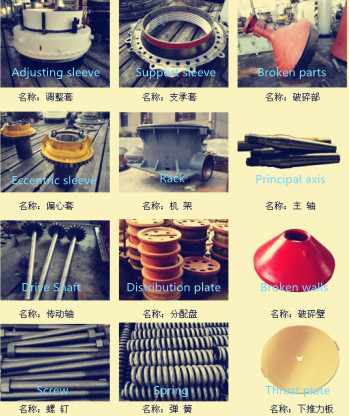

3. Accessories list of cone crusher castings and forgings
(1) Rack section
Base, bushing, reinforcement lining plate, bottom cover, disc, tin injection
(2) Transmission department
Small bevel gear, drive shaft, bushing, protection plate, oil pan, coupling
(3) Empty eccentric shaft
Large bevel gear, empty eccentric shaft, bushing
(4) Bowl bearing part
Bowl-shaped bearing frame and bowl-shaped bearing bush
(5) Crushing cone part
Cone body, broken wall, spindle, pressure sleeve, cone head, distribution plate, stop gear, alloy filler, spherical ring, cover plate
(6) Adjust the device part
Push cylinder, locking cylinder, support sleeve, dust cover
(7) Adjust the sleeve
Rolling mortar wall, adjusting sleeve, U screw, funnel
(8) Spring part
Spring, hexagon bolt
(9) Lubrication part
Gear pump, filter, lubrication station, hydraulic station
4. Accessories table of cone crusher castings and forgings
Accessories | SPEC | |
Rack section | Base, bushing, reinforcement lining plate, bottom cover, disc, tin injection | customizable |
Transmission department | Small bevel gear, drive shaft, bushing, protection plate, oil pan, coupling | customizable |
Empty eccentric shaft | Large bevel gear, empty eccentric shaft, bushing | customizable |
Bowl bearing part | Bowl-shaped bearing frame and bowl-shaped bearing bush | customizable |
Crushing cone part | Cone body, broken wall, spindle, pressure sleeve, cone head, distribution plate, stop gear, alloy filler, spherical ring, cover plate | customizable |
Adjust the device part | Push cylinder, locking cylinder, support sleeve, dust cover | customizable |
Adjust the sleeve | Rolling mortar wall, adjusting sleeve, U screw, funnel | customizable |
Spring part | Spring, hexagon bolt | customizable |
Lubrication part | Gear pump, filter, lubrication station, hydraulic station | customizable |
Castings And Forgings
Castings And Forgings
