Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Energy & Mining | Condition: | New |
|---|---|---|---|
| Compression Strength: | 48.8 Mpa | Usage: | Mining Hoist |
| Tensile Strength: | 12.64 Mpa | Shear Strength: | 26.65 Mpa |
| Hardness(D): | 80±5 | Type: | Mining Machine Spare Parts |
| Warranty: | 12 Months | After-sales Service Provided: | Online Support |
| High Light: | Asbestos Free Disc Brake Shoe,Mining Machine Disc Brake Shoe,Mining Machine Spares Disc Brake Shoe |
||

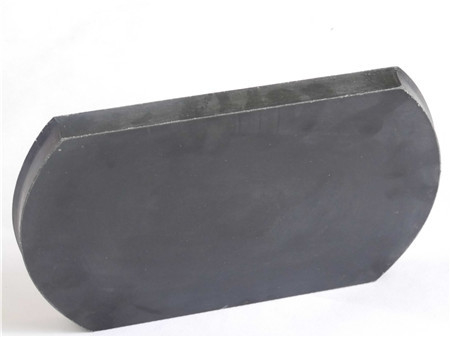

VAsbestos Free Disc Brake Shoe For Mining Machine Spare Parts
1. Product description of disc brake shoe for mining machine spare parts
The brake is realized by the friction of friction, which is a process of transforming kinetic energy into heat energy. The friction material used for friction is the first guarantee of the safety and reliability of the brake. Brake shoe is the main part of mine hoist brake, if the friction coefficient of brake shoe can not meet the design requirements, there will be equipment and personal accidents.
2. Material and characteristics of disc brake shoe for mining machine spare parts
The original brake shoes used in China are mostly made of asbestos material, which is characterized by high melting point, large friction coefficient, good mechanical strength, and strong adsorption with adhesive. But asbestos brake tiles also have insurmountable disadvantages:
(1) Because of the poor thermal conductivity of asbestos, friction heat is difficult to disappear quickly, resulting in the thickness of the thermal recession layer wear aggravation, and pollution of the environment, especially asbestos fiber dust will make the human body carcinogenic;
(2) In order to improve the friction coefficient and heat dissipation performance, most of the use of high hardness friction agent and steel wool
(3) The strength of asbestos decreases after complete dehydration and decomposition at 650℃-700℃;
(4) Asbestos is prone to friction "heat recession".
3. Product parameters of disc brake shoe for mining machine spare parts
With people's increasing awareness of environmental protection and self-protection, environmentally friendly non-asbestos brake shoe will eventually replace asbestos brake shoe, and has a wide application prospect. At present, WSM-3 environmental protection asbestos free brake shoe has been designated by Citic Heavy Machinery Co., LTD as the only supporting product, upgrading the product grade.
Asbestos Free Disc Brake Shoe For Mining Machine Spare Parts
| Name | Test result |
| Compression strength (Mpa) | 48.8 |
| Tensile strength (Mpa) | 12.64 |
| Shear strength (Mpa) | 26.65 |
| Impact strength of simply supported beams KJ/M2 | 6.9 |
| Hardness (Shao D) | 80±5 |
| The proportion of g/cm2 | 1.97 |
| Friction coefficient 100℃-200℃ | 0.159 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
