Product Details:
Payment & Shipping Terms:
|
| Name: | Brick Making Machine | Engine Dimensions: | 5400x2200x3700mm |
|---|---|---|---|
| Type: | QT12-15C Multi-functional Automatic Brick Making Machine | Application: | Slag, Slag, Gravel, Sand, Stone Powder, Fly Ash, |
| Board's Size: | 1280x880x(25-45)mm | The Host Power: | 44.5 KW |
| Usage: | Fly Ash, Slag, Stone Powder, | The Host Weight: | 10 T |
| The Molding Cycle: | 15-20 Seconds/time | Vibration Force: | 128kN |
| Classification: | Metallurgy Machine | Warranty: | 12 Months |
| High Light: | QT12-15C Automatic Block Making Machine,20 Seconds / Time Automatic Block Making Machine,QT12-15C automatic brick machine |
||

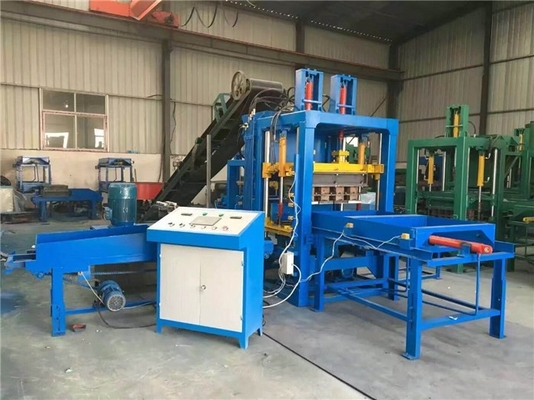

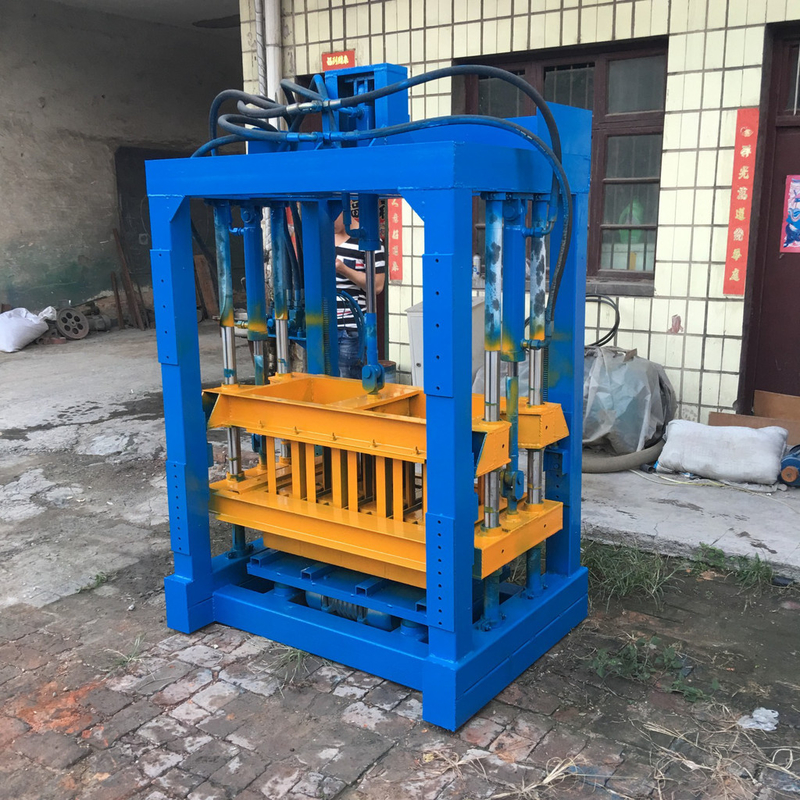

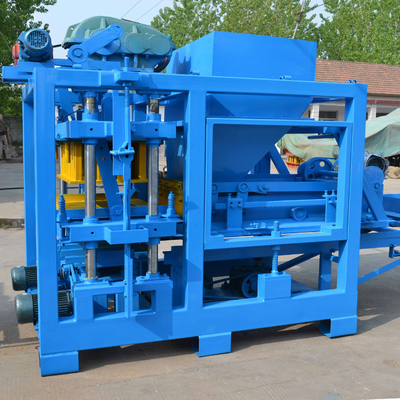

QT12-15C Multi-Functional Automatic Brick Making Machine Of Metallurgy Machine
1. Equipment features of QT12-15C multi-functional automatic brick making machine of metallurgy machine
(1) Main engine frame heightening and widening design, large vibration force, large pressure value, can produce all kinds of road stone, large retaining block U-shaped water groove, water conservancy slope protection brick, railway slope protection brick, road brick, port road brick, counterweight block and other special brick;
(2) The body adopts super strong material and special welding technology, at the same time adopts four-bar guide mode and lengthen wear-resistant guide sleeve, to ensure the balance of mold shedding and accurate operation of the pressure head;
(3) The aggregate car is controlled by double motor, and the distribution mode adopts the double cylinder bend arm propulsion +360° rotating distribution form, which has fast speed and strong compactness.
(4) After a series of heat treatment processes such as quenching, tempering, carburizing, cementing and so on, the service life of the mould and pin shaft is far beyond the national standard.
2. Equipment parameters of QT12-15C multi-functional automatic brick making machine of metallurgy machine:
| The host power | 44.5 kW |
| The host weight | 10t |
| Main engine dimensions | 5400x2200x3700mm |
| Plate size | 1280x880x(25-45)mm |
| The molding cycle | 15-20 seconds/time |
| Vibration force | 128kN |
| Production capacity | 41.04 million/year (240x115x53mm) |
| Execution standard | JC/T2094-2021 |
3. Output parameters of QT12-15C multi-functional automatic brick making machine of metallurgy machine:
| Each time the molding | The Netherlands brick 200 xl00x mm (60/80) | 35 Block/die |
Shift output (10 hours) 70000 pieces |
| 240 x115x53mm standard brick | 57 Block/die |
Shift output (10 hours) 136800 pieces |
|
| PC imitation stone brick 600 x 300x (60/80)mm | 4 Block/die |
Shift output (10 hours) 8000 pieces |
|
| Hollow brick 390 x 190 x 190mm | 12 Block/die |
Shift output (10 hours) 18000 pieces |
|
| 600 x400x400mm u-shaped slot | 4 Block/die |
Shift output (10 hours) 7200 pieces |
|
| 1200 x400x400mm retaining wall | 2 Block/die |
Shift output (10 hours) 3600 pieces |
|
| 1200 x500x400mm retaining wall | 2 Block/die |
Shift output (10 hours) 3600 pieces |
|
| 1200 x600x400mm retaining wall | 2 Block/die |
Shift output (10 hours) 3600 pieces |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
