| Model: | Overflow Type Ball Mill | SPEC: | φ1.5x3.0～φ8x13m And φ1.2x2.4～φ4x14m |
|---|---|---|---|
| Drive Model: | Edge | Type Number 1: | MQS Series Ball Mill |
| Condition: | New | Type Number 2: | MQY Series Ball Mill |
| Type: | Ore Grinding Mill | Place Of Origin: | Henan, China |
| Warranty: | 12 Months | Name: | Lattice Ball Mill |
| High Light: | Overflow Type Ore Grinding Mill,Lattice Ball Mill Machine,Overflow Type Ball Mill Machine |
||

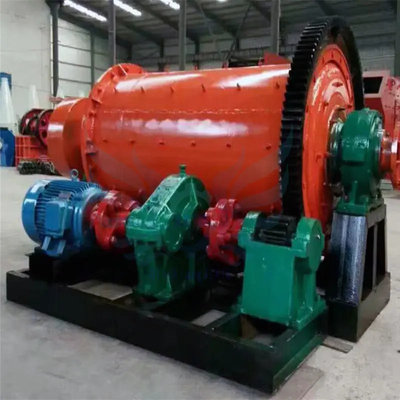

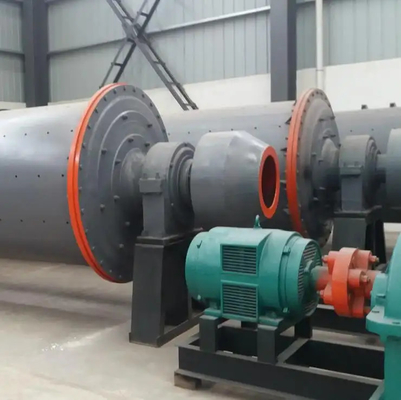

Mine Ball Mill Ore Grinding Mill Overflow Type Ball Mill Lattice Ball Mill
1. Luo mine ball mill of Ore Grinding Mill specifications and models are as follows:
(1) Overflow type ball mill: specifications from φ1.5x3.0 ~ φ8x13m, effective volume 7.5 ~ 194.3m3 of various configurations of a variety of specifications;
(2) Lattice ball mill: specifications from φ1.2x2.4 ~ φ4x14m, the effective volume is 2.2 ~ 157m3 of various configurations of a variety of specifications;
2. The technical characteristics of ball mill developed and designed by Luoyang Mining Machinery Factory are:
(1) Cylinder mill adopts the transmission form of edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;
(2) The general use of two static and dynamic pressure bearing support mode, the use of fully enclosed self-alcolating 1200 line contact 'rocker type' bearings, can also use single sliding track, double sliding track static and dynamic pressure support or full static pressure support;
(3) Large open gear adopts American AGMA standard design, equipped with a reliable sealing gear housing, with automatic spray lubrication device glycerin;
(4) Cylinder is the key part of the mill. Finite element analysis is carried out by computer to ensure the reliability of its use.
(5) Large and medium-sized mill equipped with slow driving device;
(6) Large and medium-sized mill equipped with high and low pressure lubrication station;
(7) Control and protection system adopts PLC control.
3. Product parameters of ball mill of Ore Grinding Mill
Technical performance table of luo Mine wet grid ball mill
| Model | Cylinder diameter | Cylinder length | Effective volume | Rotate speed | Load of grinding media | Drive mode | Motor | Dimension (L×W×H) |
Approx weight |
Note | |
| power | Rev | ||||||||||
| Unit | mm | mm | m3 | r/min | t | kw | r/min | m | t | ||
| MQS12×24 | 1500 | 3000 | 5 | 26.6 | 9 | Edge | 95 | 742 | 6.4×2.9×2.6 | 18 | Drum feeder |
| MQS15×15 | 1500 | 1500 | 2.3 | 29.2 | 4.8 | ‥ | 60 | 725 | 5.7×3.2×2.8 | 13.7 | |
| MQS15×24 | 1500 | 2400 | 3.7 | 29.2 | 7.6 | ‥ | 90 | 730 | 6.9×3.3×2.8 | 16.5 | |
| MQS15×30 | 1500 | 3000 | 4.6 | 26.6 | 10 | Edge | 90 | 742 | 7.6×3.4×2.8 | 19.5 | Rubber lining |
| MQS21×30 | 2100 | 3000 | 9.4 | 22.1 | 20 | ‥ | 220 | 740 | 8.5×4.65×3 | 45 | |
| MQS24×30 | 2400 | 3000 | 12.2 | 21 | 25 | ‥ | 250 | 980 | 8.8×4.7×4.4 | 55 | |
| MQS24×70 | 2400 | 7000 | 26.66 | 21 | 54 | ‥ | 475 | 740 | 14.3×5.8×4.4 | 67 | Rubber lining |
| MQS27×21 | 2700 | 2100 | 10.6 | 19.7 | 22 | ‥ | 280 | 733 | 9.7×6.5×4.8 | 69 | |
| MQS27×36 | 2700 | 3600 | 18.5 | 20.5 | 39 | ‥ | 400 | 187.5 | 12×5.8×4 | 74 | |
| MQS27×40 | 2700 | 4000 | 20.5 | 20.24 | 38 | ‥ | 400 | 187.5 | 12.4×5.8×4.7 | 77 | |
| MQS27×60 | 2700 | 6000 | 34.34 | 19.5 | 53 | ‥ | 630 | 589 | 12×5.7×4.5 | 84 | |
| MQS29×41 | 2900 | 4100 | 26 | 19.34 | 42 | ‥ | 450 | 740 | 9.9×6.1×5.1 | 76.1 | |
| MQS31×64 | 3100 | 6400 | 43.7 | 18.3 | 56 | ‥ | 1000 | 167 | 15.2×6.98×5.8 | 141 | |
| MQS32×31 | 3200 | 3100 | 22.65 | 18.3 | 46.9 | ‥ | 500 | 167 | 13.9×7.3×6.0 | 109 | |
| MQS32×36 | 3200 | 3600 | 26.3 | 18.3 | 54 | ‥ | 630 | 167 | 14.3×7.3×6.0 | 116.94 | |
| MQS32×40 | 3200 | 4000 | 29.2 | 18.2 | 60 | ‥ | 710 | 980 | 14.7×7.3×6.0 | 121.4 | |
| MQS32×45 | 3200 | 4500 | 32.9 | 18.3 | 68.5 | ‥ | 800 | 167 | 15.2×7.3×5.9 | 126.23 | |
| MQS32×54 | 3200 | 5400 | 39.4 | 18.3 | 81.6 | ‥ | 1000 | 167 | 16.6×7.3×6.1 | 135.4 | |
| MQS36×45 | 3600 | 4500 | 41.4 | 17.25 | 86 | ‥ | 1000 | 167 | 13.5×7.3×6.3 | 153.1 | |
| MQS36×60 | 3600 | 6000 | 54 | 17.3 | 112 | Edge | 1400 | 167 | 15.5×8.3×6.3 | 190.6 | |
| MQS36×85 | 3600 | 8500 | 79 | 17.4 | 144 | ‥ | 1800 | 743 | 20×8.2×7.1 | 260.89 | |
| MQS40×60 | 4000 | 6000 | 69.8 | 16.0 | 126 | ‥ | 1500 | 200 | 17.4×9.34×7.5 | 215.5 | |
| MQS40×67 | 4000 | 6700 | 76 | 16.0 | 155 | ‥ | 1600 | 980 | 16×8.43×7.5 | 235.2 | |
| MQS40×13.5 | 4000 | 13500 | 157 | 16.5 | 280 | ‥ | 3300 | 980 | 24.2×9.9×7.8 |
284 /375 |
Rubber lining |
