Product Details:
Payment & Shipping Terms:
|
| Features: | High Carrying Capacity And Smooth Operation | Model: | Small Gear, Big Ring |
|---|---|---|---|
| Material: | ZG45、ZG42CrMO | Applicable Equipment: | Rotary Kiln, Ball Mill |
| Suitable: | Cement, Electric Power, Metallurgy, Chemical | Classification: | Mill Girth Gear |
| Weight (t): | 1~35 | Ports: | QingDao,ShangHai,TianJian |
| SPEC: | Customization | Warranty: | 12 Months |
| High Light: | Rotary Kiln Small Mill Girth Gear,Small Ball Mill Girth Gear,Kiln Big Ring Ball Mill |
||
Mill Girth Gear and Small Gear, Big Ring For Rotary Kiln And Ball Mill
1. Product description of pinion gear and big gear ring, mill girth gear
Big gear, also known as big gear ring, is the key component of rotary kiln, ball mill and other equipment. Among them, the big gear ring of rotary kiln is one of the most critical parts in the transmission device of rotary kiln. Its installation quality directly affects the stability of the transmission system of rotary kiln, the stability of the operation of rotary kiln, the service life of kiln lining and the operation rate of rotary kiln.
Due to the requirements of manufacturing capacity, transportation and installation, the ring consists of two half gears connected together with opposite screws and tangentially fixed to the kiln body by a spring plate. In order to complete the installation and alignment of large gear ring with high quality, scientific and feasible construction schemes must be formulated whether it is newly installed or reinstalled after overhaul.

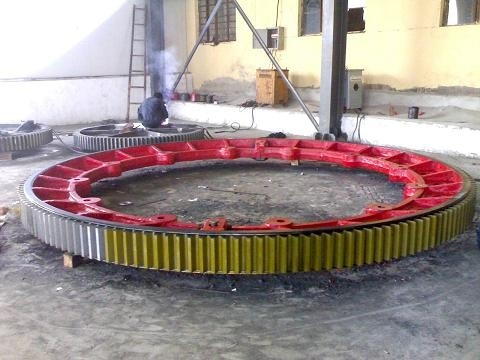

Mill Girth Gear
2. Product parameters of pinion gear and big gear ring, mill girth gear
| Weight | 1~35 T |
| Main material | ZG45,ZG42CrMO |
| Applicable equipment | Rotary kiln, ball mill |
| Suitable for industries | Cement, electric power, metallurgy, chemical, non-metal mining and other industries |

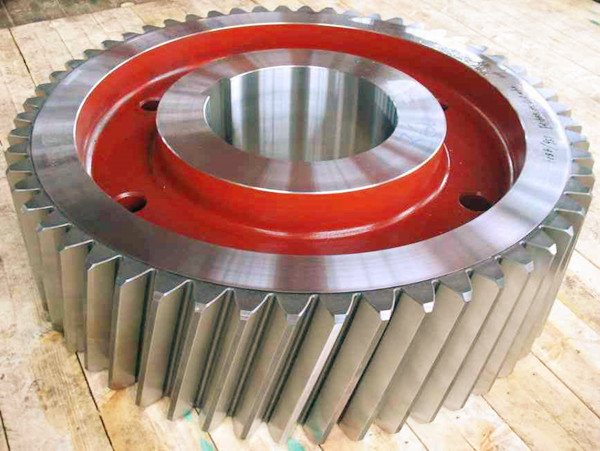

Mill Girth Gear
3. Gear performance characteristics:
(1) High carrying capacity and smooth operation
The helical gear has the characteristics of high bearing capacity, smooth operation and low noise.
(2) Gear production technology advanced, superior stiffness performance
The gear is made of ZG45 or ZG42CrMO alloy cast steel with heat treatment hardness OF HB260 ~ 300. Adopting carburizing quenching grinding process, the hardness of tooth surface is HRC57 ~ 61. The other big gear for the two half split structure, tooth width using Y structure, to ensure good rigidity of gear.
(3) Simple structure, easy to manufacture and daily maintenance
Both sides of big gear flange are machined, both can match with cylinder flange, and can be used by turning around. Pinion and shaft are forged as a whole, both ends of shaft are symmetrical, both milling has keyway, can also be used for turning.
Mill Girth Gear
Mill Girth Gear
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
