Product Details:
Payment & Shipping Terms:
|
| Type: | Pinion Gears, Gear Ring | Main Materials: | ZG45、ZG42CrMO |
|---|---|---|---|
| Characteristics: | High Carrying Capacity And Smooth Operation | Applicable Equipments: | Rotary Kiln, Ball Mill |
| Usage: | Cement, Electric Power, Metallurgy, Chemical | Classification: | Mill Girth Gear |
| Weight (t): | 1~35 T | Port: | QingDao,ShangHai,TianJian |
| SPEC: | Customization | Warranty: | 12 Months |
| High Light: | Mining Equipment Mill Girth Gear,ZG45 Mill Girth Gear,ZG45 Ring Pinion Gears |
||

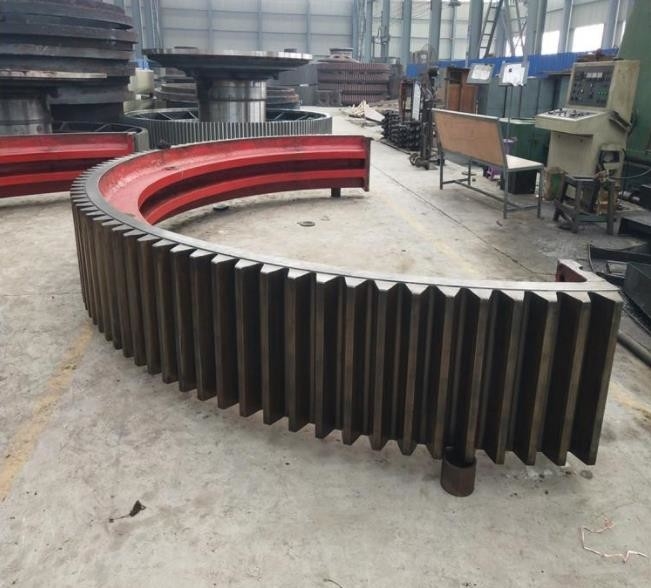

Mining Equipment Parts Mill Girth Gear, Pinion Gears, Gear Ring
1. Product description of pinion gear and big gear ring, mill girth gear
Big gear, also known as big gear ring, is the key component of rotary kiln, ball mill and other equipment. Among them, the big gear ring of rotary kiln is one of the most critical parts in the transmission device of rotary kiln. Its installation quality directly affects the stability of the transmission system of rotary kiln, the stability of the operation of rotary kiln, the service life of kiln lining and the operation rate of rotary kiln.

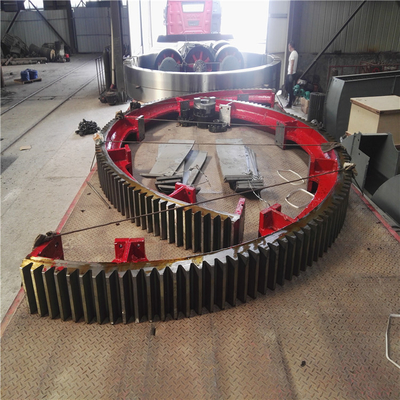

Due to the requirements of manufacturing capacity, transportation and installation, the ring consists of two half gears connected together with opposite screws and tangentially fixed to the kiln body by a spring plate. In order to complete the installation and alignment of large gear ring with high quality, scientific and feasible construction schemes must be formulated whether it is newly installed or reinstalled after overhaul
2. Gear performance characteristics:
(1) High carrying capacity and smooth operation
The helical gear has the characteristics of high bearing capacity, smooth operation and low noise.
(2) Gear production technology advanced, superior stiffness performance
The gear is made of ZG45 or ZG42CrMO alloy cast steel with heat treatment hardness OF HB260 ~ 300. Adopting carburizing quenching grinding process, the hardness of tooth surface is HRC57 ~ 61. The other big gear for the two half split structure, tooth width using Y structure, to ensure good rigidity of gear.
(3) Simple structure, easy to manufacture and daily maintenance
Both sides of big gear flange are machined, both can match with cylinder flange, and can be used by turning around. Pinion and shaft are forged as a whole, both ends of shaft are symmetrical, both milling has keyway, can also be used for turning.
3. Product parameters of pinion gear and big gear ring, mill girth gear
| Weight | 1~35 T |
| Main material | ZG45,ZG42CrMO |
| Applicable equipment | Rotary kiln, ball mill |
| Suitable for industries | Cement, electric power, metallurgy, chemical, non-metal mining and other industries |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
