Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product Name: | Disc Brake Shoe |
|---|---|---|---|
| Tensile Strength(Mpa): | 12.64 | Shear Strength(Mpa): | 26.65 |
| Friction Coefficient(100℃-200℃): | 0.159 | Used For: | Mining Hoist |
| Model: | Wsm-3 Non-Asbestos Shoe | Classification: | Mining Machine Spare Parts |
| Warranty: | 12 Months | After-sales Service Provided: | Online Support |
| High Light: | Wsm 3 Non Asbestos Shoe,Wsm 3 Disc Brake Shoe,Disc Brake Shoe For Mining Machine |
||

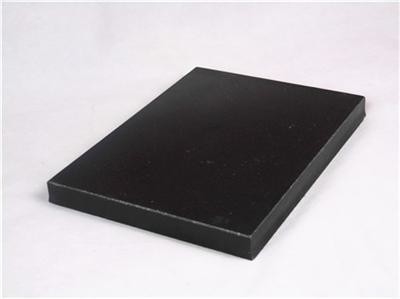

VAsbestos Free Disc Brake Shoe For Mining Machine Spare Parts
1. Product description of disc brake shoe for mining machine spare parts
The brake is realized by the friction of friction, which is a process of transforming kinetic energy into heat energy. The friction material used for friction is the first guarantee of the safety and reliability of the brake. Brake shoe is the main part of mine hoist brake, if the friction coefficient of brake shoe can not meet the design requirements, there will be equipment and personal accidents.
2. Wsm-3 environmental protection asbestos free brake shoe, is a resin based friction material and other reinforced fibers instead of asbestos, features:
(1) High friction coefficient, good mechanical strength, small thermal decline;
(2) Does not contain steel wool and high hardness friction agent, low hardness, not easy to damage the brake disc;
(3) Asbestos free, green environmental protection;
(4) Low wear, long service cycle.
3. Product parameters of disc brake shoe for mining machine spare parts
With people's increasing awareness of environmental protection and self-protection, environmentally friendly non-asbestos brake shoe will eventually replace asbestos brake shoe, and has a wide application prospect. At present, WSM-3 environmental protection asbestos free brake shoe has been designated by Citic Heavy Machinery Co., LTD as the only supporting product, upgrading the product grade.
| Name | Test result |
| Compression strength (Mpa) | 48.8 |
| Tensile strength (Mpa) | 12.64 |
| Shear strength (Mpa) | 26.65 |
| Impact strength of simply supported beams KJ/M2 | 6.9 |
| Hardness (Shao D) | 80±5 |
| The proportion of g/cm2 | 1.97 |
| Friction coefficient 100℃-200℃ | 0.159 |

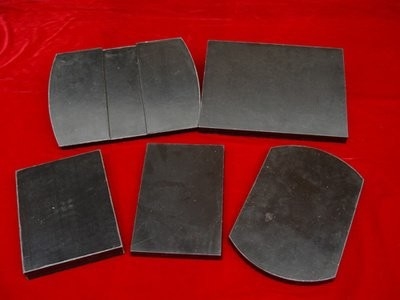

| Brake shoe size table | |
| The hoister manufactures | Specifications and models |
| Citic |
320×238×27 320×238×25 340×238×27 300×200×25 380×240×35 300×200×20 280×200×30 280×195×20 |
| Shanji |
250×175×27 320×200×30 270×180×28 320×200×35 |
| Jingzhou | 280×185×20 280×200×22 280×205×22 |
| Hunan | 310×200×35 260×205×22 301×220×25 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
