| Product Name: | Bucket Elevator | Condition: | New |
|---|---|---|---|
| Type: | Conveying Hoisting Machine | Application: | Stones And Bulk Materials |
| Warranty: | 12 Months | Uasge: | Building Materials, Chemical |
| Application Industry: | Cement Plant, Steel Mill, Chemical Plant & Incinerator | Port: | QingDao,TianJian,ShangHai |
| Speed: | 0.4-2 M/s | Maximum Feed Size: | 55 Mm |
Bucket Elevator Conveying Hoisting Machine Conveying Height 40m
1. Basic introduction of bucket elevator
The bucket elevator has the advantages of large conveying capacity, high lifting height, stable and reliable operation, and long service life. Such as: coal, cement, stone, sand, clay, ore, etc. Since the traction mechanism of the hoist is a circular chain, it is allowed to transport materials with high temperature (material temperature does not exceed 250 ℃). The general conveying height can reach up to 40 meters. The TG type can reach up to 80 meters.
Bucket elevator is suitable for lifting from low to high. After the supplied material is put into the hopper through the vibrating table, the machine automatically runs continuously and transports upwards. The conveying speed can be adjusted according to the conveying volume, and the lifting height can be selected as needed. The hopper is designed and manufactured by ourselves. The PP non-toxic hopper makes this type of bucket elevator more widely used. All sizes are designed and manufactured according to actual needs. Machine, computer measuring machine design, suitable for the lifting and feeding of food, medicine, chemical industrial products, screws, nuts and other products, can control the automatic stop and start of the machine through the signal recognition of the packaging machine.
Bucket elevator is a continuous conveying machine that vertically lifts materials by using a series of hoppers evenly fixed on the endless traction member. It is divided into three types: ring chain, plate chain and belt.
2. Conveying hoisting machine technical parameters
| Model | Capacity (t/h) |
Maximum feed Size(mm) |
Speed (m/s) |
Bucket distance(mm) | Weight(kg) | |
| 10m | ±1m | |||||
| D160S/Q | 8/3.1 | 25 | 1.0 | 300 | 1580 | 100 |
| D250S/Q | 21.6/11.8 | 35 | 1.25 | 400 | 2930 | 130 |
| D350S/Q | 42/25 | 45 | 1.25 | 500 | 3315 | 190 |
| D450S/Q | 69.5/48 | 55 | 1.25 | 640 | 4664 | 250 |
| TD160S/Q | 27/9 | 25 | 1.4 | 350/280 | 1640 | 120 |
| TD250S/Q | 59/20 | 35 | 1.6 | 450/360 | 3060 | 150 |
| TD315S/Q | 67/28 | 40 | 1.6 | 500/400 | 3310 | 180 |
| TD400S/Q | 110/40 | 45 | 1.8 | 560480 | 4016 | 210 |
| TD500S/Q | 154/63 | 50 | 1.8 | 625/500 | 5110 | 280 |
| TD630S/Q | 238/142 | 60 | 2.0 | 710 | 8160 | 430 |
| HL300S/Q | 28/16 | 40 | 1.25 | 500 | 3930 | 200 |
| HL400S/Q | 47/30 | 50 | 1.25 | 600 | 4990 | 260 |
| TH315Sh/Zh | 59/35 | 35 | 1.4 | 512 | 3860 | 160 |
| TH400Sh/Zh | 94/58 | 40 | 1.4 | 512 | 4780 | 180 |
| TH500Sh/Zh | 118/73 | 50 | 1.5 | 688 | 5620 | 235 |
| TH630Sh/Zh | 185/114 | 55 | 1.5 | 688 | 8670 | 453 |
| PL250 | 22.3/30 | 35 | 0.5 | 200 | 3012 | 136 |
| PL350 | 50/59 | 45 | 0.4 | 250 | 4180 | 214 |
| PL450 | 85/100 | 50 | 0.4 | 320 | 5660 | 293 |
| ZL250 | 55 | 35 | 0.58 | 250 | 3217 | 148 |
| ZL350 | 80 | 45 | 0.58 | 250 | 4210 | 175 |
| ZL450 | 120 | 50 | 0.58 | 300 | 5692 | 250 |
| ZL600 | 160 | 55 | 0.58 | 300 | 9374 | 480 |
3. Working principle
The hopper scoops up the material from the storage below, lifts it to the top with the conveyor belt or chain, turns around the top wheel and turns down, and the bucket elevator dumps the material into the receiving trough. The drive belt of the belt-driven bucket elevator generally adopts a rubber belt, which is installed on the lower or upper driving drum and the upper and lower redirecting drums. The chain-driven bucket elevator is generally equipped with two parallel transmission chains, with a pair of transmission sprockets on the top or bottom, and a pair of redirecting sprockets on the bottom or top. Bucket elevators are generally equipped with casings to prevent dust from flying in the bucket elevators.

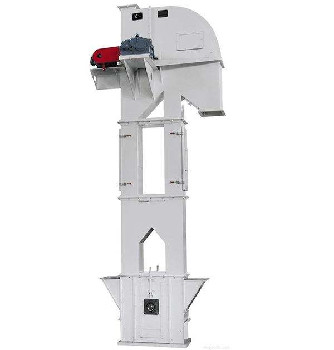

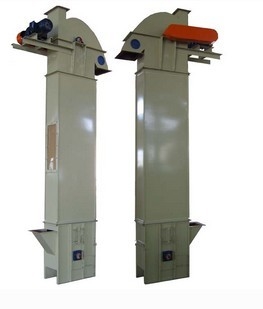

4. Conveying hoisting machine photo explanation
