Product Details:
Payment & Shipping Terms:
|
| Product Name: | Chain Conveyor | Condition: | New |
|---|---|---|---|
| Type: | Conveying Hoisting Machine | Application: | Stones And Bulk Materials |
| Warranty: | 12 Months | Uasge: | Building Materials, Chemical |
| Application Industry: | Cement Plant, Steel Mill, Chemical Plant & Incinerator | Port: | QingDao,TianJian,ShangHai |
Chain Conveyor Conveying Hoisting Machine Sleeve Roller 4.5m Bending Radius
1. Basic introduction of chain conveyor
It is widely used in transportation and production lines in mining, metallurgy, chemical, foundry, building materials and other industries, as well as in production departments such as hydropower station construction sites and ports.
The chain conveyor uses the chain as the traction and carrier to transport the material. The chain can use the ordinary sleeve roller conveyor chain, or various other special chains (such as accumulation chain, double-speed chain). The chain conveyor has a large conveying capacity, mainly conveying pallets, large turnover boxes, etc. The conveyor chain has various structures and various accessories, which is easy to realize accumulation and transportation, and can be used as an assembly line or as a storage and transportation of materials.
The two chains of the synchronous chain conveyor move synchronously, which is suitable for various assembly conveyor lines. The belt conveyor is very popular with users because of its large capacity, long transportation distance and low energy consumption, but because the plane cannot be bent, the scope of application is limited. limit. Due to the change of geological conditions in coal mines, the transportation roadway must be bent when encountering faults, forcing the long-distance transportation system to be divided into broken lines, so multiple belt conveyors (or scrapers) have to be used to form multi-section broken line transportation lines to complete the transportation task. For open-pit mining coal mines, iron ore and other transportation systems, due to the change of stope, the belt cannot be in a straight line, so it has to be transported by expensive vehicles. The latest generation of laterally moving flexible belt conveyors have a minimum bending radius of 4.5 meters. A flexible belt conveyor, instead of multiple belt conveyors and scraper conveyors, realizes the total transportation of one belt conveyor in underground mining and open pit. Bendable belt conveyor bend angle and radius of curvature.
The conveyor belt moves according to the principle of friction transmission. It has the advantages of large conveying capacity, long conveying distance, stable conveying, no relative movement between the material and the conveying belt, low noise, simple structure, convenient maintenance, low energy consumption, and standardized components.
2. Conveying hoisting machine technical parameters
| Belt width(mm) | Conveying length(m)/Power(Kw) | Transfer speed(m/S) | Delivery volume (t/h) | ||
| 400 | ≤12/2.2 | 12∽20/2.2∽4 | 20∽25/3.5∽7.5 | 1.25∽2.0 | 30∽60 |
| 500 | ≤12/3 | 12∽20/3∽5.5 | 30∽30/5.5∽7.5 | 1.25∽2.0 | 40∽80 |
| 650 | ≤12/4 | 12∽20/4∽5.5 | 20∽30/5.5∽11 | 1.25∽2.0 | 80∽120 |
| 800 | ≤6/4 | 10∽15/4∽5.5 | 15∽30/5.5∽15 | 1.25∽2.0 | 120∽200 |
| 1000 | ≤10/5.5 | 10∽20/5.5∽11 | 20∽40/11∽22 | 1.25∽2.0 | 200∽320 |
| 1200 | ≤10/7.5 | 10∽20/7.5∽15 | 20∽40/15∽30 | 1.25∽2.0 | 320∽480 |
3. Product Features
(1) The chain conveyor has low price, simple structure and convenient maintenance;
(2) The chain conveyor is suitable for conveying line plates and material boxes;
(3) The chain plate conveyor is suitable for matching with lifting and transferring conveyors, steering conveyors, pallet supply collectors, etc.;
(4) The frame structure of the chain conveyor can be made of aluminum profiles or carbon steel (sprayed after surface phosphating).

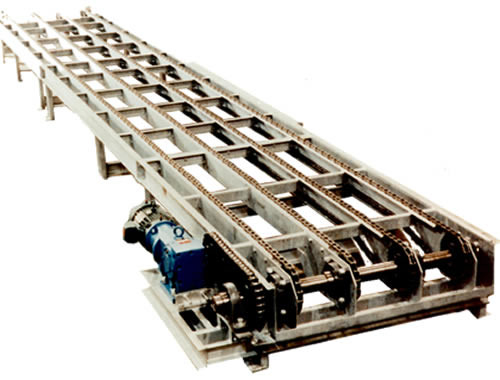

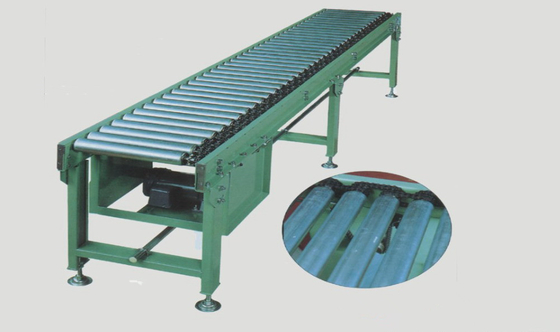

4. Conveying hoisting machine photo explanation
Contact Person: Mr. David
Tel: 86-18637916126
