| Product Name: | Belt Conveyor | Condition: | New |
|---|---|---|---|
| Type: | Conveying Hoisting Machine | Application: | Stones And Bulk Materials |
| Warranty: | 12 Months | Uasge: | Building Materials, Chemical |
| Application Industry: | Cement Plant, Steel Mill, Chemical Plant & Incinerator | Port: | QingDao,TianJian,ShangHai |
Belt Conveyor Conveying Hoisting Machine -10℃~50℃ Low Noise Level
1. Basic introduction
Belt conveyor is the abbreviation of belt conveyor, there are fixed type and mobile type, with simple structure and high efficiency. Continuous conveying machinery with flexible conveyor belt as material carrying and traction member. An endless conveyor belt loops around the drive and redirection pulleys. The upper and lower branches between the two rollers are each supported by several idlers. The material is placed on the upper branch, and the frictional force between the driving roller and the belt is used to drag the conveyor belt and the material to run. It is suitable for conveying bulk materials and finished articles in horizontal and inclined directions, and can also be used in assembly lines for certain process operations. Simple structure, stable and reliable work, strong adaptability to materials, large conveying capacity, low power consumption, and wide application.
2. Conveying hoisting machine technical parameters
| Tape width(mm) | Belt length/power | Transfer speed(r/s) | Capacity(t/h) | ||
| Ⅰ(L/kW) | Ⅱ(L/kW) | Ⅲ(L/kW) | |||
| B400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.3-1.6 | 40-80 |
| B500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 80-190 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 130-320 |
| B800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 280-550 |
| B1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2 | 440-850 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2 | 660-1200 |
3. Features
The belt conveyor has the characteristics of simple structure, easy maintenance, low energy consumption and low cost of use, and also has the following characteristics:
(1) There are many kinds of materials that can be transported, which can transport various bulk materials, as well as various cartons, packaging bags and other light-weight products, and can also be used for commodity transportation at the cashier of large supermarkets, with a wide range of uses;
(2) Belt conveyors have various structures, such as grooved belt conveyors, flat belt conveyors, climbing belt conveyors, roll belt conveyors, turning belt conveyors, etc., and push plates and side blocks can also be added to the conveyor belt. Plates, skirts and other accessories can meet various process requirements;
(3) The belt conveyor adopts special food-grade conveyor belt, which can meet the requirements of food, pharmaceutical, daily chemical and other industries;
(4) The conveying is stable, and there is no relative movement between the material and the conveyor belt, which can avoid damage to the conveyed material;
(5) Compared with other conveyors, the noise is smaller, and it is suitable for occasions where the working environment is relatively quiet.

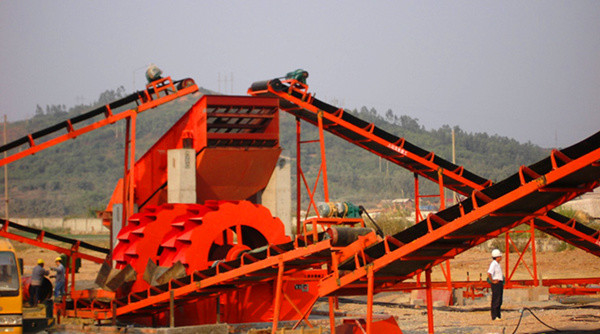

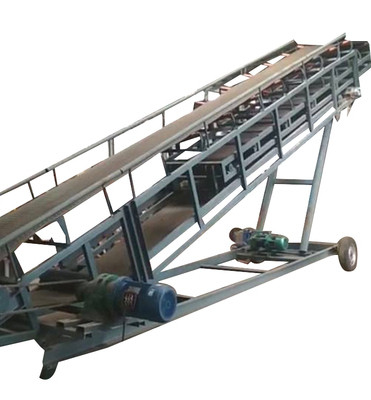

4. Conveying hoisting machine photo explanation
