Vibrating Feeder Conveying Hoisting Machine GZG Series Self-Synchronizing Inertial

Vibrating Feeder Conveying Hoisting Machine GZG Series Self-Synchronizing Inertial

1. Working principle

The motor vibration feeder uses two vibration motors of the same specification as the excitation source, and uses the eccentric blocks at both ends of the vibration motor to generate the excitation force, which is an ideal vibration drive device. The feeding process of the motor vibrating feeder is realized by reciprocating linear vibration in the inclined direction of the feeding trough. When the component of the vibration acceleration of the tank body is greater than the component of the gravitational acceleration in the vertical direction of the tank body, the material in the tank is thrown up and jumps forward according to the parabolic wheel track. Each time the tank body vibrates, the material will be thrown up once , In this way, the material continuously jumps forward at the vibration frequency of the tank body to achieve the purpose of feeding.

2. Conveying hoisting machine technical parameters

3. Structural features

(1) The vibration is stable;

(2) Special grid bar equipment can prevent material clogging;

(3) The grid gap is adjustable;

(4) The stepless speed regulating motor is optional, which is convenient to control the feeding amount, and there is no need to start the motor frequently.

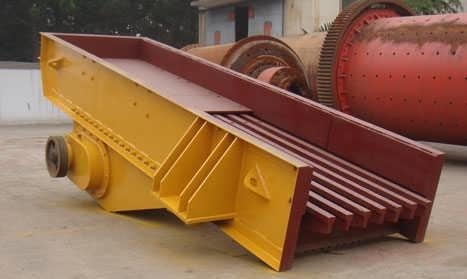

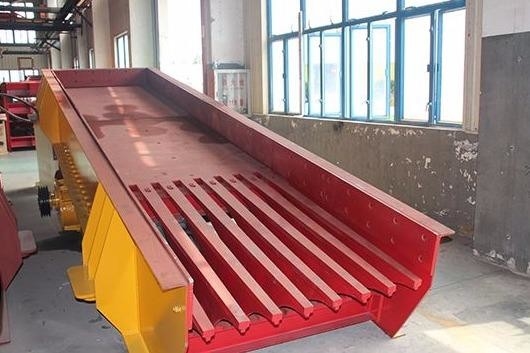

4. Conveying hoisting machine photo explanation

5. Product introduction

GZG series self-synchronizing inertial vibrating feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, grain and other industries to transfer block, granular and powder materials from storage bins or hoppers It is evenly and continuously or quantitatively fed to the receiving device. For example, feeding, batching, etc. to crushing, coal preparation, screening, transportation, packaging machinery, etc.

GZG series self-synchronizing inertial vibrating feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, grain and other industries to transfer block, granular and powder materials from storage bins or hoppers It is evenly and continuously or quantitatively fed to the receiving device. For example, feeding, batching, etc. to crushing, coal preparation, screening, transportation, packaging machinery, etc.

GZG series feeder is a common trough type, which is used for feeding materials without special requirements.
