Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Model: | Mill Liner Plate |
|---|---|---|---|
| Material: | ZGMn13 | Dimension: | Customizable |
| Application: | Ore Mining | Port: | QingDao,ShangHai,TianJin |
| Type: | Castings And Forgings | Warranty: | 12 Months |
| High Light: | Castings And Forgings Mill Liners,Mining Machine Cement Mill Liners,Forgings Cement Mill Liners |
||

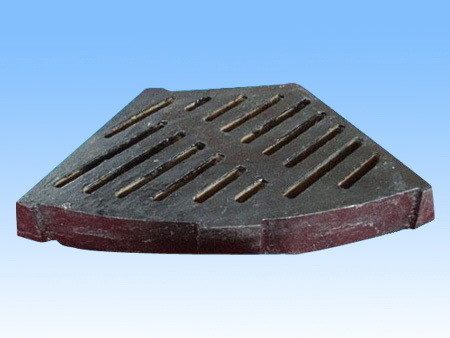

Mining Machine Parts Castings And Forgings Of Ball Mill Liner
1. Performance description of ball mill liner castings and forgings
Using internationally recognized advanced mill liner simulation special software, optimize the structure and size of the liner.
The tube and end cover lining plate are made of wear-resisting chromium-molybdenum alloy steel and convex lining plate to improve service life and grinding effect.
The lining plate is secured with flat head bolts, complete with self-locking nut and sealing washer. The joint bolts have special sealing measures to prevent leakage.
The number of bolts to hold the lining plate is 5%.
Wear-resistant rubber filling strips are used at the joint of the end cover liner and barrel, which are fixed by the adjacent liner.
The rubber liner between the cylinder and the liner is 6mm thick to reduce noise.
The lining plate is installed on the inner wall of the ball mill barrel to protect the inner wall from wear and control the movement of the steel ball in the barrel. For this purpose, the lining plate must be wear-resistant, the surface geometry is suitable, and it is as easy as possible to manufacture, assemble and disassemble and maintain. Ball mill lining material can choose hard steel, high manganese steel, chromium steel, alloy cast steel, rubber and magnetic lining plate, etc.
2. Ball mill liner castings and forgings product parameters
Ball mill liner classification:
| Classification | Feature | Note |
| High manganese steel liner(ZGMn13) | It has enough impact toughness, and the surface can be cold hardened and become hard and wear-resistant when subjected to a certain impact. Therefore, high manganese steel is widely used to make the lining board. | High manganese steel processing technical conditions are high, the price is also more expensive, for grinding based on fine grinding, the impact resistance of the lining plate is not high, can choose wear-resistant and cheaper other alloy cast iron. (Wear-resistant white iron, chilled cast iron, medium manganese rare earth nodular cast iron) |
| Rubber lining |
The wear resistance; Corrosion resistance; Convenient assembly and disassembly; The rubber liner has less noise when working. |
Its disadvantage is: not high temperature resistance, not suitable for use in dry grinding machine. |
| Magnetic lining board |
Long life, 4~6 times of high manganese steel lining plate; The maintenance cost of liner is low, which is 25%~40% of that of high manganese steel liner. Single block small volume, easy installation, no maintenance, improve the mill operation rate of 3%~4%; Light weight, reduce mill load, reduce power consumption by 4%~7%; Thin thickness, can increase the volume of the mill, improve the capacity of the mill; The crushing medium adsorbed on the surface of the lining plate can improve the grinding conditions and reduce the consumption of medium by 5%~7%. Barrel body without bolts, avoid pulp leakage, can improve the barrel body, gear and other parts life. |
In recent years, the magnetic lining has developed rapidly and its performance has been improved. Ball mill magnetic lining plate is made of rubber or steel wrapped permanent magnet material, so it is divided into metal magnetic lining plate and rubber magnetic lining plate, the former is more widely used at present. Due to a section of the ball mill to the ore size, impact, serious wear, so magnetic lining is generally only suitable for two sections of the ball mill. |

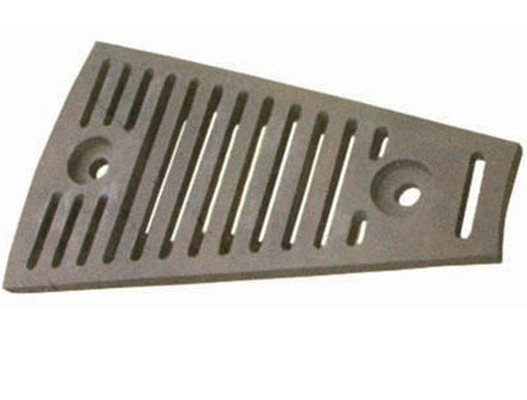

Mining Machine Parts Castings And Forgings Of Ball Mill Liner
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Contact Person: Mr. David
Tel: 86-18637916126
