Washing Screening Equipment Castings And Forgings Disc Filter Fan Plate

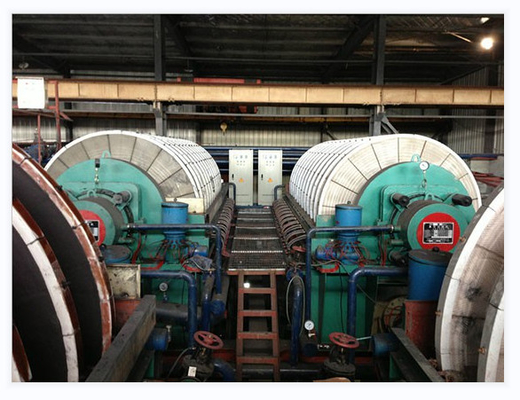

1. Product introduction of fan plate castings and forgings

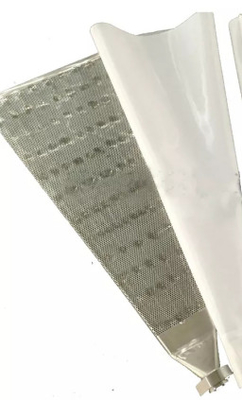

Fan-shaped plate, disc filter fan-shaped plate, filter plate sector, PG/GPY disc filter sector plate - disc filter fan-shaped plate, a new engineering plastics sector plate light weight, high strength, good hydrophobic, opening rate is high, the better effect of dewatering and cake, filter cake moisture content is low, service life is long, corrosion resistance, convenient decorating.
2. Table of related accessories of disc filter castings and forgings
(1) Cylinder body
Inner filter cylinder, outer filter cylinder, folding cylinder
(2) Transmission department
Roller, worm gear, worm gear, reducer,
(3) Filtration section
Filter plate, filter cloth, vacuum head, gas-water separator, wrong air disc
3. Product parameters of fan-shaped plate for disc vacuum filter castings and forgings
(1)Product parameters of GPY series disc vacuum filter castings and forgings
| Model | GPY-20 | GPY-30 | GPY-40 | GPY-60 | GPY-80 | GPY-100 | GPY-120 | GPY-140 | GPY-160 | GPY-180 | GPY-200 |
| Filter area(㎡) | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | 164 | 184 | 204 |
|
Filter plate number (PCS) |
4 | 6 | 4 | 6 | 8 | 10 | 12 | 7 | 8 | 9 | 10 |
| Filter diameter(mm) | 1800 | 2700 | 3840 | ||||||||
| Number of filter fans in each disk(PCS) | 10 | 12 | |||||||||
(2) Technical parameters of new engineering plastic sector plate:
| Technical parameters of new engineering plastic sector plate: | ||||||
| Performance of the project |
|
Test method | Test data |
|
||
| Physical Property | Melt flow rate | 200℃ 5kg | ASTM D-1238 | 4.5 | g/10min | |
| Melt flow rate | 200℃ 21.6kg | ASTM D-1238 | 50 | g/10min | ||
| The proportion of | --- | ASTM D-792 | 1.04 | 23/23℃ | ||
| Model shrinkage | --- | ASTM D-955 | 0.4~0.7 | % | ||
| Mechanical property | The tensile strength | 23℃ | ASTM D-638 | 480 | kg/cm2 | |
| The bending strength | 23℃ | ASTM D-790 | 650 | kg/cm2 | ||
| Bending modulus | 23℃ | ASTM D-790 | 24000 | kg/cm2 | ||
| Rockwell hardness | --- | ASTM D-785 | 108 | R | ||
| elongation | --- | ASTM D-638 | 30 | |||
| Notch impact strength | 23℃/8in(3.2mm) | ASTM D-256 | 26 | % | ||
| Notch impact strength | 23℃/4in(6.4mm) | ASTM D-256 | 23 | kg.cm/cm | ||
| Thermal property | Distortion temperature | unannealed | 6.4mm 186kg/cm2 | ASTM D-648 | 85(185) | kg.cm/cm |
| anneal | 95(203) | ℃('f) | ||||
| vicat softening point | --- | ASTM D-1525 | 95(203) | ℃('f) | ||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
