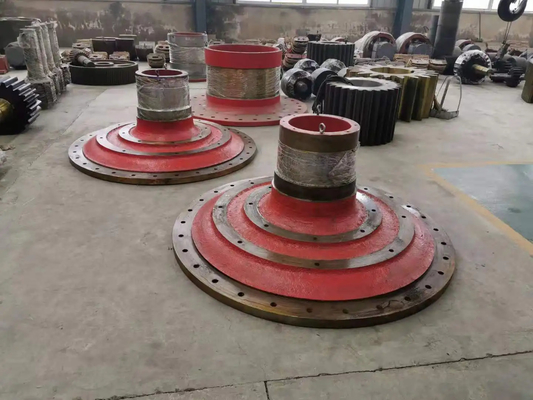

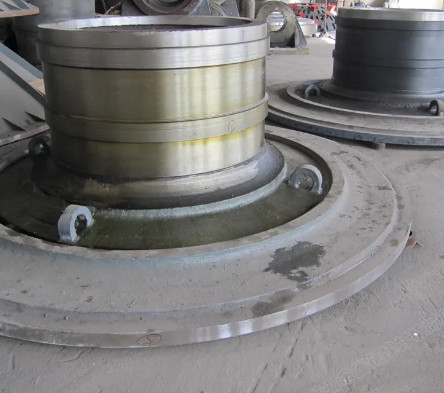

ZG270—500 Cast Steel Castings And Forgings Ball Mill End Cover End Cap
1. Introduction of ball mill end cover castings and forgings
The end cover of the ball mill is one of the main parts of the ball mill produced by our factory. End cover material is ZG270-500.
The strength of the dangerous section of the ball mill end cover is the first problem to be considered in the design of the end cover, because the rather heavy ball mill barrel is supported on the main bearing by the end cover.
2. Processing technology measures of ball mill end cover castings and forgings
| End cover and hollow shaft |
⑴ High quality cast steel ⑵ Large R rounded corners ⑶ High strength bolts are connected with the cylinder body |
⑴ Outside refining of molten steel furnace (argon blowing and R-H vacuum treatment) (2) The mold adopts special sand, strictly control pouring temperature and pouring speed (3) Journal processing to ensure the coaxiality and roughness of the end face stop |
⑴ Mechanical properties and chemical composition of casting blank (internal control standard) ⑵ Ultrasonic inspection after rough machining ⑶ Ultrasonic inspection and magnetic particle inspection after finishing |
3. Ball mill inlet and outlet cover castings and forgings
Integral end cover
The whole end cover first according to the uniformity of the blank line, if there is no problem with the rough car big end, small end of the surface and the inner cone, according to the technical requirements of the shaft neck and shoulder area to do ultrasonic flaw detection, the defects of the finishing, half fine axle neck to leave the amount of grinding, the rest of the surface fine car. Conduct magnetic particle inspection on the journal and shoulder area, grind the journal datogram requirements with sand belt, and drill the other holes for datogram requirements. The main technical points of the integral end cover in the processing process are the journal of the end cover. The ball mill generally uses the static bearing, and the journal is the main contact surface. The size, roughness and shape and position tolerance requirements are very strict. Within 05mm, the surface roughness should be ≤0. 8um. For this requirement, the measures we take are to ensure the tolerance of size and shape and position through the working procedure, to leave the amount of grinding in the journal area during finishing, and finally to ensure the roughness of the journal area by grinding and polishing with sand belt. Because the belt grinding is always in a flexible state in the grinding process, the surface roughness can be reduced to meet the requirements of the drawing and the shape and position tolerance can not be changed. For example, there are sporadic small defects in the journal after finishing. The defects should be ground open and then welded with argon arc welding. Finally, the oil stone is ground well. If there is a high point, the ball mill will wear out the bearing tile supporting it in the process of field operation.
