Big Kiln Girth Gear Ring Mill Girth Gear And Mill Pinion Gear Smooth Operation

Big Kiln Girth Gear Ring Mill Girth Gear And Mill Pinion Gear

1. Technical requirements of large gear ring for mill girth gear

(1) The surface pretreatment before quenching is normalized, and the hardness should be HB210~250; Mechanical properties are strength limit Rb690MPa, yield limit Rs490MPa, elongation d511%, area reduction w25%, impact toughness value Ak30J. Tooth induction hardening, hardness of HRC50~55; Effective hardening depth 3~5mm.

(2) Ultrasonic inspection shall be carried out on the whole, and the internal quality shall meet the secondary requirements stipulated in GB7233-87 standard; Gear tooth and transition fillet magnetic particle inspection, quality should meet GB/T9444-88 standard requirements.

(3) Uncast rounded corners R5~R10.

(4) Chamfering of both ends and edges along the tooth width. Big gear ring by two half gear ring connected with high strength bolts into a whole gear ring, the joint surface must be in the center of the tooth bottom.

2. Product parameters of big ring for mill girth gear

3. Manufacturing process of big tooth ring for mill girth gear

(1) Blank

The steel casting blank is provided by the heavy casting and forging Plant of CITIC Heavy Industry Machinery Co., LTD. It is implemented in accordance with gb11352-89 standard. Molding, smelting, pouring, box beating, cleaning and dressing castings according to casting process requirements; During the inspection and acceptance, the cast steel blank shall be checked according to the drawings and technical requirements, and the process shall be put down after passing the acceptance according to JB/T6402-92 standard.

(2) Rough machining

Draw lines according to the requirements of the drawings and set aside processing allowance, alignment, connection, processing inner and outer circle, milling joint surface, drilling and other processes.

(3) Agent injury

Ultrasonic inspection shall be carried out on the whole, and the internal quality shall meet the secondary requirements of GB7233-87 standard.

(4) Normalizing pretreatment

The half ring is normalized and tempered in pairs to provide good microstructure for subsequent surface quenching. And according to the requirements of the drawings to check the deformation of half gear ring after heat treatment.

4. Case introduction of large ring gear

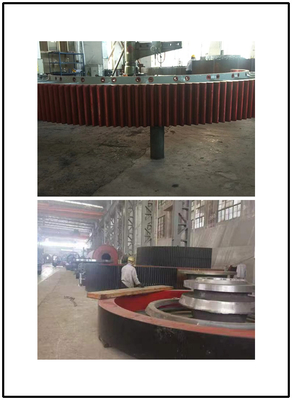

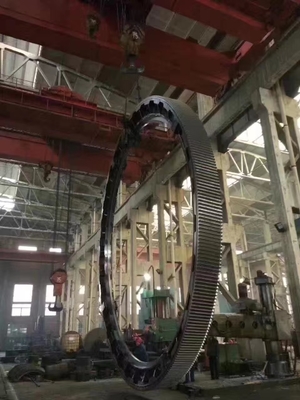

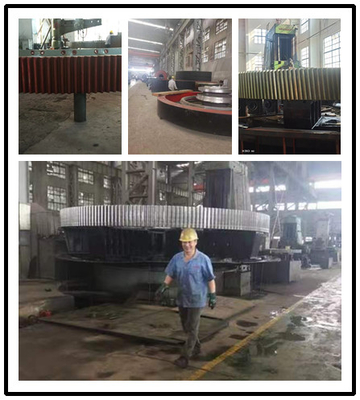

(1) The largest ring gear in China -- the largest ring gear in the world is coming off the assembly line in Luoyang Zhongxin Heavy Machinery Group Co., LTD., Henan Province. The ring has a diameter of 9.936 meters, an inner diameter of 7.950 meters, and a total weight of 80 tons. The outer end of the ring is lined with 274 teeth 0.9 meters high.

(2) Citic Heavy Machinery Co., Ltd. has signed a production contract with Wuhan Iron and Steel Group to manufacture the world's largest oxidized pellet sintering kiln for it. As a key part of sintering kiln, the processing of large ring gear attracts attention. Previously, Citic heavy machinery processing ring maximum diameter of 8.8 meters. The successful production of large gear ring of Wuhan Iron and Steel Co., Ltd. has achieved another significant breakthrough in the history of Chinese and world gear ring processing. The ring has a diameter of 9.936 meters, an inner diameter of 7.950 meters, and a total weight of 80 tons. The outer end of the ring is lined with 274 teeth 0.9 meters high. The successful production of large tooth ring has achieved another significant breakthrough in the history of Chinese and world tooth ring processing.
