| Product: | Cone Crusher | Name: | DP Single Cylinder Hydraulic Cone Crusher |
|---|---|---|---|
| Model: | DP100S | Weight: | 7350 (kg) |
| Motor Power: | 90 (kW) | Maximum Feeding Size: | 170 (mm) |
| Classification: | Stone Crusher Machine | Warranty: | 12 Months |
| High Light: | IOS Single Cylinder Hydraulic Cone Crusher,CE Single Cylinder Hydraulic Cone Crusher |
||

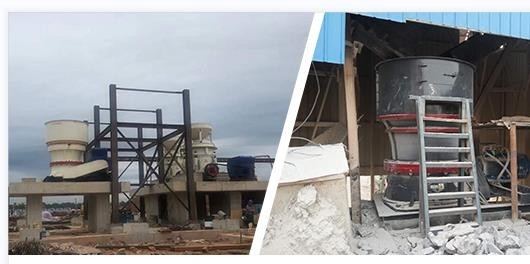

Single Cylinder Hydraulic Cone Crusher Stone Crusher Machine For Iron Ore
1. Overview of DP single cylinder hydraulic cone crusher stone crusher machine
Output: ≤500T/H
Feeding size: ≤380
Applicable materials: iron ore, copper ore, quartz, granite, basalt, diabase
Application: Metallurgical industry, construction industry, road industry, chemical industry and phosphate industry.
2. Product introduction of DP single cylinder hydraulic cone crusher stone crusher machine
DP single cylinder cone crusher is used for mineral fine crushing operation crushing equipment. Respectively used for coarse crushing, medium crushing, fine crushing. The ability to break the material to the required size range, and meet the customer's production requirements.
3. Product advantages of DP single cylinder hydraulic cone crusher stone crusher machine
(1) The grain type is neat and the yield is high
(2) High crushing capacity
(3) Continuous and stable operation, and can prevent the automatic overload protection due to iron mixing
(4) Rotating feeding device makes lining wear evenly
4. Product parameters of DP single cylinder hydraulic cone crusher stone crusher machine
| Model | DP100S | DP100 | DP430S | DP430 | DP440S | DP440 | DP660S | DP660 | DP870 |
| Weight (kg) | 7350 | 5700 | 12000 | 9200 | 19300 | 14300 | 35700 | 26800 | 49800 |
| Maximum maintenance weight (kg) |
2800 | 2000 | 5200 | 3000 | 8200 | 4800 | 16800 | 8600 | 13200 |
| Motor power (kW) |
90 | 90 | 132 | 132 | 220 | 220 | 315 | 315 | 500 |
| Model l | Cavity type | Maximum feeding size (mm) |
Discharge port (CSS) corresponding output (t/h) | ||||||||||||||
| 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 44mm | 51mm | 57mm | 64mm | 71mm | |||
DP100 |
M | 105 | 55-60 | 60-85 | 65-95 | 70-100 | 75-90 | ||||||||||
| MF | 85 | 45-50 | 50-70 | 55-80 | 60-85 | 65-90 | 65-80 | ||||||||||
| EF | 32 | 40-55 | 40-60 | 45-70 | 55-75 | 60-75 | 65 | ||||||||||
DP430 |
EC | 185 | 69-108 | 75-150 | 80-161 | 86-171 | 91-182 | 104-208/ | 115-208 | ||||||||
| C | 145 | 66-131 | 71-142 | 76-152 | 81-162 | 86-173 | 98-197 | 109-150 | |||||||||
| MC | 115 | 57 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 93-145 | |||||||||
| M | 90 | 64-84 | 69-131 | 75-142 | 80-152 | 86-162 | 91-154 | 104 | |||||||||
| MF | 75 | 61 | 65-106 | 70-115 | 76-124 | 81-126 | 87-114 | 92 | |||||||||
| F | 50 | 48-78 | 51-83 | 54--88 | 59-96 | 63-103 | 68-105 | 72-95 | 77 | ||||||||
| EF | 35 | 70-90 80% of them are smaller than 5mm-5.6mm | |||||||||||||||
DP440 |
EC | 215 | 114-200 | 122-276 | 131-294 | 139-313 | 159-357 | 175-395 | 192-384 | ||||||||
| C | 175 | 101 | 109-218 | 117-292 | 125-312 | 133-332 | 151-378 | 167-335 | 183-229 | ||||||||
| MC | 140 | 97-122 | 105-262 | 113-282 | 120-301 | 128-320 | 146-328 | 161-242 | |||||||||
| M | 110 | 117-187 | 126-278 | 136-298 | 145-318 | 154-339 | 175-281 | 194 | |||||||||
| MF | 85 | 114 | 124-227 | 134-245 | 144-263 | 153-281 | 163-299 | 186-248 | |||||||||
| F | 70 | 90-135 | 96-176 | 104-191 | 112-206 | 120-221 | 129-236 | 137-251 | 156-208 | ||||||||
| EF | 38 | 100-125 80% of them are smaller than 6mm-7.5mm | |||||||||||||||
DP660 |
EC | 270 | 177 | 190-338 | 203-436 | 216-464 | 246-547 | 272-605 | 298-662 | 328-511 | |||||||
| CX | 235 | 174-194 | 187-374 | 200-488 | 212-519 | 242-592 | 268-654 | 293-521 | 323-359 | ||||||||
| C | 215 | 171-190 | 184-367 | 196-480 | 209-510 | 238-582 | 263-643 | 288-512 | 317-353 | ||||||||
| MC | 175 | 162-253 | 174-426 | 186-455 | 198-484 | 226-552 | 249-499 | 273-364 | |||||||||
| M | 135 | 197-295 | 211-440 | 226-470 | 240-500 | 274-502 | 302-403 | ||||||||||
| MF | 115 | 192 | 207-369 | 222-396 | 237-423 | 252-450 | 287-451 | 318-363 | |||||||||
| F | 90 | 195-304 | 210-328 | 225-352 | 241-376 | 256-400 | 292-401 | 323 | |||||||||
| EF | 65 | 211-293 | 227-316 | 244-298 | 261-290 | ||||||||||||
DP870 |
EC | 300 | 448-588 | 477-849 | 544-968 | 601-1070 | 658-1172 | 725-1291 | 782-1393 | 849-1512 | 906-1331 | ||||||
| C | 240 | 406 | 433-636 | 461-893 | 525-1018 | 581-1125 | 636-1232 | 700-1357 | 756-1464 | 820-1461 | 876-1286 | ||||||
| MC | 195 | 380-440 | 406-723 | 432-837 | 492-954 | 544-1055 | 596-1155 | 657-1272 | 708-1373 | 769-1370 | 821-1206 | ||||||
| M | 155 | 400-563 | 428-786 | 455-836 | 519-953 | 573-1054 | 628-1154 | 692-1271 | 746-1372 | 810-1248 | 865-1098 | ||||||
| MF | 100 | 379-424 | 407-716 | 434-765 | 462-814 | 527-928 | 852-942 | 638-789 | 702 | ||||||||
| F | 90 | 357-395 | 385-656 | 414-704 | 442-752 | 470-800 | 535-912 | 592-857 | 649-718 | ||||||||
| EF | 80 | 280-405 | 304-517 | 328-558 | 352-598 | 376-639 | 400-680 | 455-775 | 503-758 | 551-669 | |||||||
