Product Details:
Payment & Shipping Terms:
|
| Product: | Oxidation Pellet Rotary Kiln | Output: | 300 T |
|---|---|---|---|
| Condition: | New | Type: | Two Sides Hydraulic Drive |
| Warranty: | 12 Month | Motor: | ZSN4-315-092 |
| Power: | 190kw | Classification: | Metallurgy Machine |
| High Light: | 190kw Rotary Kiln,329T Oxidation Pellet Production Line,190kw Metallurgy Rotary Kiln |
||
329T Weight Oxidation Pellet Production Line Metallurgy Machine

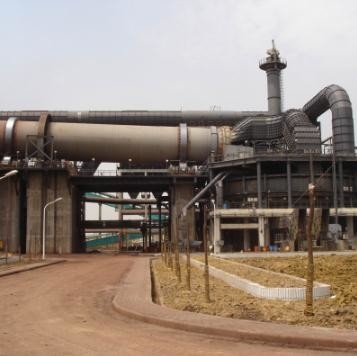

1. Case: The first 3 million ton oxidation pellet production line in China successfully reached the standard and reached production
The first stage production line of Yangzhou Taifu 2×3 million tons oxidized pellets project contracted by Luo Mine successfully reached the standard and reached production.
This project is the first 3 million ton pelletizing production line in China. The smooth production line of the first phase reached the standard and reached the production, which set a new benchmark in the complete pelleting field and laid a foundation for the company to further strengthen the complete pelleting project.
It is estimated that the production capacity of the first phase of the production line reaches 9,600 tons after 24 hours of continuous operation, exceeding the designed capacity of 9,200 tons, which is highly appraised by the owner. In this project, the main equipment of oxidizing pellet production line includes grate 5.2×57 m, rotary kiln 6.4×43 m in diameter, ring cooler 22 m in diameter, disk pelletizer 7.5 m in diameter, rotary drum dryer 4.0×30 m in diameter, 500t/h strong mixer and so on, which fully shows the company's core manufacturing and total package capacity.
2. Oxidation pellet rotary kiln product parameters of Metallurgy Machine
| No. | Model | Figure number | SPEC | Drive | Support |
Thrust Roller form |
Tyre (max) Φ×b(m)(t) |
big gear ring m Φ×(m)G(t) | Weight (t) | |||||||||||||
| Slope (%) | Rev (r/min) |
Production capacity Ten thousand tons t/a (t/h) |
Type | Machine |
Multipoint hydraulic type
|
Block number | Bearings type | |||||||||||||||
| Motor (kW ) | Reducing gear | hydraulic pressure points | Rpm kNm | |||||||||||||||||||
| 1 | Φ4.0×30m | J973A | 3.5 | 0.47～1.4 | 60 (90) |
One side mechanical drive
|
ZSN4-315-092 190KW | ZSY630 Velocity ratio:63 |
2 | roll |
Single hydraulic gear
|
Φ4.81×0.65/0.692 G=22.5 | m=28 Φ6.16×0.4 G=11.74 |
329 | ||||||||
| 2 | Φ5.0×33m | J987 | 4.36 | 0.95 max1.27 |
110 (152) | One side flexible drive | YZP400L2-6 330KW | ZSY630 Velocity ratio:40 |
One side two points | 144 | 2 | roll |
Double hydraulic gear
|
Φ6.1×0.766/0.85 G=50 | m=32 Φ7.296×0.7 G=38 |
646 | ||||||
| 3 | Φ5.0×35m | J987A | 4.25 | 0.3～1.3 | 120 (165) | One side hydraulic drive | Two sides four points | 82.5×4 | 2 | roll |
Single hydraulic gear
|
Φ6.1×0.76/0.87 G=47.7 | m=36 Φ7.343×0.6 G=37.7 |
635 | ||||||||
| 4 | Φ5.9×38m | J991 | 4.25 | 0.5～1.5 | 200 (268) |
Two sides hydraulic drive |
Two sides four points | 87.5×4 | 2 | roll |
Single hydraulic gear
|
Φ7.2×0.96/1.0 G=81.46 | m=40 Φ8.8×0.68 G=46.4 | 960 | ||||||||
| 5 | Φ6.1×40m | J992 | 4.25 | 0.45～1.35 | 220 (305) |
Two sides hydraulic drive |
2 | roll |
Single hydraulic gear
|
Φ7.4×0.96/1.0 G=83.9 | m=40 Φ9.04×0.68 G=51.5 | 988 | ||||||||||
| 6 | Φ6.4×45m | 4.25 | 0.45～1.5 | 240 (333) |
Two sides machine drive |
YP2-450L2-6 400×2 | ZSY800 velocity ratio:63 | 2 | roll |
Single hydraulic gear
|
Φ7.4×0.96/1.0 G=83.9 | m=40 Φ9.04×0.68 G=51.5 | 1084 | |||||||||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
