| Product Name: | Alumina Rotary Kiln | Type: | Metallurgy Machine Rotary Kiln |
|---|---|---|---|
| Condition: | New | Capacity: | 1400tpd |
| Slope: | 3.5-4 % | Supporting Bearing: | Roll，slide |
| Weight: | 217 T | Warranty: | 12 Months |
| High Light: | 1400 Tpd Alumina Rotary Kiln,1680 Tpd Alumina Rotary Kiln,Large Capacity Metallurgy Rotary Kiln |
||

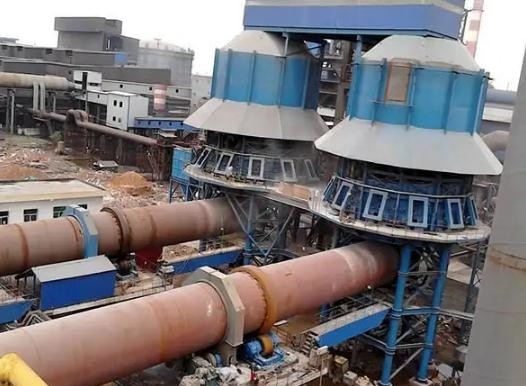

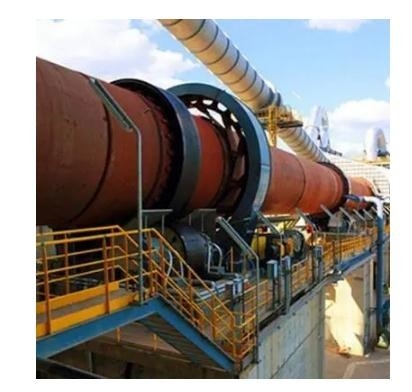

Large Capacity 1400-1680 Tpd Metallurgy Machine Alumina Rotary Kiln
1. Metallurgical chemical kiln introduction of Metallurgy Machine
Metallurgical chemical kiln is mainly used for magnetization roasting of lean iron ore in metallurgical industry steel works; Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
In the research and development and the application in the field of active lime kiln has achieved fruitful results, with advanced equipment of calcining lab and industrial simulation lab, active lime complete system technology and key equipment technology reached the international advanced level, obtained many achievements of science and technology and patent technology, in various sectors such as steel, alumina, power plant desulfurization has been applied.
2. Refractory rotary kiln product parameters of Metallurgy Machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ2.5×60 | (912) | 0.3～1.0 | 4 | 240 | 55 | Machine | roll | 217 | |||||
| 2 | Φ3/3.6×60 | (4 929-2) | 0.7～1.35 | 3.5 | 360 | 80 | Machine | slide | 310 | |||||
3. Alumina rotary kiln product parameters of Metallurgy Machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ4.5×90 | SBYH206.0 | 0.857～2.57 | 3.5 | 1400 | 2×200 | hydraulic pressure | slide | 903.1 | twin drive | ||||
| 2 | Φ4.5×100 | SBYH241.0G | 0.857～2.57 | 3.5 | 1510 | 2×200 | hydraulic pressure | slide | 884 | twin drive | ||||
| 3 | Φ4.5×110 | SBYH56.0 | 0.857～2.57 | 4 | 1680 | 2×200 | hydraulic pressure | slide | 912 | twin drive | ||||
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
