| Name: | Titanium Dioxide Rotary Kiln | Used In: | Coating, Plastic, Ink |
|---|---|---|---|
| Model: | Metallurgical Chemical Kiln | Condition: | New |
| Power: | 30k-55kw | Feature: | Hydraulic Pressure,Excellent Sealing Performance |
| Classification: | Metallurgy Machine | Warranty: | 12 Months |
| High Light: | 55kw Metallurgy Rotary Kiln,Metallurgy Rotary Kiln Titanium Dioxide,Hydraulic Metallurgy Rotary Kiln |
||

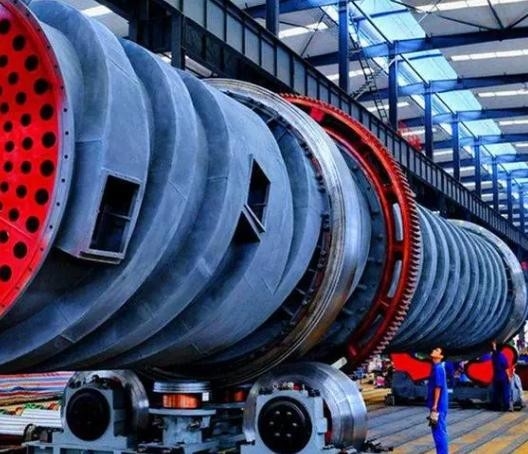

Excellent Sealing Performance Metallurgy Machine Titanium Dioxide Rotary Kiln
1. Metallurgical chemical kiln introduction of Metallurgy Machine
Metallurgical chemical kiln is mainly used for magnetization roasting of lean iron ore in metallurgical industry steel works; Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
In the research and development and the application in the field of active lime kiln has achieved fruitful results, with advanced equipment of calcining lab and industrial simulation lab, active lime complete system technology and key equipment technology reached the international advanced level, obtained many achievements of science and technology and patent technology, in various sectors such as steel, alumina, power plant desulfurization has been applied.
2. Titanium dioxide rotary kiln Product parameters of Metallurgy Machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor | Thrust | supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | iVelocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ2.4×38 | (T929) | 0.2 ～0.6 | 2.2 | 30 | Velocity ratio | 30 | Machine | roll | 150 | ||||
| 2 | Φ2.8×53 | J920 | 0.1 ～0.3 | 4 | 50 | 22 | hydraulic pressure | roll | 271 | |||||
| 3 | Φ3.2×55 | J931A | 0.1 ～0.3 | 4 | 67 | 55 | hydraulic pressure | roll | 275.4 | |||||
3. Titanium dioxide rotary kiln Application Scope of Metallurgy Machine
Coating, plastic, ink, paper, rubber, chemical fiber, electronics, ceramics, enamel, welding rod, alloy, glass and other fields.
4. Working principle of Titanium dioxide rotary kiln metallurgy machine
The filter cake of filtered titania hydrolysate is input to the end of the rotary kiln of titanium dioxide with a certain incline and slow rotation. At the same time, the combustion mixing chamber in the direction of the kiln head blows clean flame and hot air into the kiln to dehydrate and calcinate the filter cake. After dehydration and calcination at a high temperature of more than 1000℃, the hydrolyzed titanium dioxide filter cake with the help of tilted titanium dioxide rotary kiln body, both along the circular direction and along the axial direction (from high-end to low-end), constantly complete the process of dehydration and calcination. Finally, through the double hydraulic flip plate discharge valve under the kiln head cover into the cooling machine, the material after cooling and screening is titanium dioxide finished products.
