| Length(mm): | 9000mm | Model: | WBQ / WBL / WBZ Series |
|---|---|---|---|
| Type: | WBZ160-9 | Brand: | ZTIC |
| MOQ: | 1 SET | Condition: | New |
| Warranty: | 12 Months | Classification: | Conveying Hoisting Machine |
| High Light: | Ore Feeding Conveying Hoisting Machine,9000mm Apron Feeder |
||

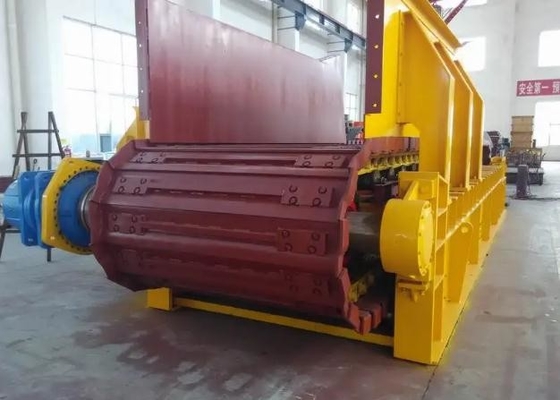

Ore Feeding Conveying Hoisting Machine WBQ series Apron Feeder
1. Performance characteristics of plate feeder(Apron Feeder):
Traction chain adopts long pitch plate pin roller chain, the chain parts are made of alloy steel material, and after scientific heat treatment, wear-resisting performance is good, high tensile strength, long service life, the use of stamping tank, with transverse reinforcement in the middle, good rigidity of the tank, large bearing capacity. Arc lap of tank bottom plate to prevent material leakage. Drive motor adopts speed regulating motor, running speed is adjustable, in order to choose more reasonable throughput. Decorate form diversiform, but level, incline to decorate, still have a variety of level, incline combination to decorate. The single-machine conveying length is less than or equal to 60m, and the lifting height is less than or equal to 30m. Maximum dip Angle 0-75 degrees. The temperature of the material is lower than or equal to 600 ° C. Model can be divided into light plate feeder, medium plate feeder, heavy plate feeder.
2. Plate Feeder(Apron Feeder) Of Conveying Hoisting Machine Parameters:
(1)The technical data of the light duty Plate feeder(Apron Feeder):
| Model | width(mm) | Length(mm) | Speed(m3/h) | Feed Size(m/s) | Capacity(mm) |
| WBQ500-2 | 500 | 2000 | 7-88 | 0.05-0.4 | 180 |
| WBQ500-3 | 3000 | ||||
| WBQ500-4.5 | 4500 | ||||
| WBQ500-6 | 6000 | ||||
| WBQ500-9 | 9000 | ||||
| WBQ500-12 | 12000 | ||||
| WBQ630-3 | 630 | 3000 | 11-175 | 0.04-0.4 | 200 |
| WBQ630-4.5 | 4500 | ||||
| WBQ630-6 | 6000 | ||||
| WBQ630-9 | 9000 | ||||
| WBQ630-12 | 12000 | ||||
| WBQF630-15 | 15000 | ||||
| WBQ800-3 | 800 | 3000 | 19-308 | 0.04-0.4 | 350 |
| WBQ800-4.5 | 4500 | ||||
| WBQ800-6 | 6000 | ||||
| WBQ800-9 | 9000 | ||||
| WBQ800-12 | 12000 | ||||
| WBQ800-15 | 15000 | ||||
| WBQ800-18 | 18000 |
(2)The technical parameters of heavy duty Plate feeder(Apron Feeder):
| Model | width(mm) | Length(mm) | Speed(m/s) | Feed Size(mm) | Capacity(t/h) |
| WBZ160-9 | 1600 | 9000 | 0.01-0.07 | ≦1000 | 27-270 |
| WBZ180-8 | 1800 | 8000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-8.75 | 1800 | 8750 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-9 | 1800 | 9000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-9.8 | 1800 | 9800 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-10 | 1800 | 10000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ200-9.8 | 2000 | 9800 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ220-10 | 1800 | 10000 | 0.01-0.07 | ≦1200 | ≦700 |
| WBZ230-10 | 2300 | 10000 | 0.01-0.07 | ≦1500 | ≦800 |
| WBZ240-10 | 2400 | 10000 | 0.02-0.06 | ≦1600 | ≦850 |
| WBZ250-11.5 | 2500 | 11500 | 0.01-0.07 | ≦1800 |

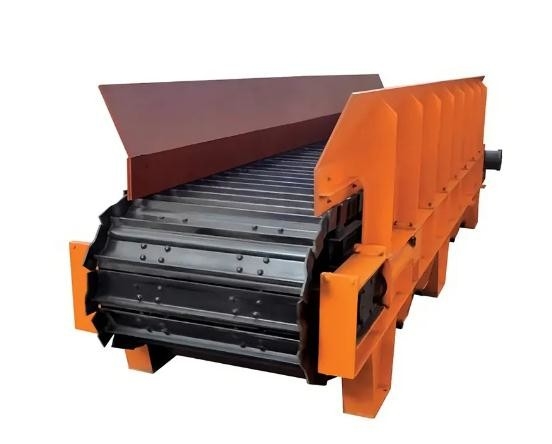

Ore Feeding Conveying Hoisting Machine WBQ series Apron Feeder
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
