Product Details:
Payment & Shipping Terms:
|
| Name: | Plate Feeder Apron Feeder | Feeding Size Mm: | ≤1800 |
|---|---|---|---|
| Production: | 850 T/h | Model: | WBQ / WBL / WBZ Series |
| Type: | Conveying Hoisting Machine | Color: | Custom |
| MOQ: | 1 SET | Warranty: | 12 Months |
| High Light: | 1800mm Size Plate Feeder,1800mm Apron Feeder,1800mm Apron Plate Feeder |
||

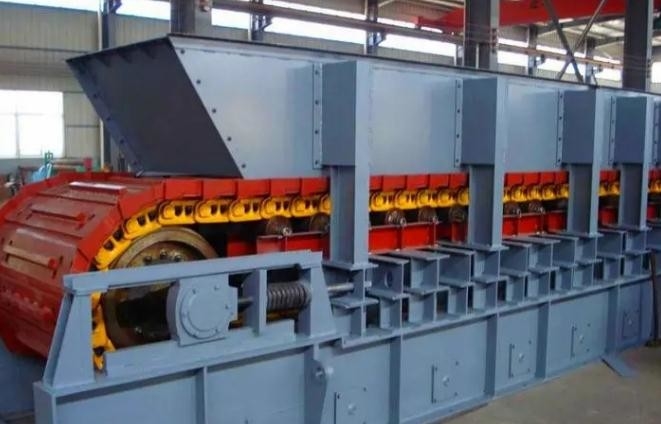

1800mm Feed Size Plate Feeder Conveying Hoisting Machine Apron Feeder
1. Performance characteristics of plate feeder(Apron Feeder):
Traction chain adopts long pitch plate pin roller chain, the chain parts are made of alloy steel material, and after scientific heat treatment, wear-resisting performance is good, high tensile strength, long service life, the use of stamping tank, with transverse reinforcement in the middle, good rigidity of the tank, large bearing capacity. Arc lap of tank bottom plate to prevent material leakage. Drive motor adopts speed regulating motor, running speed is adjustable, in order to choose more reasonable throughput. Decorate form diversiform, but level, incline to decorate, still have a variety of level, incline combination to decorate. The single-machine conveying length is less than or equal to 60m, and the lifting height is less than or equal to 30m. Maximum dip Angle 0-75 degrees. The temperature of the material is lower than or equal to 600 ° C. Model can be divided into light plate feeder, medium plate feeder, heavy plate feeder.
2. Plate Feeder(Apron Feeder) Of Conveying Hoisting Machine Parameters:
(1)The technical parameters of medium duty Plate feeder(Apron Feeder):
| Model | width(mm) | Length(mm) | Speed(m/s) | Feed Size(mm) | Capacity(t/h) |
| WBL100-6 | 1000 | 6000 | 0.01-0.1 | ≦500 | 80-160 |
| WBL100-12 | 1000 | 12000 | 0.05-0.1 | ≦500 | 60-130 |
| WBL120-4 | 1200 | 4000 | 0.014-0.08 | ≦600 | 45-150 |
| WBL120-6 | 1200 | 6000 | 0.01-0.1 | ≦600 | 80-160 |
| WBL120-11 | 1200 | 11000 | 0.01-0.1 | ≦600 | 50-100 |
| WBL120-19 | 1200 | 19000 | 0.014-0.09 | ≦600 | 45-150 |
| WBL125-6 | 1250 | 6000 | 0.014-0.08 | ≦700 | 45-150 |
| WBL125-12 | 1250 | 12000 | 0.014-0.08 | ≦700 | 45-150 |
| WBL140-8 | 1400 | 8000 | 0.017-0.17 | ≦900 | 100-200 |
| WBL140-16 | 1400 | 16000 | 0.006-0.06 | ≦900 | 20-200 |
| WBL150-5 | 1500 | 5000 | 0.014-0.08 | ≦700 | 85-288 |
| WBL150-15 | 1500 | 15000 | 0.006-0.06 | ≦700 | 20-200 |
| WBL150-10.5 | 1500 | 10500 | 0.006-0.06 | ≦700 | 20-200 |
| WBL160-6 | 1600 | 6000 | 0.017-0.17 | ≦800 | 61-610 |
| WBL160-9 | 1600 | 9000 | 0.076 | ≦800 | 180 |
| WBL180-8 | 1800 | 8000 | 0.022-0.046 | ≦800 | 100-1000 |
| WBL180-12 | 1800 | 12000 | 0.05 | ≦800 | 360 |
| WBL220-10 | 2200 | 10000 | 0.018-0.055 | ≦1500 | 220-680 |
| WBL240-10 | 2400 | 10000 | 0.018-0.055 | ≦1500 | 220-680 |
(2)The technical parameters of heavy duty Plate feeder(Apron Feeder):
| Model | width(mm) | Length(mm) | Speed(m/s) | Feed Size(mm) | Capacity(t/h) |
| WBZ160-9 | 1600 | 9000 | 0.01-0.07 | ≦1000 | 27-270 |
| WBZ180-8 | 1800 | 8000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-8.75 | 1800 | 8750 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-9 | 1800 | 9000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-9.8 | 1800 | 9800 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ180-10 | 1800 | 10000 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ200-9.8 | 2000 | 9800 | 0.01-0.07 | ≦1000 | ≦500 |
| WBZ220-10 | 1800 | 10000 | 0.01-0.07 | ≦1200 | ≦700 |
| WBZ230-10 | 2300 | 10000 | 0.01-0.07 | ≦1500 | ≦800 |
| WBZ240-10 | 2400 | 10000 | 0.02-0.06 | ≦1600 | ≦850 |
| WBZ250-11.5 | 2500 | 11500 | 0.01-0.07 | ≦1800 |

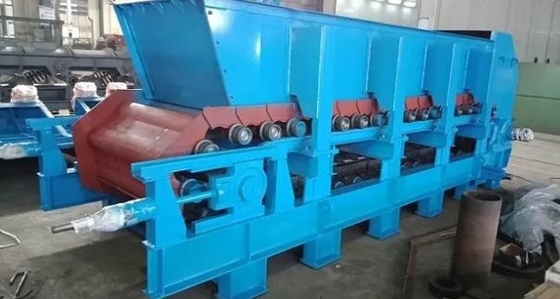

1800mm Feed Size Plate Feeder Conveying Hoisting Machine Apron Feeder
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
