Product Details:
Payment & Shipping Terms:
|
| Features: | Less Energy Consumption | Condition: | New |
|---|---|---|---|
| Product: | Chain Conveyor | Widely Used In: | Mining, Metallurgy, Chemical, Casting, Building Materials |
| Conveying Speed: | 1.25--2 M/s | Keyword: | Mining Machine，Conveyor |
| Color: | Custom | Type: | Conveying Hoisting Machine |
| High Light: | Chain Conveying Hoisting Machine,Mining Conveying Hoisting Machine |
||

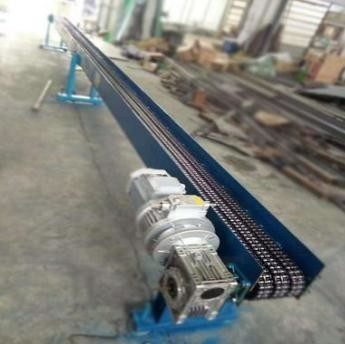

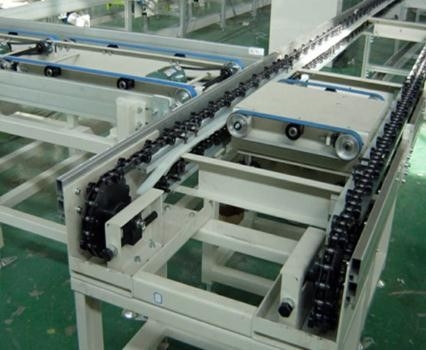

Chain Conveyor Conveying Hoisting Machine Widely Used In Mining, Chemical, Casting
1. Chain conveyor Of Conveying Hoisting Machine product description
Widely used in mining, metallurgy, chemical, casting, building materials and other industries of transportation and production lines, hydropower station construction sites and ports and other production departments.
Synchronous chain conveyor two chains synchronous movement, suitable for all kinds of assembly conveyor line belt conveyor because of its large volume, long distance, small energy consumption, welcomed by users, but because of its plane can not bend, so that the scope of adaptation is limited. Coal mine due to the change of geological conditions, transport roadway must be bent in case of faults, forcing the long distance transport system into broken lines, had to use a number of belt conveyor (or scraper), the composition of multi-section broken line transport, complete the transport task. For open-pit mining of coal mines, iron ore and other transport systems, because with the stope changes, the belt can not be a straight line, so we have to use expensive car transport. The latest generation of lateral mobile bendable belt conveyor has a minimum bend radius of 4.5 m. A bendable belt conveyor can replace several belt conveyor and scraper conveyor to realize the total transport of a belt conveyor in underground mining and open-pit stope. Bending Angle and radius of curvature of bendable belt conveyor.
2. Product parameters of chain conveyor Of Conveying Hoisting Machine
| Belt width(mm) | Conveying length(m) Power (Kw) | Conveying speed(m/S) | Conveying capacity (t/h) | ||
| 400 | ≤12/2.2 | 12∽20/2.2∽4 | 20∽25/3.5∽7.5 | 1.25∽2.0 | 30∽60 |
| 500 | ≤12/3 | 12∽20/3∽5.5 | 30∽30/5.5∽7.5 | 1.25∽2.0 | 40∽80 |
| 650 | ≤12/4 | 12∽20/4∽5.5 | 20∽30/5.5∽11 | 1.25∽2.0 | 80∽120 |
| 800 | ≤6/4 | 10∽15/4∽5.5 | 15∽30/5.5∽15 | 1.25∽2.0 | 120∽200 |
| 1000 | ≤10/5.5 | 10∽20/5.5∽11 | 20∽40/11∽22 | 1.25∽2.0 | 200∽320 |
| 1200 | ≤10/7.5 | 10∽20/7.5∽15 | 20∽40/15∽30 | 1.25∽2.0 | 320∽480 |
Chain Conveyor Conveying Hoisting Machine Widely Used In Mining, Chemical, Casting
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
